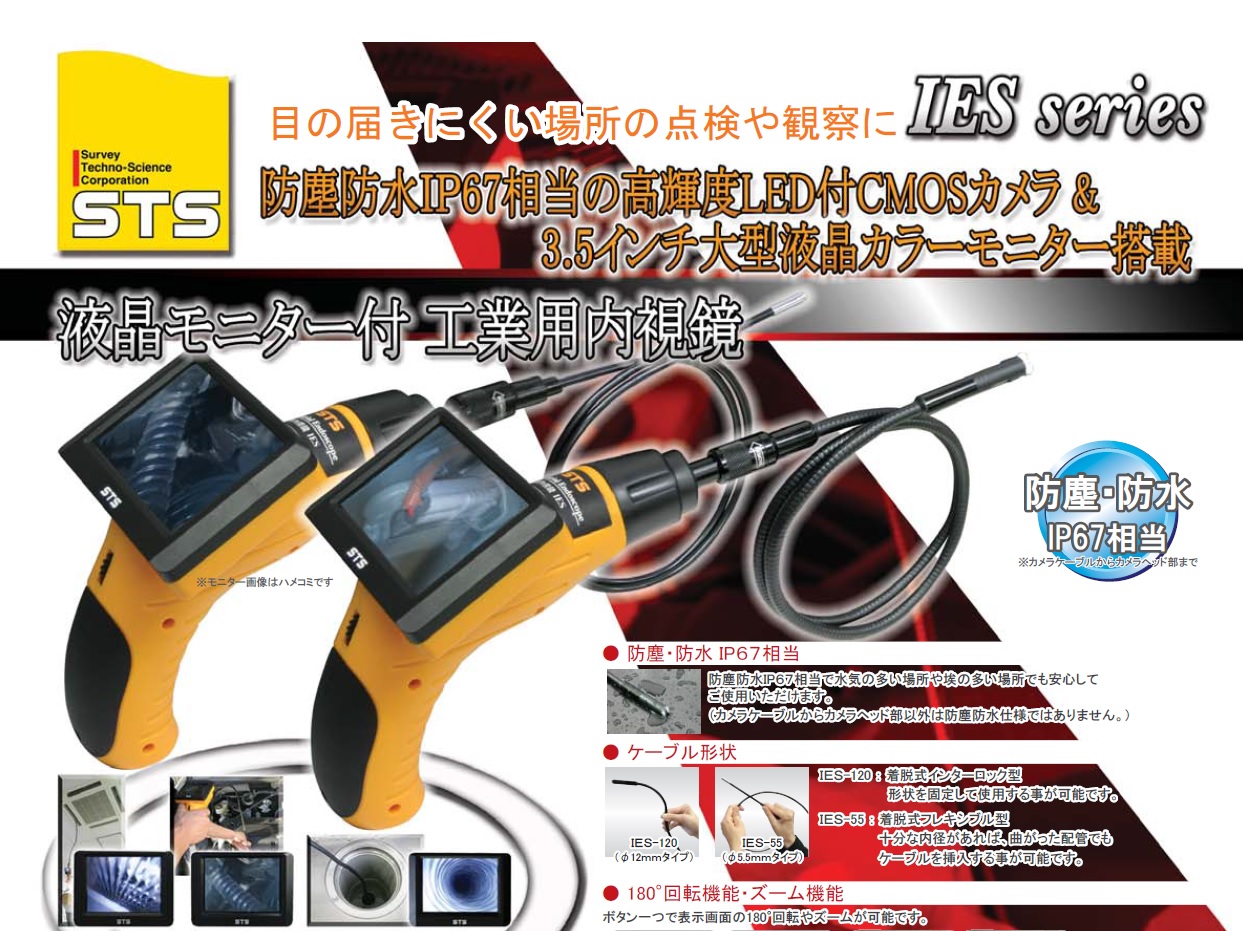

STS Industrial Endoscope IES-Series

Code : IES-120, IES-55
Brand : STS


  • For pipe fitting and inspection of ceiling
  • For inspection of engine for automobile parts, etc.
  • For inspection of small diameter pipe and inside of fabricated parts
  • For inspection of circuit board and cable wiring after operation

 ?Above monitoring displays show actual images.

?Water and dustproof are equivalent to IP67

It will not be bothered even in wet, humid or dusty places thanks to water and dustproof equivalent to IP67.?It is not water and dustproof except for camera cable to camera head.?



?Cable shape
???????

Detachable interrock type

Availavle to use it over fixing the shape.

??????
Detachable flexible type

Available to insert the cable in a pipe if there is enought inner diameter even the pipe curves.

 ?180°Rotating function?Zooming function

Only with pushing a button, it enables to make the indication display rotate 180 ° and zoom.

 Available to adjust light volume

Due to hyper-brightness LED, it can keep the blightness in the dark place.

In addition, the blightness can also be adjusted with the dial.




?Tip tool(only for ????????

As its tip tool, a side mirror, magnet and hook are provided as its standard.

?Only for IES-120 of φ12?? type?



Option
??? Camera Cable ?φ12mm??CC12-1??Standard accessories of IES-120??? Camera Cable ?φ12mm??CC12-3???? Camera Cable ?φ12mm??CC12-5???? Camera Cable ?φ5.5mm??CC55-1??Standard accessories of IES-55??? Camera Cable ?φ5.5mm??CC55-3??Tip Magnet ?for φ12mm??TIP-12MG??Standard accessories of IES-120?Tip Hook ?for φ12mm??TIP-12FK??Standard accessories of IES-120?Tip Side Mirror?for φ12mm??TIP-12SM??Standard accessories of IES-120
?Tip Side Mirror?for φ5.5mm??TIP-55SM?
?Tip Ball?for φ5.5mm??TIP-55SB??This helps to insert the instrument into pipe more smoothly.
?φ10???

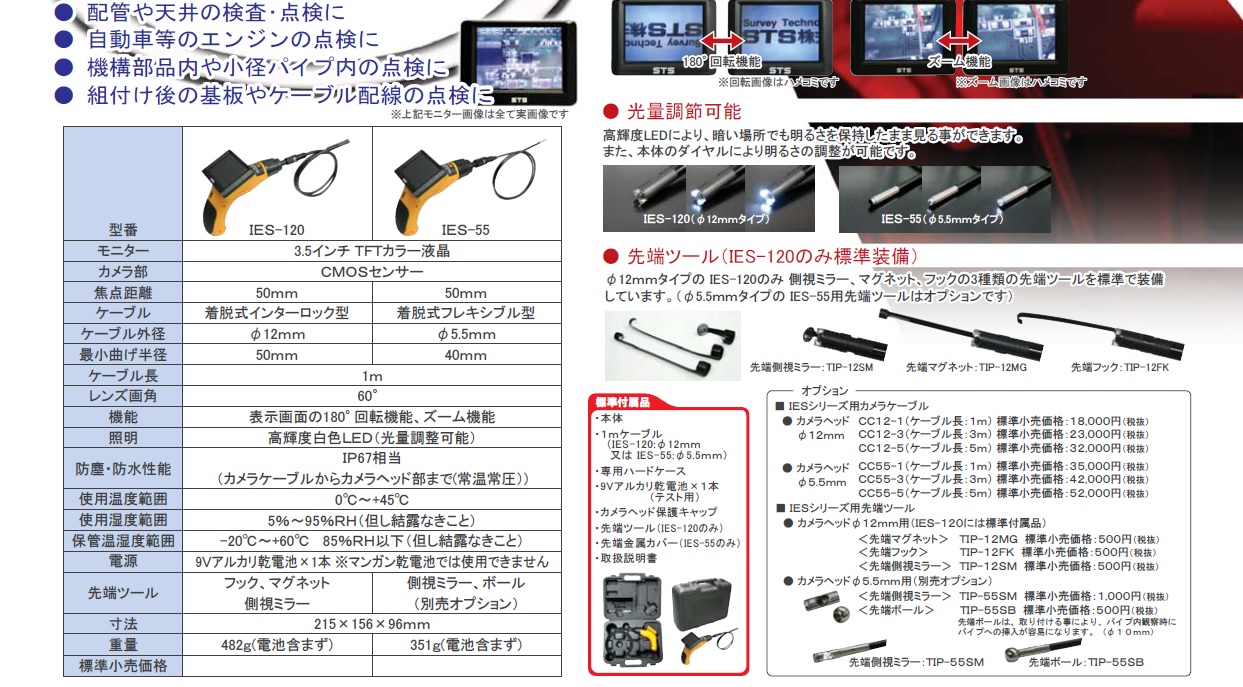

Model IES-120 IES-55
Monitor 3.5 inch TFT color LCD
Camera CMOS sensor
Focusing distance 50mm 10mm
Cable Detachable interrock type Detachable flexible type
Cable outside diameter φ12mm φ5.5mm
Minimum curving radius 50mm 40mm
Cable length 1m
Lens angle 60°
Function Rotating function(180°of indication display) and zooming function
Lighting Hyper-brightness white color LED?Light volume adjustment is available.)
Water and dustproof Equivalent to IP67??From camera cable to camera head at normal temperature and pressure.
Operational temperature range 0??45?
Operational humidity range 5??95?RH?Without dew?
Storing temperature and humidity range -20??60??under 85?RH?without dew?
Power supply 9V Alkaline dry cell battery×1pc
Tip tool A hook, magnet and side mirror Side mirror and ball(Option)
Size 215×156×96mm
Weight 482g 351g
