Kasuga - Kasuga Static Eliminator Monitor

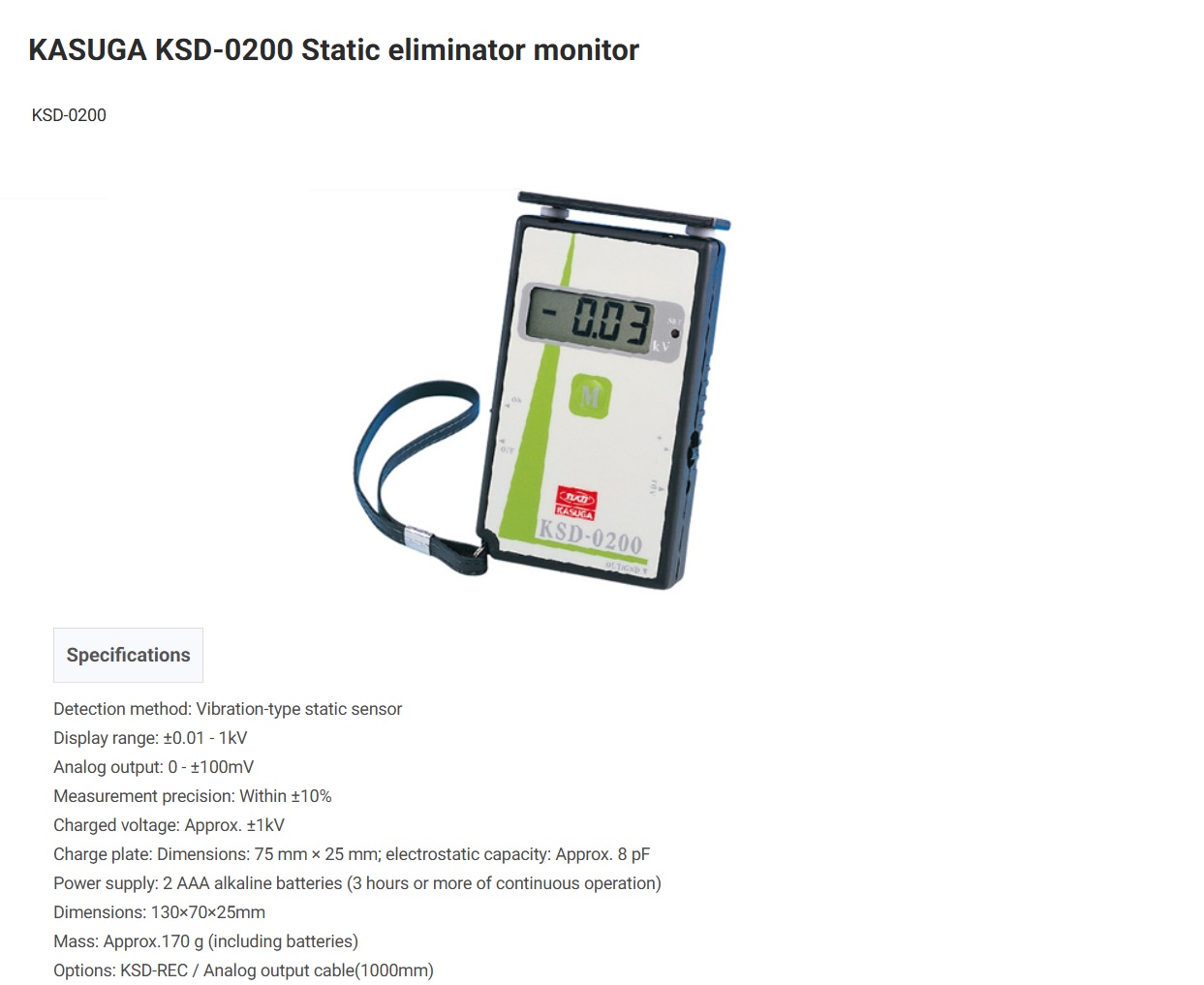

Kasuga Static Eliminator Monitor

Code : KSD-0200
Brand : Kasuga


Kasuga Static Eliminator Monitor

KSD-0200


Features

  • Has a built-in high-voltage AC power supply device for charging. This allows charging of the charge plate on site for easy checking of the ionizer’s performance.
  • Permits switching between polarities, allowing checking of the attenuation of both positive and negative electrostatic charges.
  • The compact dimensions allow this monitor to be used in narrow spaces of production sites.

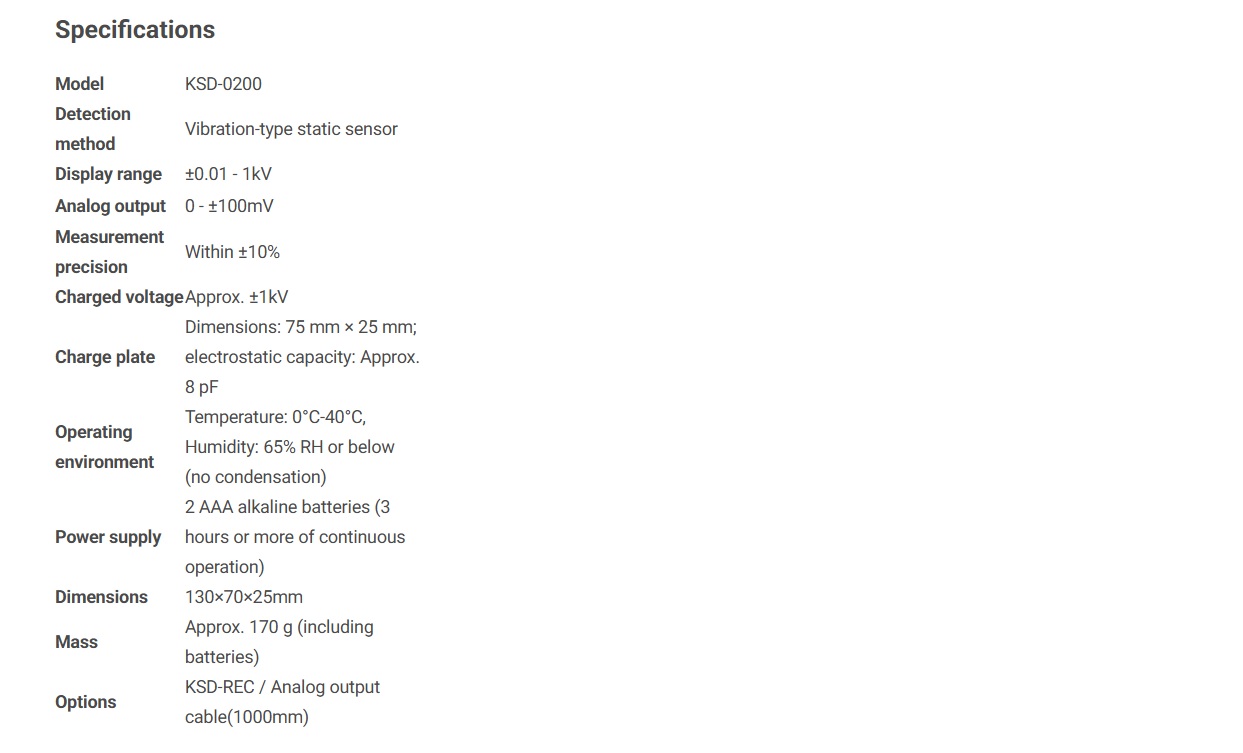

Specifications

Model KSD-0200
Detection method Vibration-type static sensor
Display range ±0.01 - 1kV
Analog output 0 - ±100mV
Measurement precision Within ±10%
Charged voltage Approx. ±1kV
Charge plate Dimensions: 75 mm × 25 mm; electrostatic capacity: Approx. 8 pF
Operating environment Temperature: 0°C-40°C, Humidity: 65% RH or below (no condensation)
Power supply 2 AAA alkaline batteries (3 hours or more of continuous operation)
Dimensions 130×70×25mm
Mass Approx. 170 g (including batteries)
Options Analog output cable
