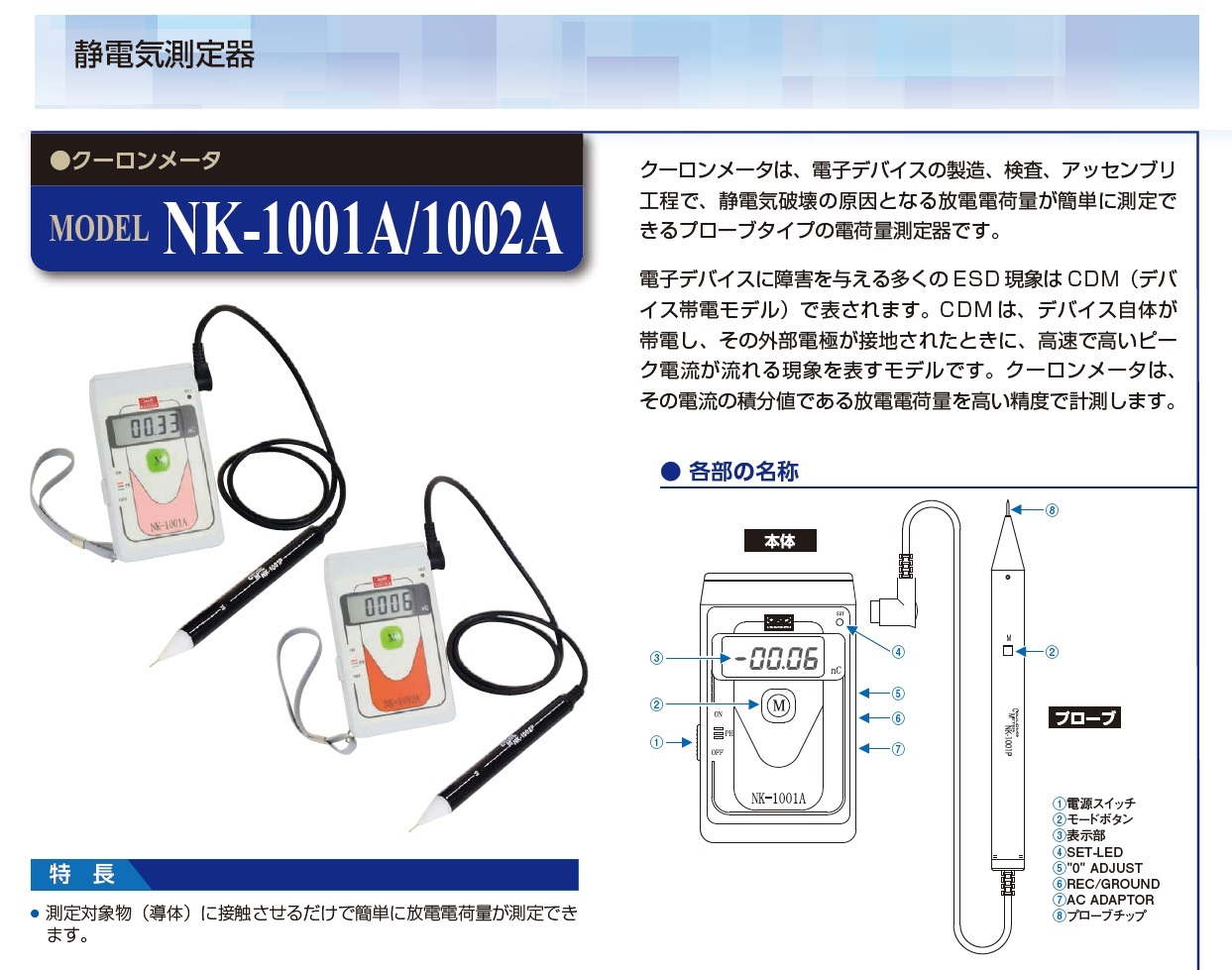

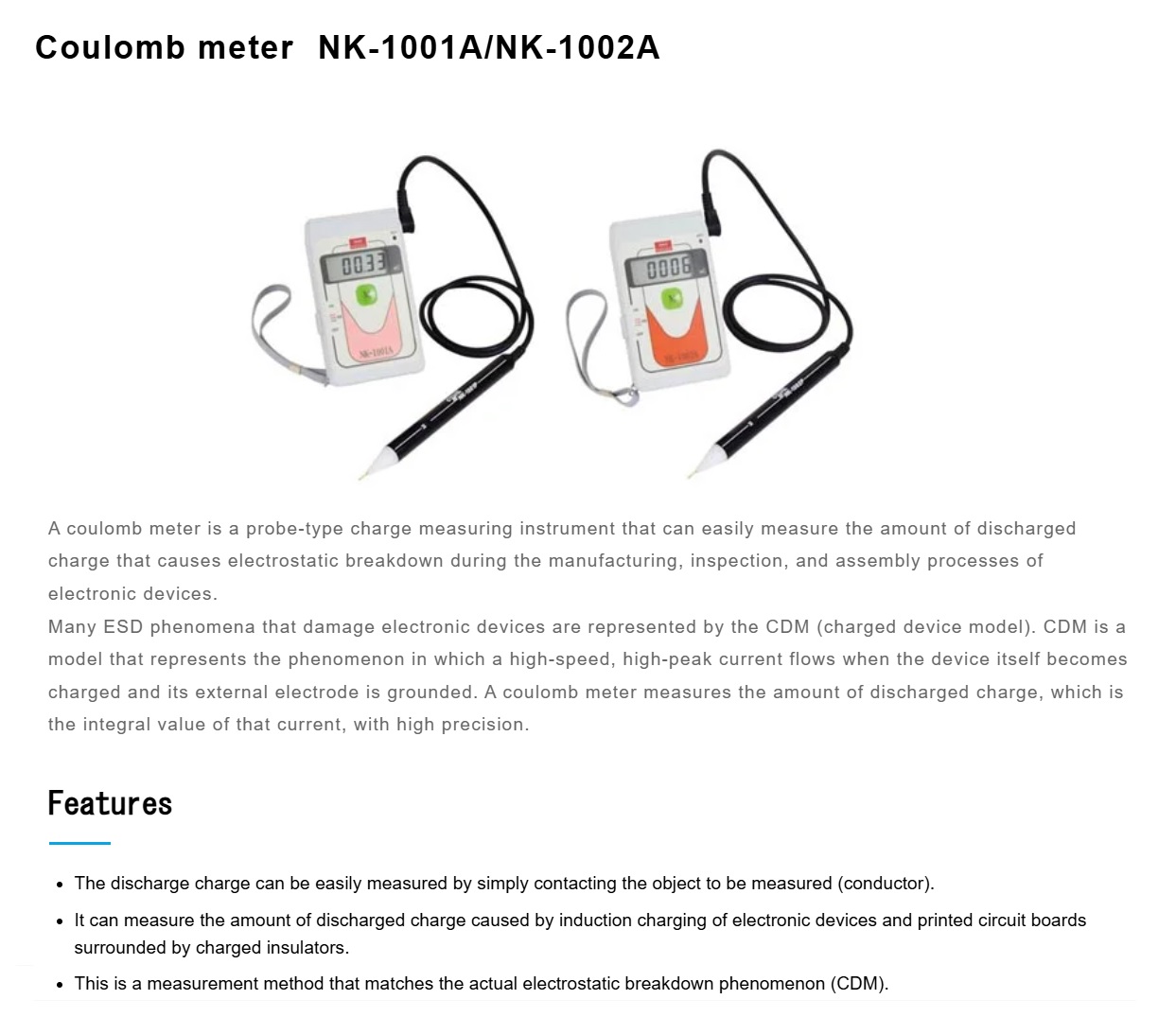

Kasuga Coulomb Meter

Code : NK-1001, NK-1002
Brand : Kasuga


Kasuga Coulomb Meter

NK-1001, NK-1002


Features

  • The amount of electrostatic discharge is easily measured by having the Coulomb meter contact the object of measurement (conductor).
  • Capable of measuring the amount of ESD on electronic devices or printed wiring boards surrounded by charged insulators, which is caused by induction charging.

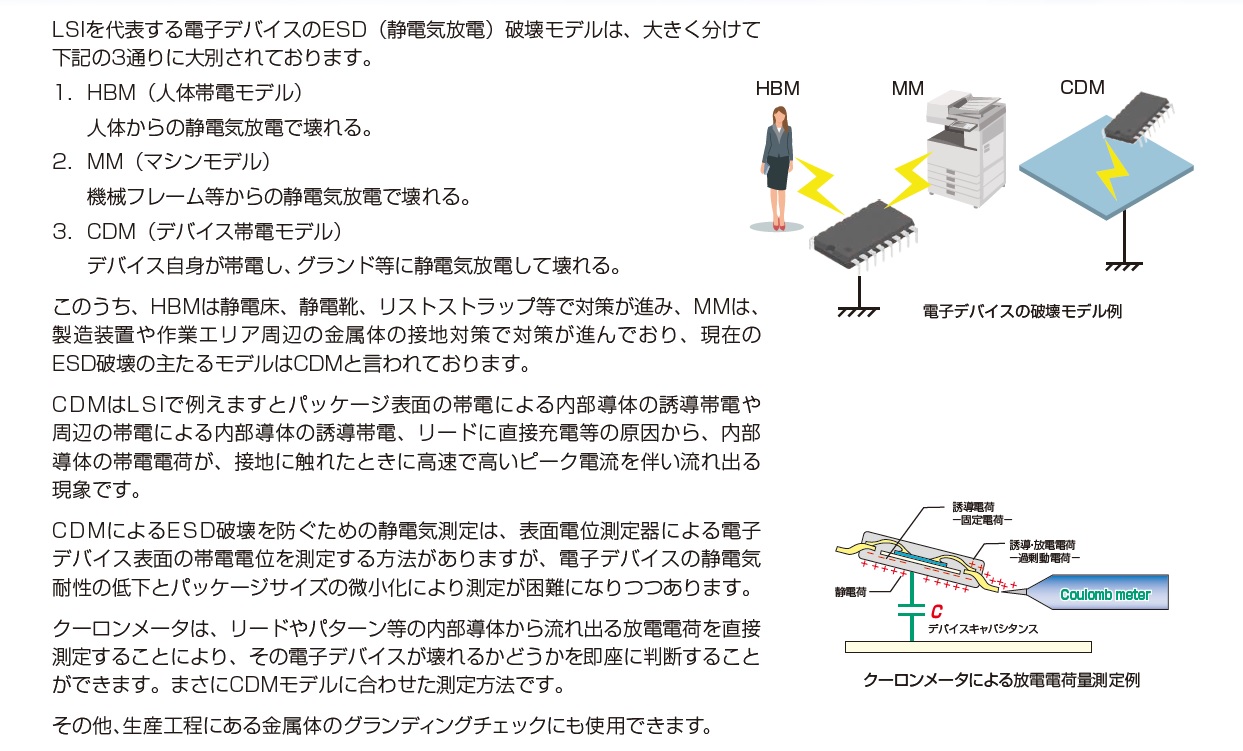

  • The measurement method is based on the actual phenomenon of electrostatic destruction (CDM).
  • Since the unit contacts the object of measurement it is virtually free from errors caused by differences among measurers.
  • Permits switching between two modes: peak hold measurement and continuous measurement.
  • The optional conductive probe tip lets the unit be used safely for sensitive products.
  • The optional AC adapter enables long and continuous usage of the meter in evaluations, experiments, etc.

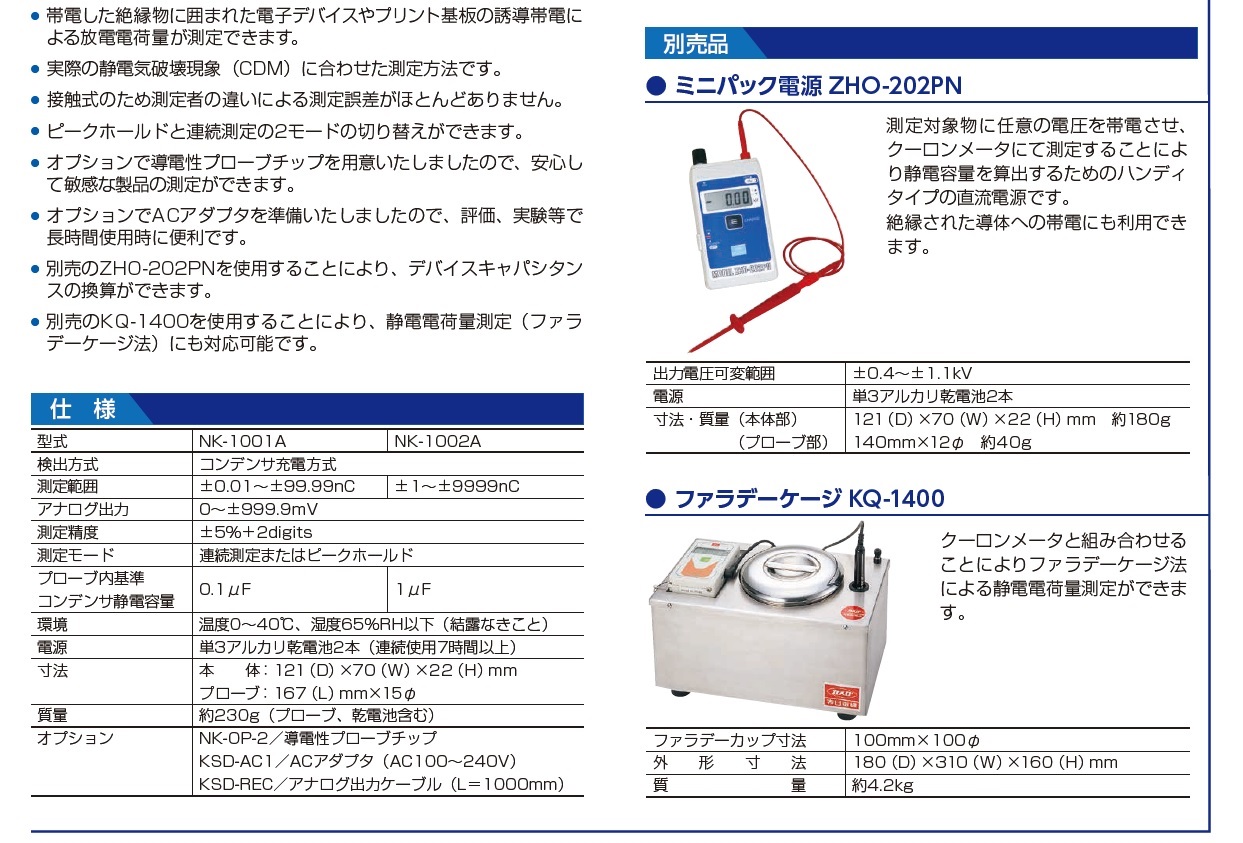

  • Use of the separately sold ZHO-200PN allows conversion of the device capacitance.
  • Use of the separately sold KQ-1400 makes the unit capable of measuring the amount of electrostatic charge (using the Faraday cage method).

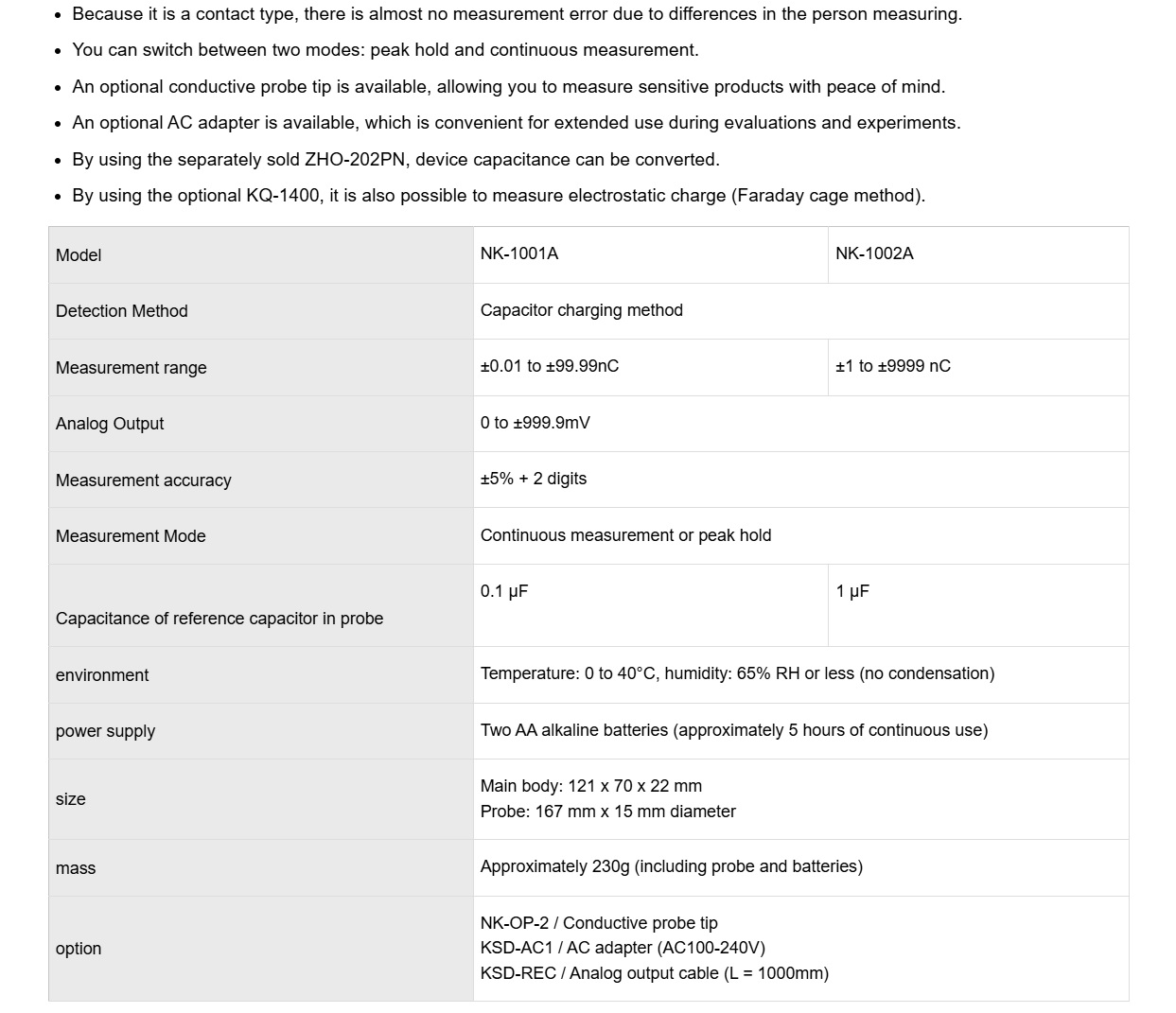

Specifications

Model NK-1001 NK-1002
Detection method Capacitor charging
Measuring ranges ±0.01 - ±99.99nC ±1 - ±9999nC
Analog output 0 - ±999.9mV
Measurement precision Within ±5% + 2 counts
Measurement mode Continuous/ Peak hold
Standard amount of electrostatic on capacitor in probe 0.1μF 1μF
Operating environment Temperature: 0°C-40°C,Humidity: 65% RH or below (no condensation)
Power supply 2 AAA alkaline batteries (4 hours or more of continuous operation)
Dimensions Main unit: 117×70×24mm
Probe: 167mm×15φ
Mass Approx. 230g(including probe and batteries)
Options Conductive probe tip
AC power supply adapter (AC100-240V)
Analog output cable (length = 1,000 mm)
