HOZAN HOT AIR STATION

Code : HS-603, HS-605, HS-32, HS-611, HS-612, HS-613, HS-614, HS-642, HS-631, HS-615, HS-616, HS-617, HS-618, HS-643, HS-632, HS-619, HS-621, HS-622, HS-623, HS-644, HS-634, HS-624, HS-625, HS-626, HS-627, HS-628, HS-629, HS-625
Brand : Hozan

HOZAN HOT AIR STATION

HS-603, HS-605, HS-32, HS-611, HS-612, HS-613, HS-614, HS-642, HS-631, HS-615, HS-616, HS-617, HS-618, HS-643, HS-632, HS-619, HS-621, HS-622, HS-623, HS-644, HS-634, HS-624, HS-625, HS-626, HS-627, HS-628, HS-629, HS-625

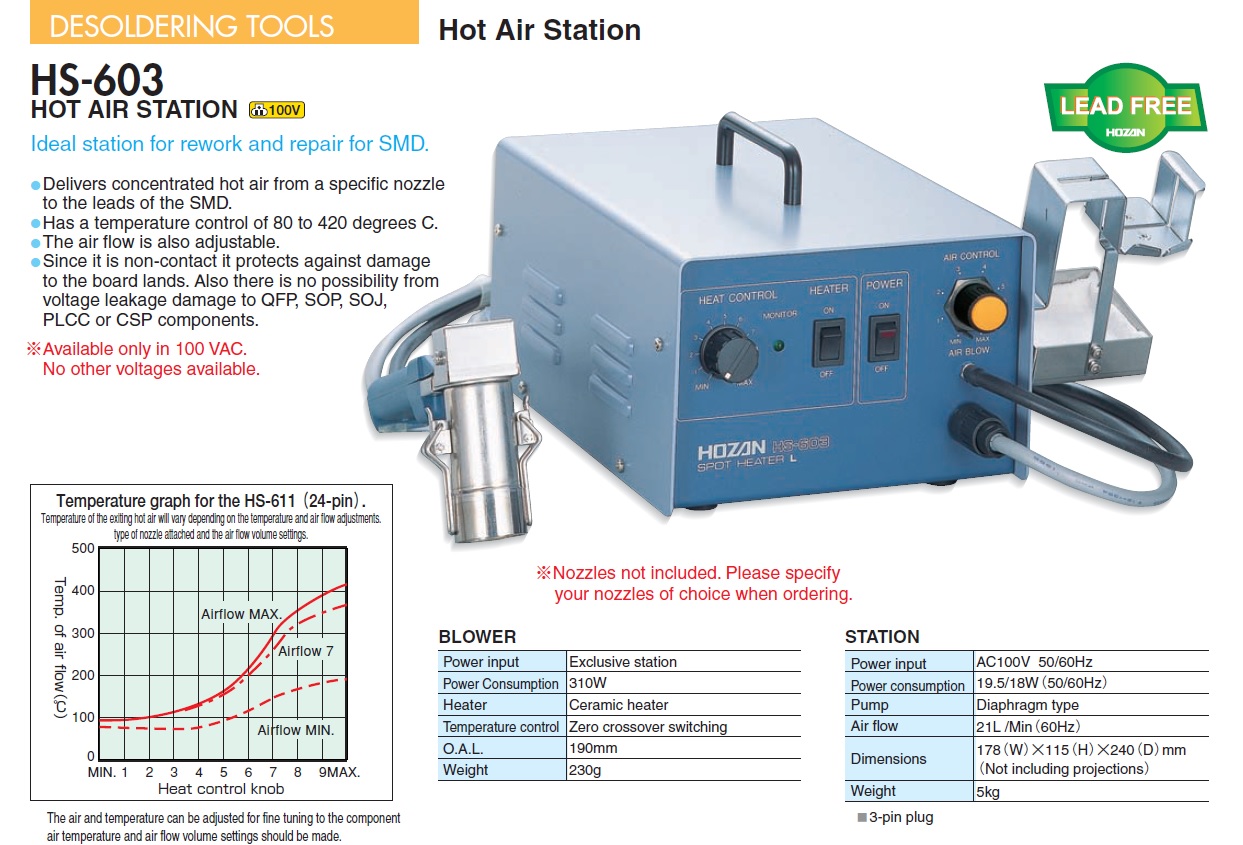

HS-603 HOT AIR STATION

Custom-order CSP nozzle used High-precision SMD nozzle used Use a nozzle for PLCC

Rated voltage / frequency 100 VAC, 50 / 60Hz Power consumption 330 W Heater Ceramic heater Setting temperature 80 to 420°C (with HS-611 mounted) Pump Diaphragm type *1 Max. airflow rate 21L/minute (60 Hz) External dimensions (station) 178 (W) × 112 (H) × 189 (D) mm (not including projecting part) Blower overall length 190 mm (not including air hose) Weight Station 5 kg Soldering iron 230g   3-pin plug type. *1. A diaphragm pump features a format in which air intake / exhaust occurs by the vibration of a rubber membrane valve. Temperature characteristics with HS-611 (24-pin) The hot air temperature varies according to the nozzle type mounted, and the air volume setting. The hot air temperature and airflow can be fine-adjusted to the optimal level for the component. nWith airflow control

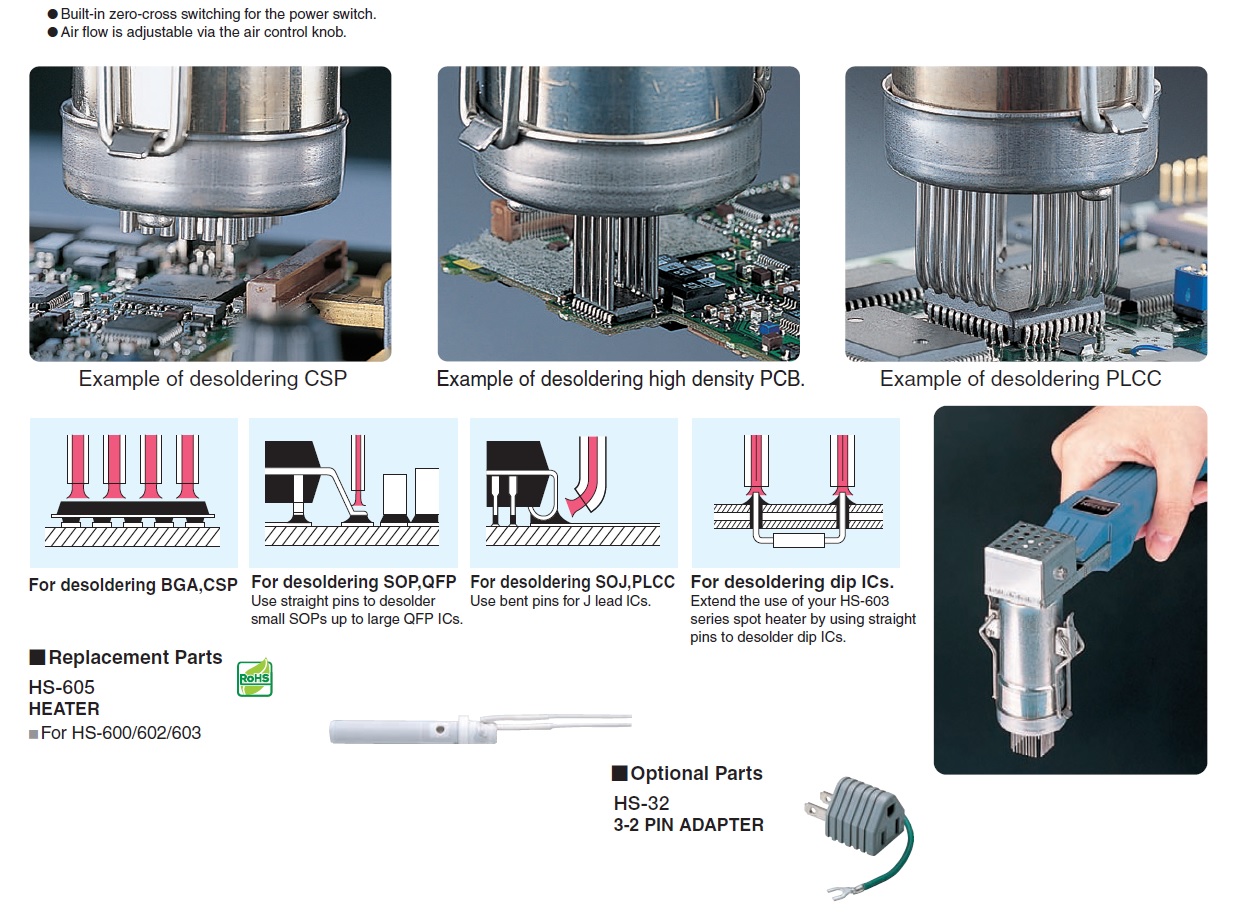

BGA (CSP) desoldering (Custom-order CSP nozzle used) Desoldering SOP, QFP, etc. (small pin & straight pin used) Desoldering SOJ & PLCC, etc. (bent pin used) Desoldering insertion-type SMD components (chip IC) (straight pins used)

Replacement part Optional part HS-605 HEATER   For spot heater L   For HS-600 / 602 / 603   HS-32 3-2 PIN ADAPTER

Optional parts NOZZLES     Nozzle selection method For SOP / QFP For PLCC For BGA (CSP) Select a nozzle with a pin inner width that does not make contact with the device's lead shoulders. *(C < A) Select a nozzle with a pin inner width that does not make contact with the device leads. (B < A) Select a nozzle with a pin outer width that matches the device's outer width (A = B) . * If there is risk of heating an adjacent chip part when removing a device from a PCB with a narrow component pitch, select a width that permits heating from above the lead shoulder. � Values denote the pin inner diameter (mmf) x the number of pins.   Pin length: 16 mm   For HS-600 / 602 / 603 For SOP, For QFP, For DIP, etc. For SOJ, For PLCC Standard pin specs. Small pin specs. Bent pin specs. HS-611  1.2mm ¢ × 24 pin HS-612 1.2mm ¢ × 5 pin HS-613  1.2mm ¢ × 7 pin HS-614 1.2mm ¢ × 12 pin HS-642  0.7mm ¢ × 10 pin HS-631  1.2mm ¢B × 36 pin HS-615  1.2mm ¢ × 28 pin HS-616  1.2mm ¢ × 28 pin HS-617 1.3mm ¢ × 2 pin HS-618  2.0mm ¢ × 1 pin HS-643  0.7mm ¢ × 32 pin HS-632  1.2mm ¢B × 44 pin HS-619  1.2mm ¢ × 44 pin HS-621  1.2mm ¢ × 8 pin HS-622  1.2mm ¢ × 10 pin HS-623  1.2mm ¢ × 12 pin HS-644  0.7mm ¢ × 16 pin HS-634  1.2mm ¢B × 28 pin HS-624  1.2mm ¢ × 16 pin HS-625  1.2mm ¢ × 16 pin HS-626  1.2mm ¢ × 28 pin HS-627  1.2mm ¢ × 14 pin   HS-635  1.2mm ¢B × 22 pin HS-628  1.2mm ¢ × 16 pin HS-629  1.2mm ¢ × 18 pin                     Orders for customized nozzles are accepted for even 1 nozzle. * Use the custom nozzle application form provided on our website. HOZAN accepts orders for custom nozzles (minimum order: 1 nozzle) . Just prepare a sample of the desolder component, a formal drawing (showing all dimensions) , or the required dimensions shown below, then contact a HOZAN representative.
