IMV Card Vibro Neo (Type-212)

Code : VM-2004-Neo (Type 212)
Brand : IMV


IMV Card Vibro Neo

VM-2004-Neo (Type 212)

For condition check of general rotation machines, such as motor, pump and blower
  • Simultaneous measurement
  • FFT Spectrum Analysis, waveform desplay function
  • sensor for different uses
  • Data Save
  • Bearing Checker Function
  • Use of PDA application
  • Use with CPU
  • Use option with Card Vibro Advance(P16)

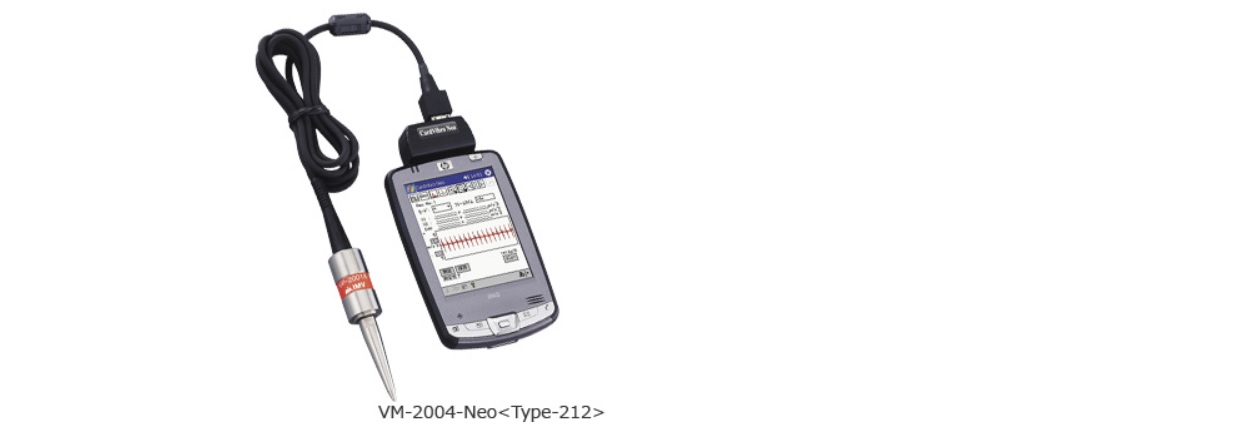

VM-2004-Neo<Type-212>

General Specifications

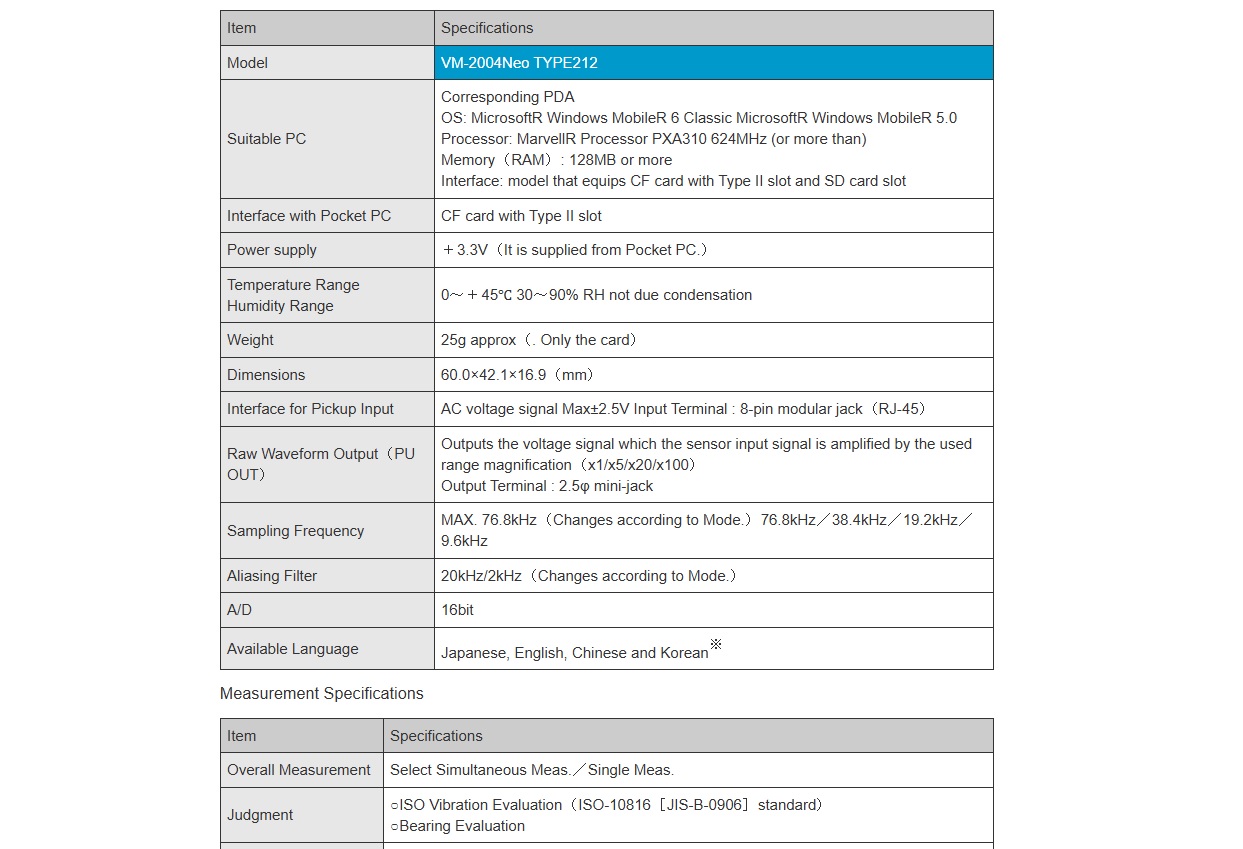

ItemSpecifications
Model VM-2004Neo TYPE212
Suitable PC

Corresponding PDA
OS: MicrosoftR Windows MobileR 6 Classic MicrosoftR Windows MobileR 5.0
Processor: MarvellR Processor PXA310 624MHz (or more than)
Memory?RAM?: 128MB or more
Interface: model that equips CF card with Type II slot and SD card slot

Interface with Pocket PC

CF card with Type II slot

Power supply

?3.3V?It is supplied from Pocket PC.?

Temperature Range
Humidity Range

0??45? 30?90% RH not due condensation

Weight

25g approx?. Only the card?

Dimensions

60.0×42.1×16.9?mm?

Interface for Pickup Input

AC voltage signal Max±2.5V Input Terminal : 8-pin modular jack?RJ-45?

Raw Waveform Output?PU OUT?

Outputs the voltage signal which the sensor input signal is amplified by the used range magnification?x1/x5/x20/x100?
Output Terminal : 2.5φ mini-jack

Sampling Frequency MAX. 76.8kHz?Changes according to Mode.?76.8kHz?38.4kHz?19.2kHz?9.6kHz
Aliasing Filter

20kHz/2kHz?Changes according to Mode.?

A/D 16bit
Available Language Japanese, English, Chinese and Korean?

?Please Prepare the Pocket PC or PC at your side, except Japanese.

Measurement Specifications

ItemSpecifications
Overall Measurement

Select Simultaneous Meas.?Single Meas.

Judgment ?ISO Vibration Evaluation?ISO-10816?JIS-B-0906?standard?
?Bearing Evaluation

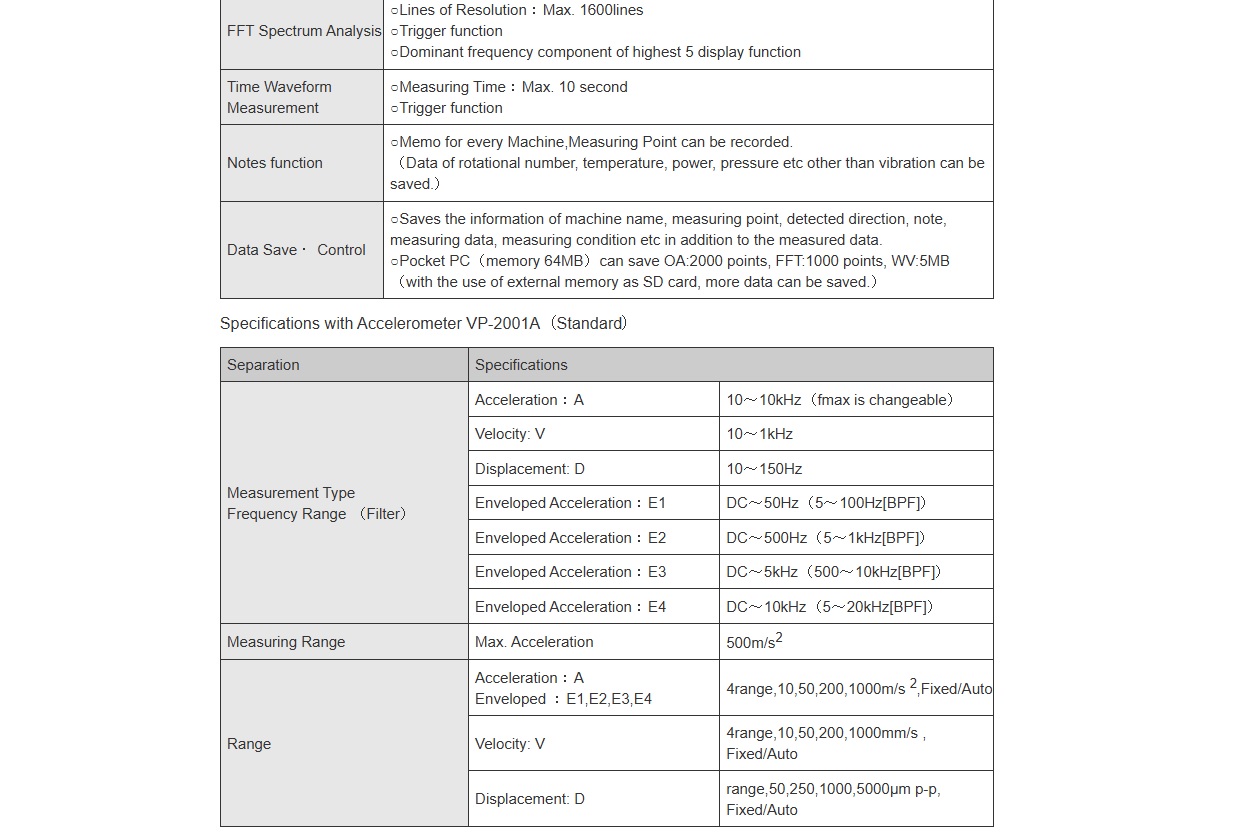

FFT Spectrum Analysis ?Lines of Resolution?Max. 1600lines
?Trigger function
?Dominant frequency component of highest 5 display function
Time Waveform Measurement ?Measuring Time?Max. 10 second
?Trigger function
Notes function ?Memo for every Machine,Measuring Point can be recorded.
?Data of rotational number, temperature, power, pressure etc other than vibration can be saved.?
Data Save? Control

?Saves the information of machine name, measuring point, detected direction, note, measuring data, measuring condition etc in addition to the measured data.
?Pocket PC?memory 64MB?can save OA:2000 points, FFT:1000 points, WV:5MB
?with the use of external memory as SD card, more data can be saved.?

Specifications with Accelerometer VP-2001A?Standard?

SeparationSpecifications
Measurement Type
Frequency Range ?Filter?

Acceleration?A

10?10kHz?fmax is changeable?
Velocity: V 10?1kHz
Displacement: D 10?150Hz
Enveloped Acceleration?E1 DC?50Hz?5?100Hz[BPF]?
Enveloped Acceleration?E2 DC?500Hz?5?1kHz[BPF]?
Enveloped Acceleration?E3 DC?5kHz?500?10kHz[BPF]?
Enveloped Acceleration?E4 DC?10kHz?5?20kHz[BPF]?
Measuring Range Max. Acceleration 500m/s2
Range

Acceleration?A
Enveloped ?E1,E2,E3,E4

4range,10,50,200,1000m/s 2,Fixed/Auto
Velocity: V 4range,10,50,200,1000mm/s , Fixed/Auto
Displacement: D range,50,250,1000,5000μm p-p, Fixed/Auto

Specifications with Electro-dynamic Velocity Pickup VP-2001V?Option?

SeparationModeSpecifications
Measurement Type
Frequency Range ?Filter?
Velocity: V 10?1kHz
Displacement: D 10?500Hz
Measuring Range Max. Displacement 1000μm p-p
Range Velocity: V 4range.5,25,100,500mm/s ,Fixed/Auto
Displacement: D 4range, 25,125,500,2500μm  p-p ,Fixed/Auto

Specifications with Piezo-resistive Acceleration Pickup?for Low-band?
VP-2001PS?Option?

SeparationModeSpecifications
Measurement Type
Frequency Range ?Filter?

Acceleration?A

3?100Hz
Velocity: V 3?100Hz
Displacement: D 3?100Hz
Measuring Range Max. Acceleration 20m/s2
Range

Acceleration?A

4range.0.2,1.0,4.0,20m/s2/,Fixed/Auto
Velocity: V 4range, 1,5,20,100mm/s/ ,Fixed/Auto
Displacement: D 4range,5,25,100,500μm p-p, Fixed/Auto
