ZLINK3

Feature

- Graphing software for RS232C output type force gauges and torque gauges.

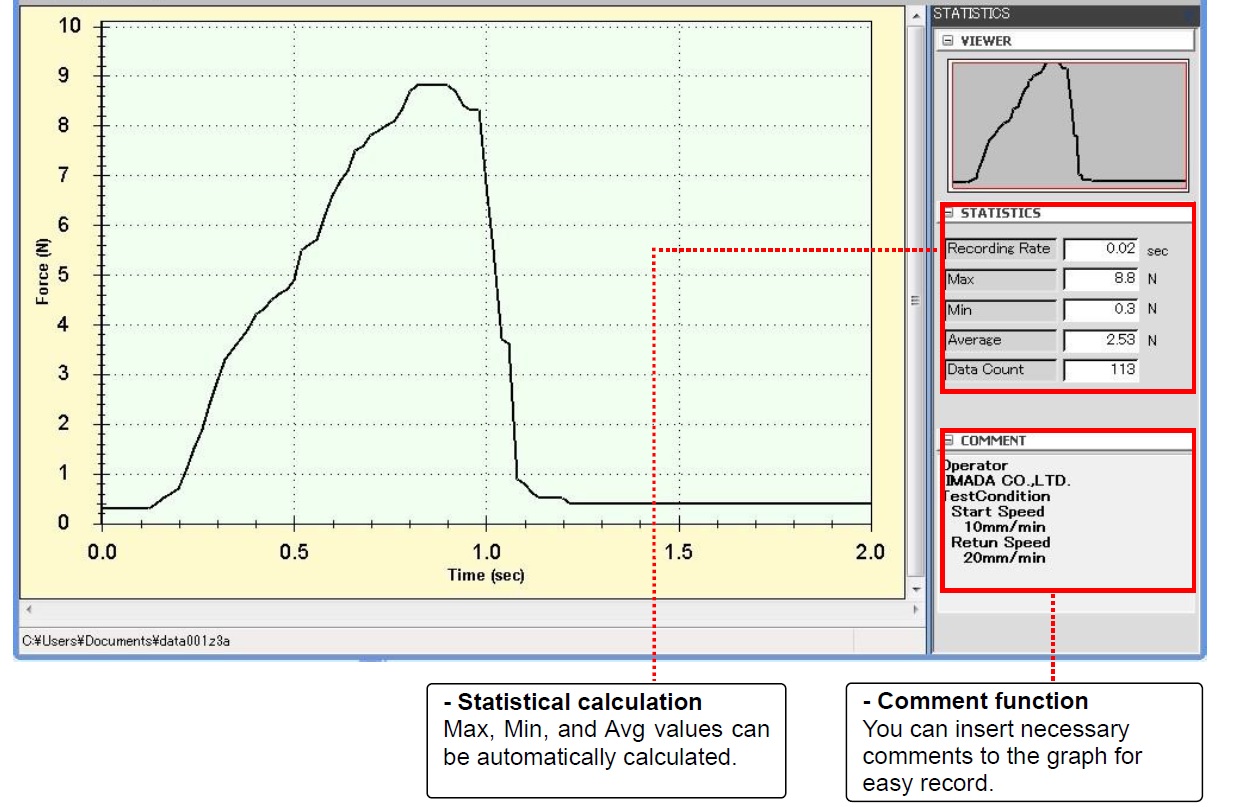

- Enables real time graphing and inserting continuous data of measured values and internal memory.
- Able to save the data in Excel CSV format.



Specifications for ZLINK3 Graph Drawing Software for RS232C

Model	ZLINK3
OS	Windows2000 (SP3 or later) / XP (SP2 or later) / Vista / 7 You cannot use this software in 64 bit version of Windows Vista.
Operating environment	Microsoft .NET Framework 2.0
	Microsoft Internet Explorer 5.01 later
Interface	PC with RS232C port as a standard euipment(*1)
Data transmission speed	Up to 50/sec
Resolution	It depends on force gauge range or load cell range (4-digit LCD)
Data storage format	CSV format(*2)(Compatible with Microsoft Excel)
The gauges that can be combined(*3)	DS2 series	Z series(ZP/Z2, ZPH/Z2H,ZPS/Z2S)	HTG2 series	DTX2 series
Necessary cables	CB-203	CB-204	CB-204	CB-204

*Please note that some PC do not have RS232C port.
(If you use commercially available conversion adapter from RS232C to USB, you may use USB port, however,
please note that some cannot work and we cannot be responsible for that.)
*2 The amount of readable data would be restricted depending on Excel version.
*3 Please contact us if you would like to use software for your out of production model gauge.
