Code : VJ-ADV, VJ-STR
Brand : RF

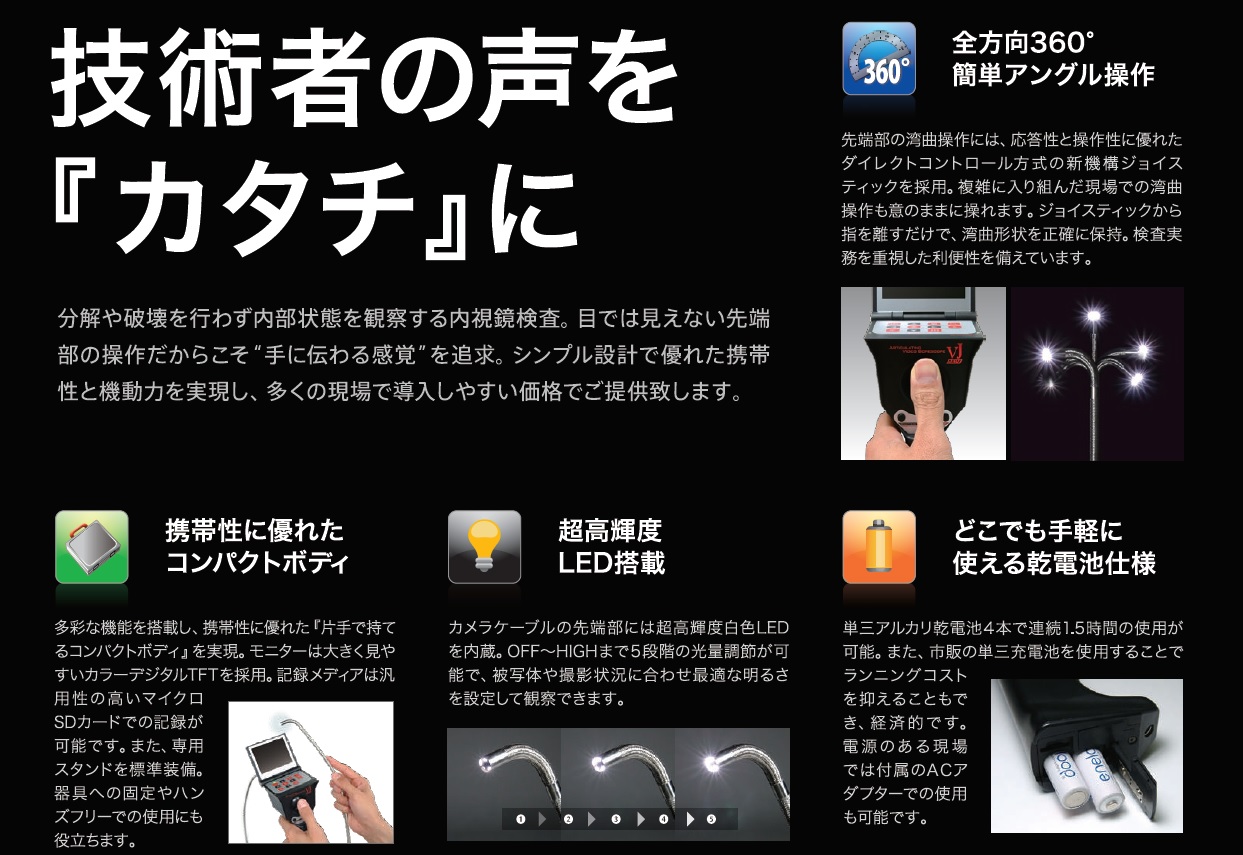

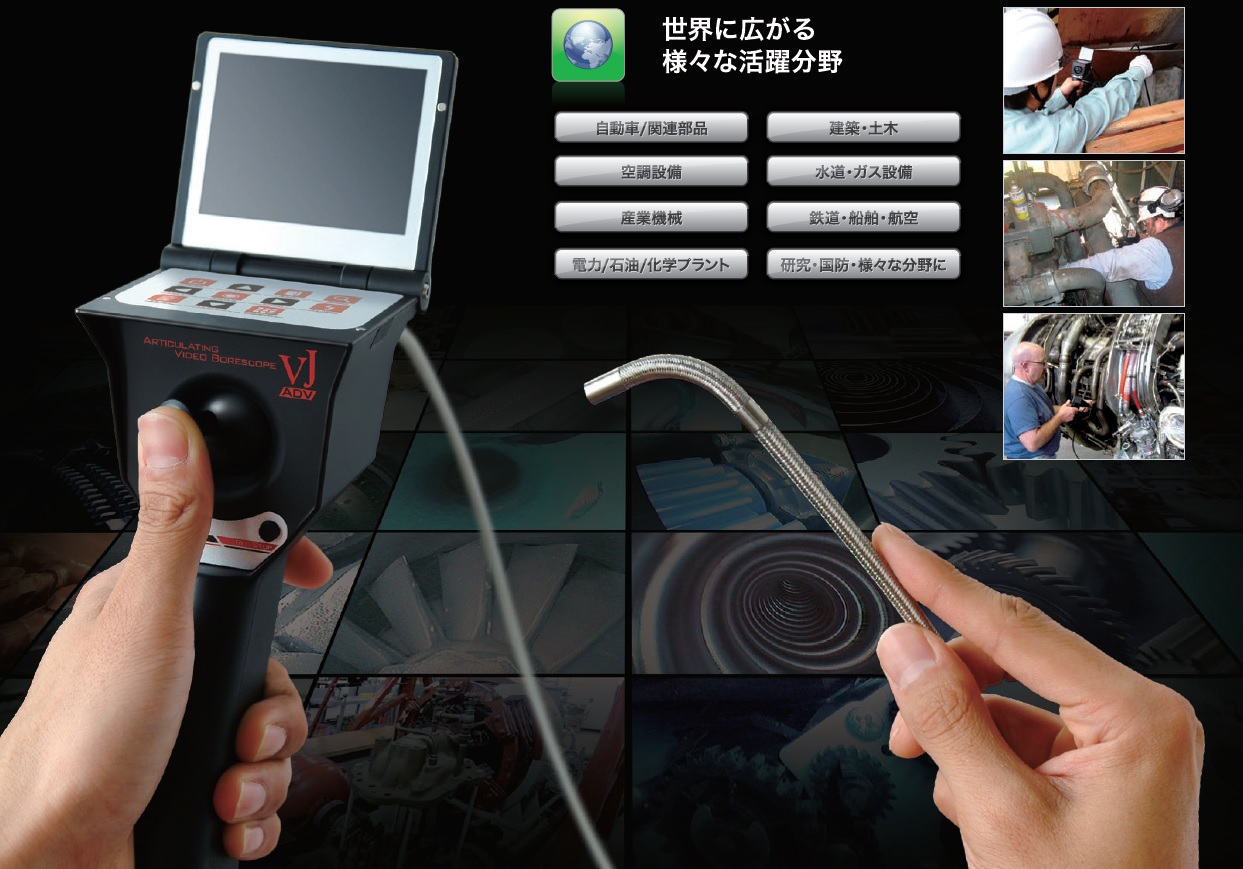

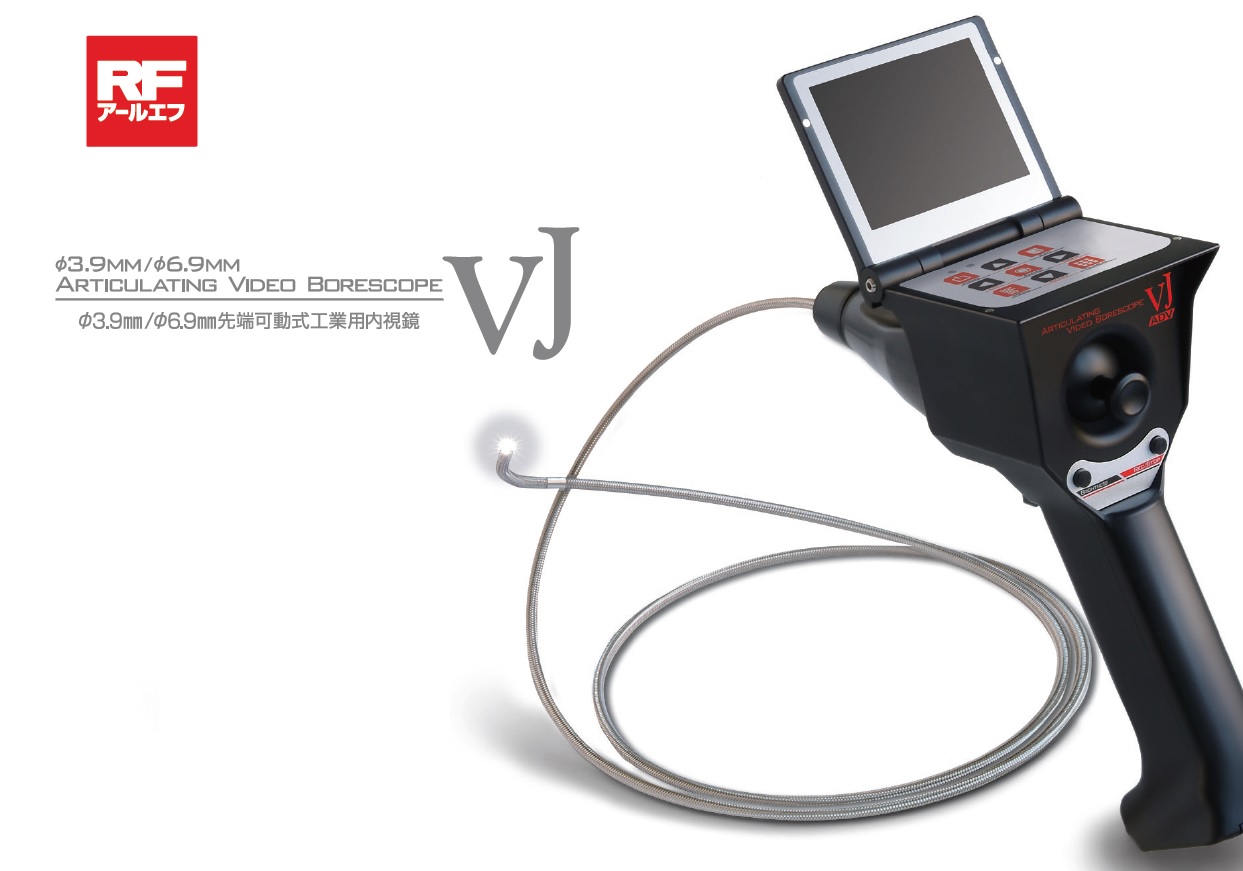

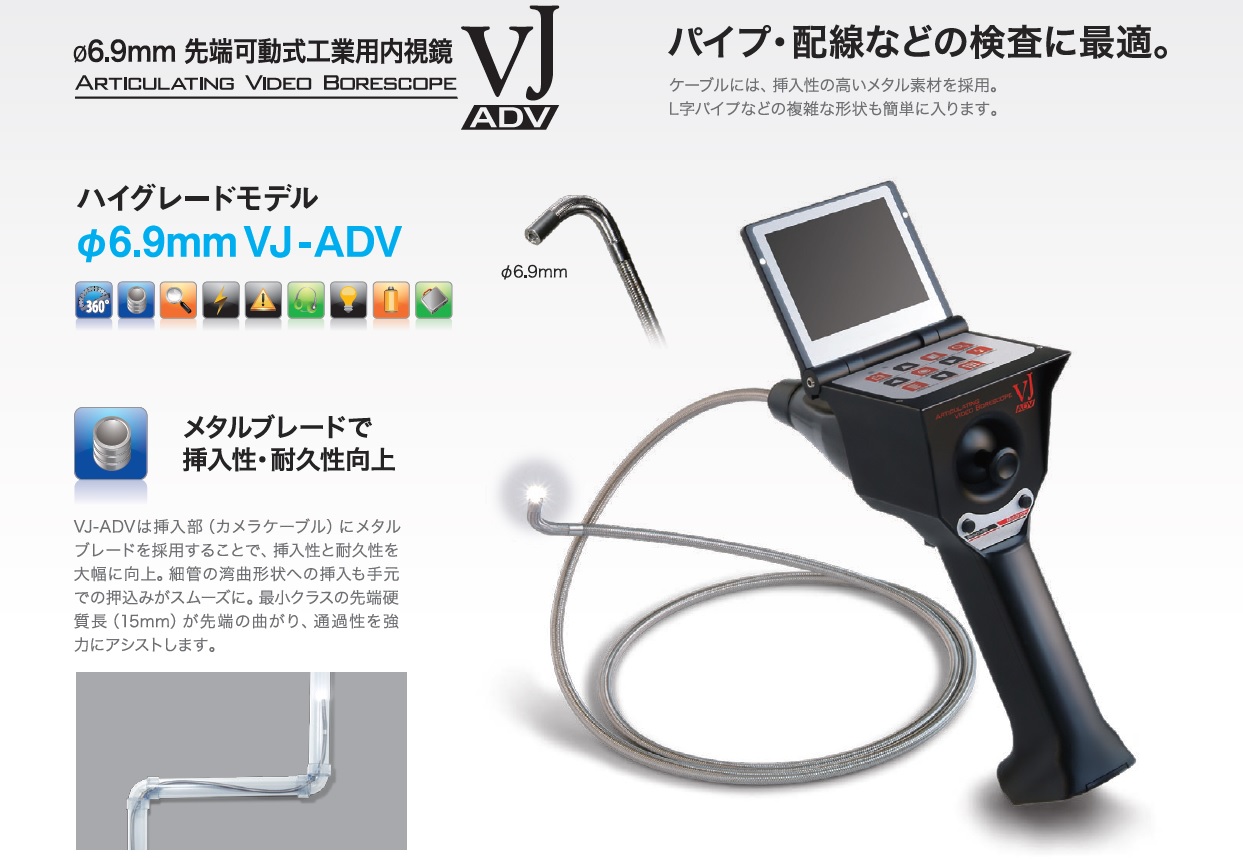

VJ has achieved more precise responses to your camera control with the joystick operation. VJ's joystick manipulates the camera tip precisely as if it is at your fingertip. The 360-degree articulation capability assists you to navigate through the curved and complex paths. VJ's full-control and high navigation abilities improve work efficiency at the inspection site.
The 15.0 mm rigid end of the cable is the world's shortest class in the video borescopes market. The short rigid end assists easy navigation through complicated structures and narrow spaces.
Adjustable light source on VJ adapts to any inspection environment. The powerful light source from high-intensity white LED can be adjusted in 5 levels to facilitate appropriate probes. This feature prevents halation problems and always provides clear image in any condition.
VJ is all-in-one unit with the functions of visual inspection, storing images*, and playing stored images. Since VJ is equipped with all the necessary imaging functions for inspection within one unit, it does not choose places or environments to operate, nor even require any other additional equipment such as PC, VTR and so on.
*Storage Media: Micro SD Card
VJ operates with 2 hours** runtime by 4 AAA-batteries. Since VJ is battery-powered, it does not require outside power supplies and also can be replaced with new batteries when they run out. Replaceable power source eliminates the risk of downtime.
**Time may vary depending on the battery type.
VJ is equipped with the flip-up 2.4” color TFT monitor, which allows you to operate the VJ while checking the image on the spot.
VJ image can be displayed on any monitor such as TV, LCD monitor or handy cam by connecting a video cable.
VJ image can be displayed on a computer by installing the included software and USB cable. Image can be directly captured or recorded to the computer.
VJ enables to capture or record image in the MicroSD Card directly. Those stored images can be downloaded to a computer through a card reader.

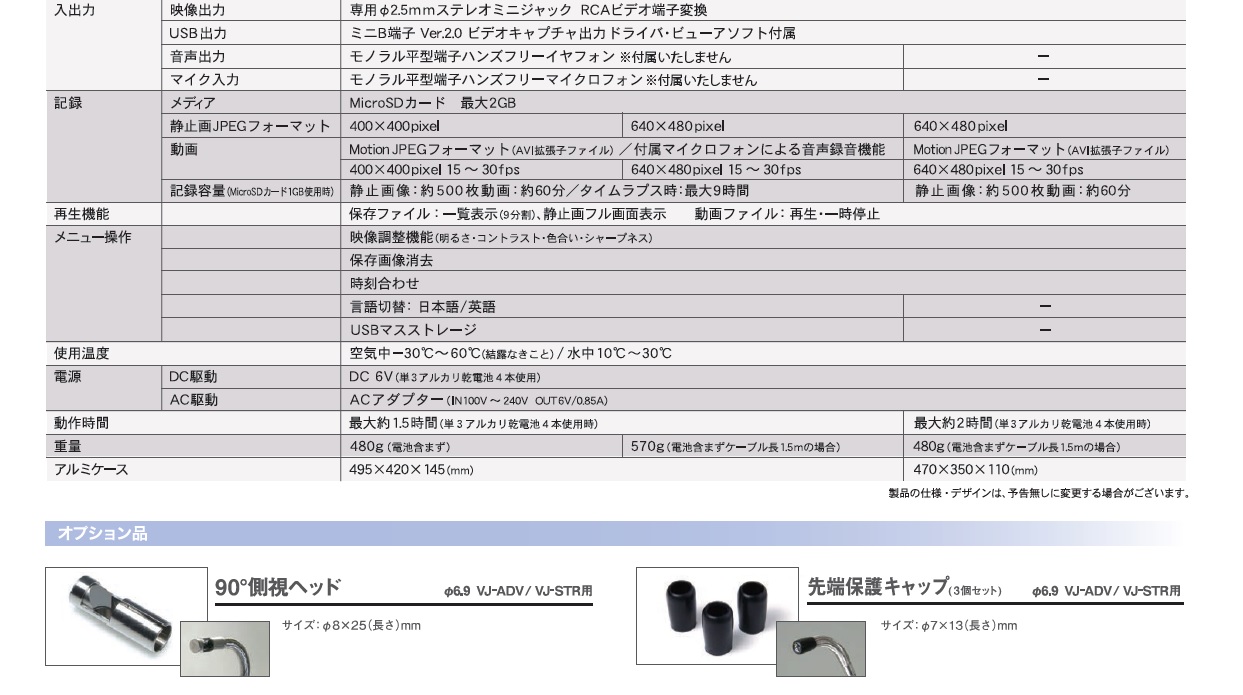

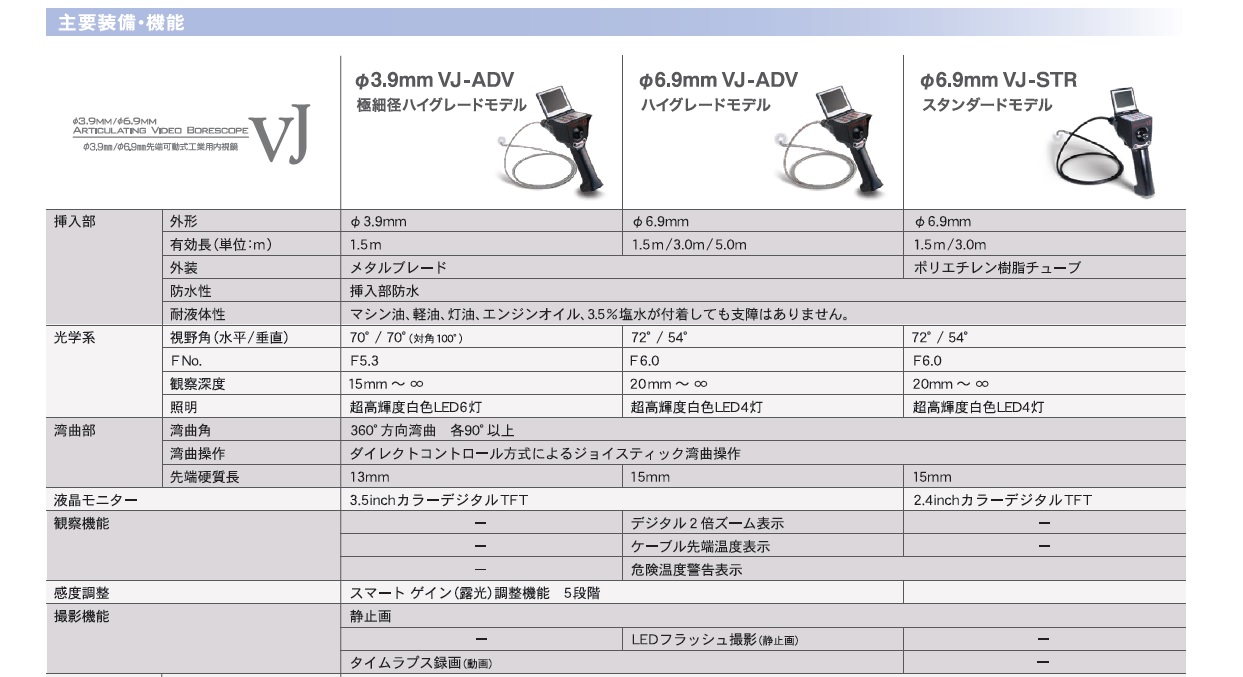

| VJ | ||
| Insertion Tube | Working Length | 1.5m (4'11") / 3.0m (9'10") |
| Scope Diameter | Φ 6.9mm | |
| Armor | Polyurethane | |
| Waterproof | Insertion tube and tip | |
| Articulation Section | Articulation Angle | 360°(more than 90° in each direction) |
| Articulation Control | Joystick | |
| Camera head Length | 15.0mm(0.6") | |
| Optics | Angle(H/V) | 74° / 59° |
| Lens | f=1.9mm | |
| F No. | F 6.3 | |
| Focal Distance | 15.0mm~∞ | |
| Luminance | High-Intensity LED | |
| Camera | Imaging Sensor | 1/6" es-H2 CCD |
| Total Pixels | 811(H) X 508 (V) | |
| Effective Pixels | 768(H) X 494(V) | |
| Pixel Size | 3.65μm(H) X 4.80μm(V) | |
| Effective Sensor Size | 2.4mm(H) X 1.8mm(V) | |
| Resolution | 5525(H) X 480(V) TV | |
| Brightness | AGC 0 ~ +34dB | |
| Normal Shutter | "AEC 1 / 60 sec ~ 1 / 1000,000 sec" | |
| Base Unit | LCD | 2.4" color digital TFT(480X234pixel) |
| Storage Media | MicroSD card (max 2GB) | |
| Recording Capacity | Still Image：Approx 500 pictures Movie：Approx 60 min (with 1GB Micro SD card) |
|
| Still Image Recording | JPEG compression 640 X 480pixel | |
| Movie Recording | AVI M-JPEG 640 X 480pixel 15~30fps | |
| Play Functions | Still images: Thumbnail display (9 images/page), Full screen display Motion image: Play, Pause, Fast forward, and Fast rewind |
|
| Menu Functions | Image Adjustment (Brightness, Contrast, Hue, Shaprness) Delete stored images Time setting | |
| Video Output | NTSC output jack USB2.0 video output jack (incl. software) |
|
| Operating Temp | -10℃~ 40°C | |
| Power Supply | DC 6V (4 AAA-batteries) | |
| Operating Time | Approx. 2hrs | |
| Power Consumption | 2.5W | |
| Weight | 400g (14oz) batteries / cables are not included | |
