Riken Sine Bar, Sine Bar Base

Code : RSBB-100, RSBB-200, RSB-100, RSB-200
Brand : Riken


Riken Sine Bar, Sine Bar Base

RSBB-100, RSBB-200, RSB-100, RSB-200

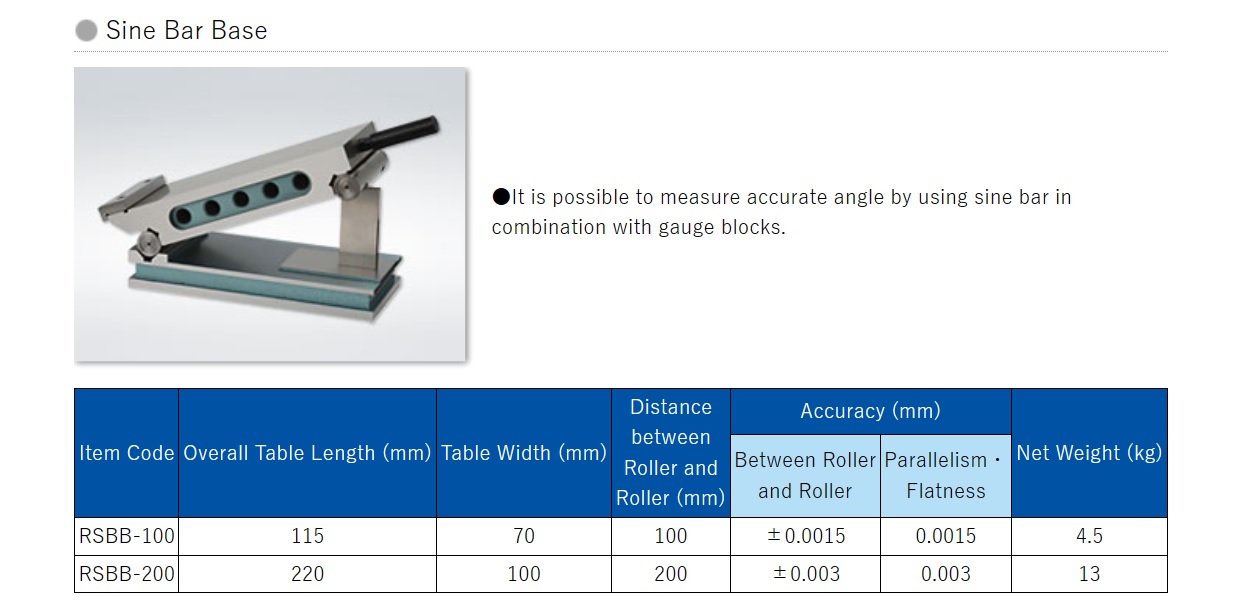

 Sine Bar Base?It is possible to measure accurate angle by using sine bar in combination with gauge blocks.

Item Code

Overall Table Length

(mm)

Table Width

(mm)

Distance
between
Roller and
Roller (mm)
Accuracy (mm)

Net Weight

(kg)

Between Roller
and Roller
Parallelism?
Flatness
RSBB-100 115 70 100 ±0.0015 0.0015 4.5
RSBB-200 220 100 200 ±0.003 0.003 13

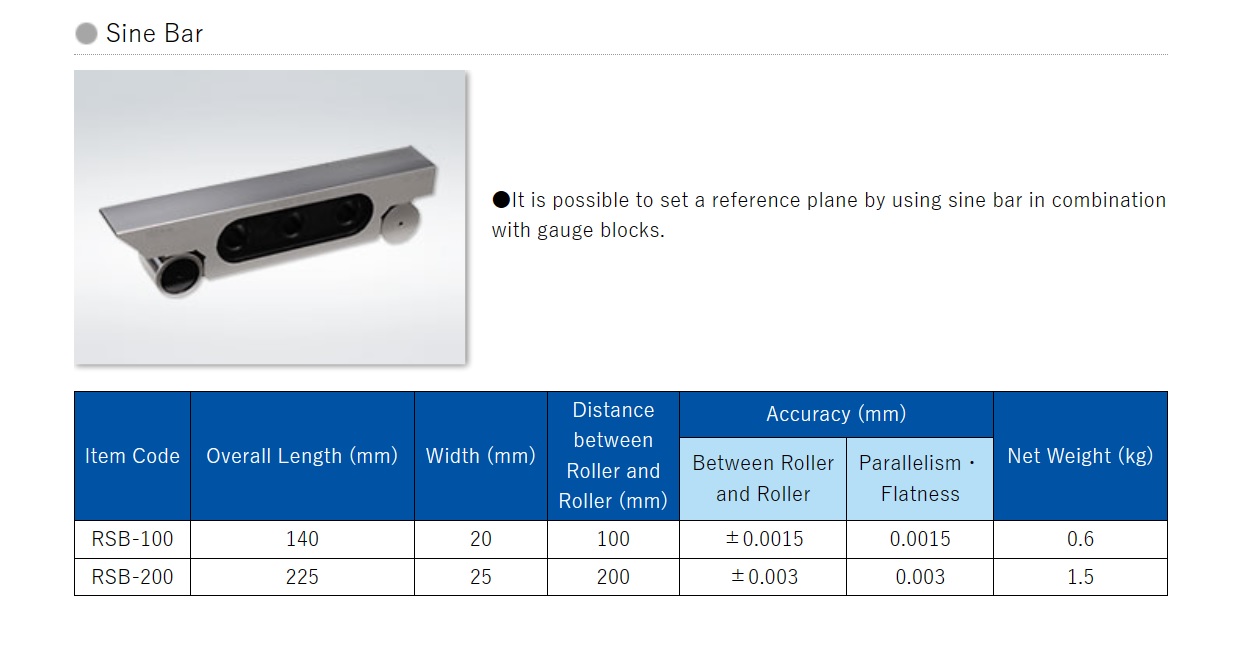

Sine Bar?It is possible to set a reference plane by using sine bar in combination with gauge blocks

Item Code

Overall Length

(mm)

Width

(mm)

Distance
between
Roller and
Roller (mm)
Accuracy (mm)

Net Weight

(kg)

Between Roller
and Roller
Parallelism?
Flatness
RSB-100 140 20 100 ±0.0015 0.0015 0.6
RSB-200 225 25 200 ±0.003 0.003 1.5
