Riken - Riken Straight Edge Bevel-Type


Riken Straight Edge Bevel-Type

Code : RSHV-200, RSHV-300, RSHV-500, RSHV-600, RSHV-750, RSHV-1000, RSHV-1500, RSHV-2000, RSHV-200Y, RSHV-300Y, RSHV-500Y, RSHV-600Y, RSHV-750Y, RSHV-1000Y, RSHV-1500Y, RSHV-2000Y
Brand : Riken


Riken Straight Edge Bevel-Type

RSHV-200, RSHV-300, RSHV-500, RSHV-600, RSHV-750, RSHV-1000, RSHV-1500, RSHV-2000, RSHV-200Y, RSHV-300Y, RSHV-500Y, RSHV-600Y, RSHV-750Y, RSHV-1000Y, RSHV-1500Y, RSHV-2000Y

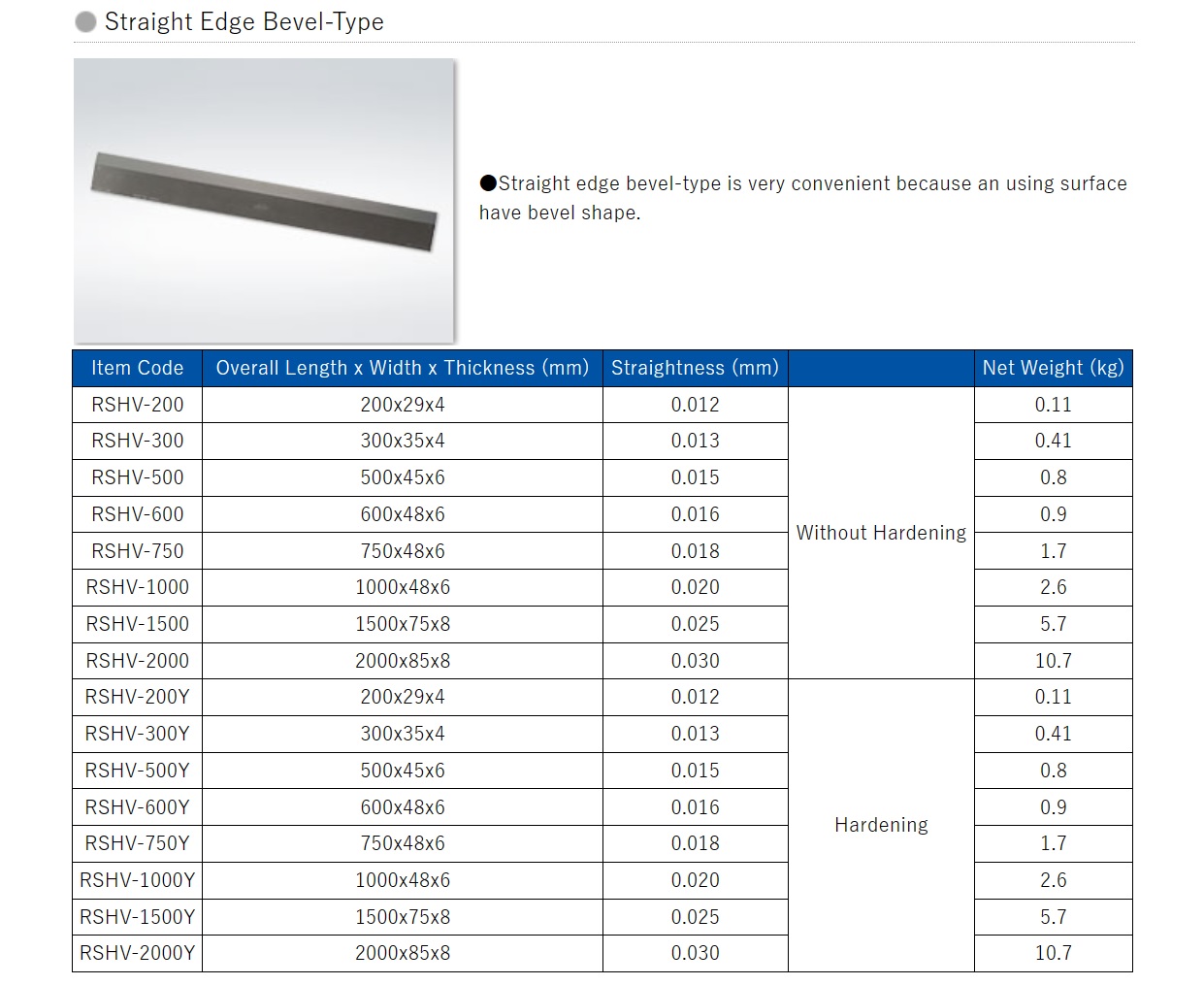

Straight Edge Bevel-Type

Straight Edge Bevel-Type?Straight edge bevel-type is very convenient because an using surface have bevel shape.

Item Code

Overall Length x Width x Thickness

(mm)

Straightness

(mm)



Net Weight

(kg)

RSHV-200 200x29x4 ±0.012 Without Hardening 0.11
RSHV-300 300x35x4 ±0.013 0.41
RSHV-500 500x45x6 ±0.015 0.8
RSHV-600 600x48x6 ±0.016 0.9
RSHV-750 750x48x6 ±0.018 1.7
RSHV-1000 1000x48x6 ±0.020 2.6
RSHV-1500 1500x75x8 ±0.025 5.7
RSHV-2000 2000x85x8 ±0.030 10.7
RSHV-200Y 200x29x4 ±0.012 Hardening 0.11
RSHV-300Y 300x35x4 ±0.013 0.41
RSHV-500Y 500x45x6 ±0.015 0.8
RSHV-600Y 600x48x6 ±0.016 0.9
RSHV-750Y 750x48x6 ±0.018 1.7
RSHV-1000Y 1000x48x6 ±0.020 2.6
RSHV-1500Y 1500x75x8 ±0.025 5.7
RSHV-2000Y 2000x85x8 ±0.030 10.7
