Lobster - Lobster Electric drill socket DLM

Lobster Electric drill socket DLM

Code : DLM8, DLM10, DLM12, DLM13, DLM14, DLM17, DLM19, DLM21, DLM22, DLM24, FILM, BLM2, BLM3, BLM4, FKLM, EB2075, EB2150, EB3075, EB4075, EB4150, EB4250
Brand : Lobster


Electric drill socket DLM

Electric drill socket DLM

•For attaching/removing nuts and bolts in various work fields
•Applicable to 14.4 V impact drivers

•Double grooves (9 mm and 13 mm) are provided in the electric tool joint. Applicable to various types of electric drills.
•Deep socket type. It can be used even in situations where external thread protrusion easily occurs.

Use/Application

For provisional installation of scaffolding, duct installation work, strap bolts, other form tie nuts, hook bolts and P-cones



Specifications

Electric drill socket DLM



Model No.    (Product) weight       size1         size2       size3       size4       size5       Retail/User prices
DLM8 50g 8mm φ12mm φ6mm 12mm 63mm open price
DLM10 58g 10mm φ14mm φ8mm 15mm 63mm open price
DLM12 73g 12mm φ17mm φ10mm 18mm 65mm open price
DLM13 78g 13mm φ18mm φ11mm 20mm 65mm open price
DLM14 83g 14mm φ19mm φ12mm 21mm 63mm open price
DLM17 111g 17mm φ23mm φ14mm 26mm 63mm open price
DLM19 128g 19mm φ25mm φ16mm 29mm 63mm open price
DLM21 150g 21mm φ28mm φ18mm 32mm 63mm open price
DLM22 157g 22mm φ29mm φ19mm 33mm 63mm open price
DLM24 193g 24mm φ32mm φ21mm 36mm 61mm open price

Electric drill socket for FILM form ties

Electric drill socket for FILM form ties

•For IVY form tie. Grips the head of IVY form tie nuts to mount and remove form ties.

•Detachable P-cone and form tie

Use/Application




Specifications

Electric drill socket for FILM form ties



Model No.      (Product) weight     size1          size2           size3           Retail/User prices       Remark
FILM 33g 50mm 18mm 6.35mm open price for IVY form tie

Electric drill socket for full thread bolt BLM

Electric drill socket for full thread bolt BLM

•For attaching and removing full-thread bolts, P-cones and form ties

•Double grooves (9 mm and 13 mm) are provided in the electric tool joint. Applicable to various types of electric drills.
•When the socket is turned, the roller automatically grips the bolt, and attaches the bolt quickly. It can be used in reverse rotation, too.

Use/Application




Specifications

Electric drill socket for full thread bolt BLM



Model No.    (Product) weight      size1          size2         size3          Applicable screw          Retail/User prices
BLM2 80g 66mm 23mm 6.35mm 7.9?5/16"? open price
BLM3 110g 66mm 28mm 6.35mm 9.5?3/8"? open price
BLM4 110g 66mm 28mm 6.35mm 12.7?1/2"? open price

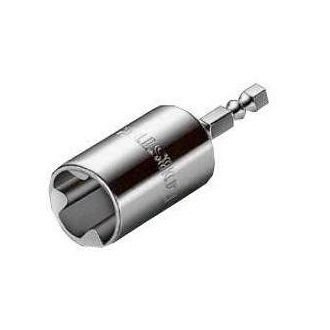

Electric drill socket for oval form ties

Electric drill socket for oval form ties

•Electric drill socket for oval form ties

•Double grooves of 9 mm and 13 mm are provided in the electric tool joint. Applicable to various types of electric drills.
•Internal cross socket enables smooth insertion into form ties, resulting in improved work efficiency.

Use/Application




Specifications

Electric drill socket for oval form ties



Model No.   (Product) weight     size1          size2          size3           Retail/User prices          Remark
FKLM 84g 75mm 24mm 6.35mm open price for OVAL form tie

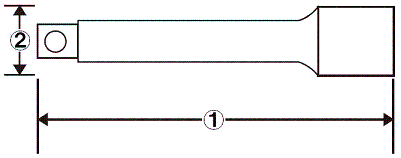

Extension bar EB

Extension bar EB



•Extension bar for attaching a socket to a ratchet handle or nut spinner handle, for work in cramped spaces of a certain depth.

Use/Application




Specifications

Extension bar EB



Model No.    (Product) weight      size1           size2            Retail/User prices           Remark
EB2075 40g 75mm 12.5mm open price 6.35?1/4"?
EB2150 70g 150mm 12.5mm open price 6.35?1/4"?
EB3075 70g 75mm 18.0mm open price 9.5?3/8"?
EB3150 120g 150mm 18.0mm open price 9.5?3/8"?
EB4075 135g 75mm 24.0mm open price 12.7?1/2"?
EB4150 225g 150mm 24.0mm open price 12.7?1/2"?
EB4250 350g 250mm 24.0mm open price 12.7?1/2"?
