Lobster - Lobster Pocket-sized adjustable angle wrench UM-S, Pocket-sized adjustable angle wrench X grip UM-XDS

Lobster Pocket-sized adjustable angle wrench UM-S, Pocket-sized adjustable angle wrench X grip UM-XDS

Code : UM24SG, UM24SR, UM24SB, UM24SY, UM24SV, UM24SS, UM30SG, UM30SR, UM30SB, UM30SY, UM30SV, UM30SS, UM36SG, UM36SR, UM36SB, UM36SYUM36SV, UM36SS, UM48SG, UM48SR, UM48SB, UM48SY, UM48SV, UM48SS, UM24XDS, UM30XDS, UM36XDS, UM49XDS
Brand : Lobster

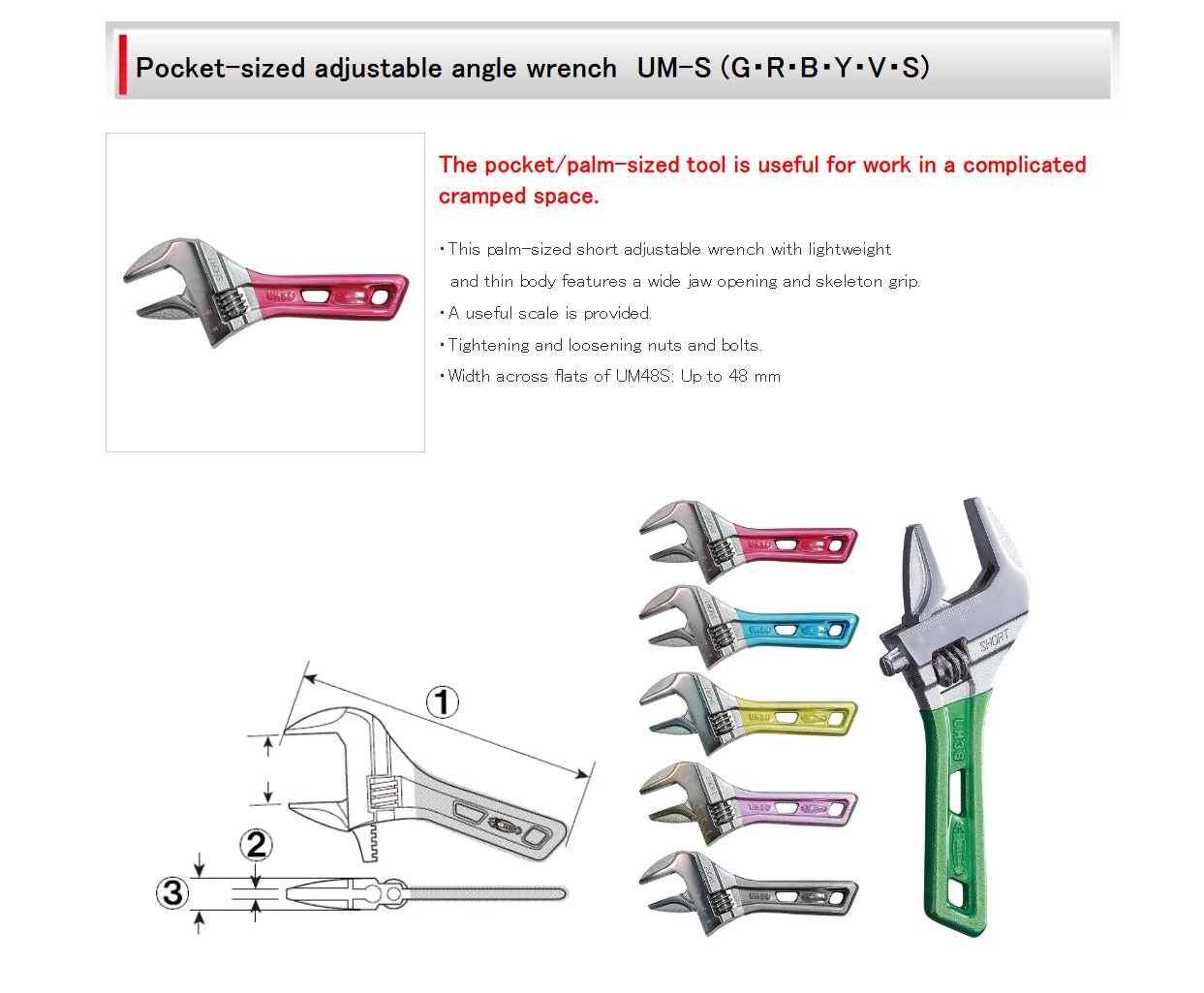

Pocket-sized adjustable angle wrench UM-S (-G•R•B•Y•V•S)

Pocket-sized adjustable angle wrench UM-S (-G•R•B•Y•V•S)

•The pocket/palm-sized tool is useful for work in a complicated cramped space.

•This palm-sized short adjustable wrench with lightweight and thin body features a wide jaw opening and skeleton grip. A useful scale is provided.
•Width across flats of UM48S: Up to 48 mm

Use/Application

•Tightening and loosening nuts and bolts


ECO

Specifications

Pocket-sized adjustable angle wrench UM-S (-G•R•B•Y•V•S)

Pocket-sized adjustable angle wrench UM-S (-G•R•B•Y•V•S)

Model No.       (Product) weight          size1                 size2             size3               Jaw Capacity               Bolt, nut maximum dimension             Remark
UM24SG 80g 118mm 5mm 9.5mm 0?24mm M16 Grip color ?Green
UM24SR 80g 118mm 5mm 9.5mm 0?24mm M16 Grip color ?Red
UM24SB 80g 118mm 5mm 9.5mm 0?24mm M16 Grip color ?Blue
UM24SY 80g 118mm 5mm 9.5mm 0?24mm M16 Grip color ?Yellow
UM24SV 80g 118mm 5mm 9.5mm 0?24mm M16 Grip color ?Violet
UM24SS 80g 118mm 5mm 9.5mm 0?24mm M16 Grip color ?Smoke
UM30SG 140g 140mm 6mm 12.0mm 0?30mm M20 Grip color ?Green
UM30SR 140g 140mm 6mm 12.0mm 0?30mm M20 Grip color ?Red
UM30SB 140g 140mm 6mm 12.0mm 0?30mm M20 Grip color ?Blue
UM30SY 140g 140mm 6mm 12.0mm 0?30mm M20 Grip color ?Yellow
UM30SV 140g 140mm 6mm 12.0mm 0?30mm M20 Grip color ?Violet
UM30SS 140g 140mm 6mm 12.0mm 0?30mm M20 Grip color ?Smoke
UM36SG 235g 160mm 7mm 14.0mm 0?36mm M24 Grip color ?Green
UM36SR 235g 160mm 7mm 14.0mm 0?36mm M24 Grip color ?Red
UM36SB 235g 160mm 7mm 14.0mm 0?36mm M24 Grip color ?Blue
UM36SY 235g 160mm 7mm 14.0mm 0?36mm M24 Grip color ?Yellow
UM36SV 235g 160mm 7mm 14.0mm 0?36mm M24 Grip color ?Violet
UM36SS 235g 160mm 7mm 14.0mm 0?36mm M24 Grip color ?Smoke
UM48SG 440g 185mm 8mm 16.5mm 0?48mm M30 Grip color ?Green
UM48SR 440g 185mm 8mm 16.5mm 0?48mm M30 Grip color ?Red
UM48SB 440g 185mm 8mm 16.5mm 0?48mm M30 Grip color ?Blue
UM48SY 440g 185mm 8mm 16.5mm 0?48mm M30 Grip color ?Yellow
UM48SV 440g 185mm 8mm 16.5mm 0?48mm M30 Grip color ?Violet
UM48SS 440g 185mm 8mm 16.5mm 0?48mm M30 Grip color ?Smoke

  • COLOR

    COLOR

  • UM48SY

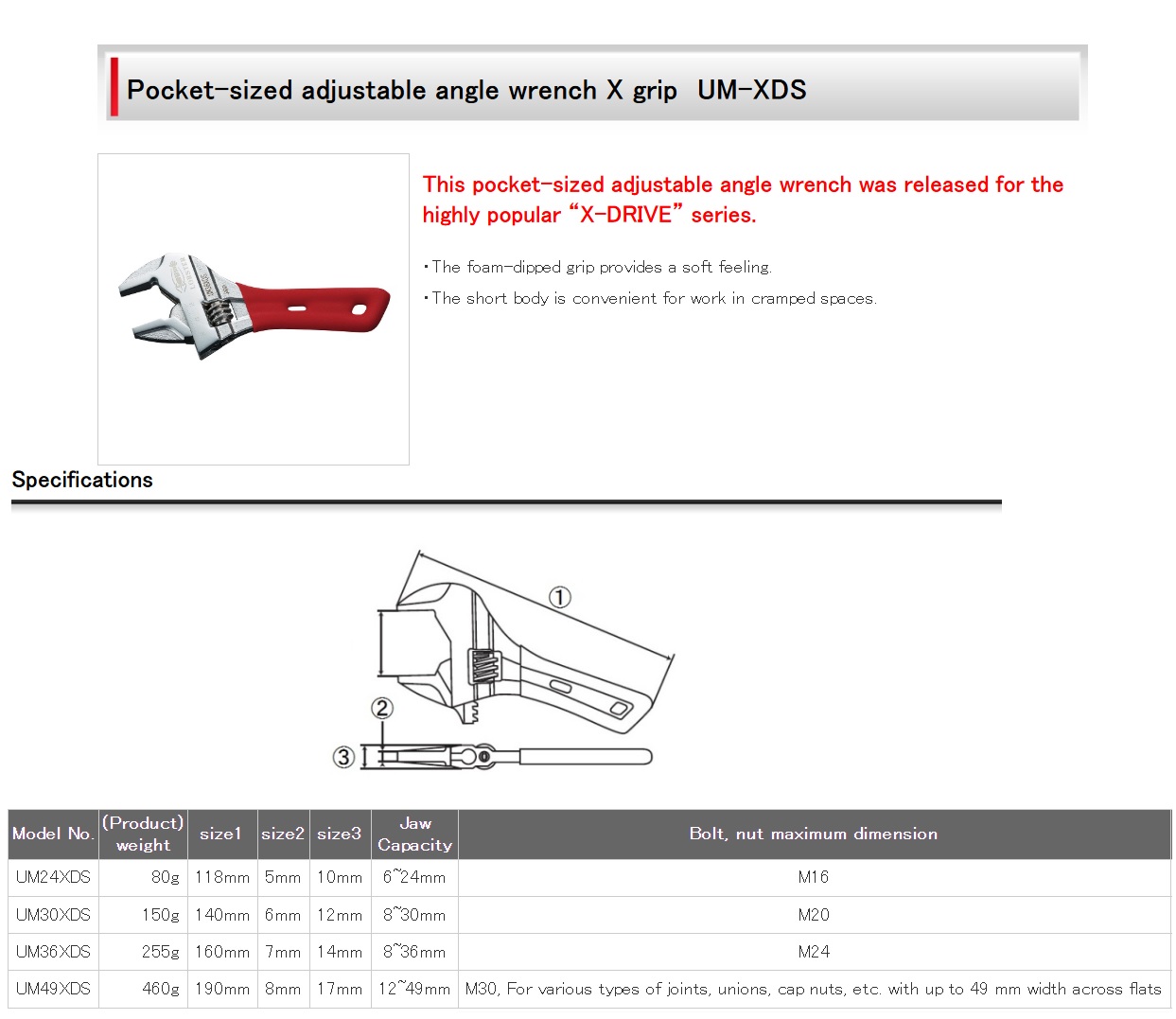

    Pocket-sized adjustable angle wrench X grip UM-XDS

    Pocket-sized adjustable angle wrench X grip UM-XDS

    This pocket-sized adjustable angle wrench was released for the highly popular “X-DRIVE” series.

    •“X-DRIVE”
    When nuts/bolts are set at a position where three faces are in contact with the tool, a relief angle effect kicks in. Because this tool can disperse the stress concentrated at the top, it can assuredly apply torque to nuts/bolts without crushing the head, enabling stable tightening/loosening work.
    •“G-LESS mechanism”
    Our unique G-LESS mechanism reduces vertical play. (Not available on the UM49XDS)
    •The foam-dipped grip provides a soft feeling.
    •The short body is convenient for work in cramped spaces.

    Use/Application




    Specifications



    Pocket-sized adjustable angle wrench X grip UM-XDS

    Model No.           (Product) weight             size1                size2               size3              Jaw Capacity               Bolt, nut maximum dimension     Remark
    UM24XDS 80g 118mm 5mm 10mm 6~24mm M16 Grip color ?Red
    UM30XDS 150g 140mm 6mm 12mm 8~30mm M20 Grip color ?Red
    UM36XDS 255g 160mm 7mm 14mm 8~36mm M24 Grip color ?Red
    UM49XDS 460g 190mm 8mm 17mm 12~49mm M30 Grip color ?Red
