Code : HY, TTH20, FTH20
Brand : Lobster
•Enables perfect flaring with only 26 kgf handle load!
| Model No. | (Product) weight | Remark |
|---|---|---|

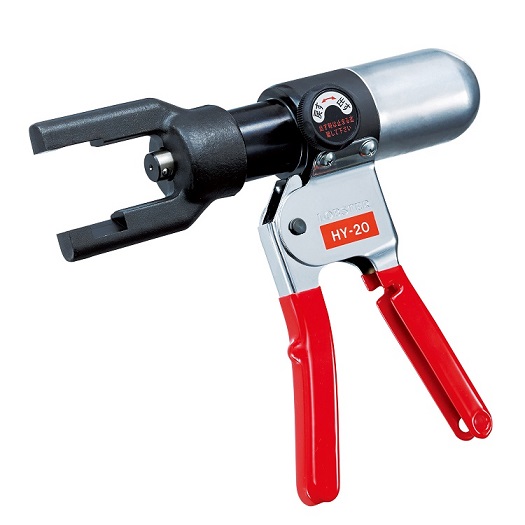

| HY20 | 1480g |
Output 1100kgf?When the load of 26kgf is applied at a 40-mm point from the end of a handle ? |
•For both flaring and flanging work
•Applicable with new R410A coolant
•Enables quick flaring/swaging of a pipe, when the tip of the pipe is set in alignment with the gauge front surface.
•Compact design with a weight of 1,450 g.
•Rotating the tool 180° improves work efficiency.
| Model No. | (Product) weight | Set details | Use range | |
|---|---|---|---|---|
| TTH20 | 3740g | HY20?FTH20G?HFR45?HTR13?HTR20 |
(for Copper pipe)?1/2"?5/8" ?? (for Flexible pipe)?1/2"?3/4" |
•Enables perfect flaring with only 26 kgf handle load!
•Specifically for flaring work
•Applicable with new R410A coolant
•Compact design with a weight of 1,450 g.
•Rotating the tool 180° improves work efficiency.
| Model No. | (Product) weight | Set details | Use range |
|---|---|---|---|
| FTH20 | 3740g | HY20?FTH20G?HFR45 | ?for Copper pipe?45°?1/4"?3/8"?1/2"?5/8"?3/4" |
