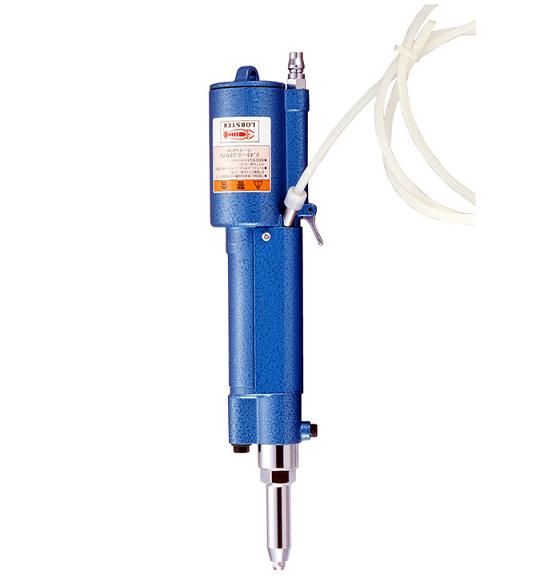

Code : ARV015 S/M
Brand : Lobster
In-line type & Vacuum System
?Ultra Jaws for longer jaw life
?Unique ergonomic in-line vertical design
?Ideal for fixed position assembly line workstations with overhead counterbalance approach
?Integrated vacuum system for mandrel retention and removal to an off-line receptacle
?Able to operate in conjunction with our exclusive ARF-700M autofeeding rivet presenter system

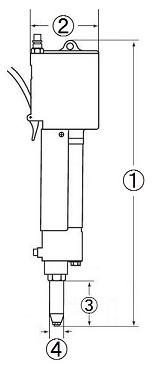

| Model No. | (Product) weight | size1 | size2 | size3 | size4 | Use range | Operating air pressure | Usage jaws | Traction p ower | Remark | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ARV015S | 1.400g | 373mm | 58mm | 64mm | 19.5mm | φ2.4?3.2mm? | 0.49?0.59 | "S" | 3.4 | ??Cannot be used with φ3.2mm stainless steel blind rivets. ?φ3.2 cannot be used for 4 to 10 or more rivet sizes. |
|||||||||||
| ARV015M | 1.700g | 406mm | 96mm | 64.5mm | φ23.0mm | φ2.4?3.2?4.0?4.8mm? | 0.49?0.59 | "M" | 8 | ?Cannot be used with φ4.8mm stainless steel blind rivets. ?φ4 |
