Code : ARV022M
Brand : Lobster
Separate type & Vacuum system
?Soft-Set shockless technology offers ergonomically correct action to minimize CTDs
?Ultra Jaws for longer jaw life
?Lightweight, pistol grip riveting head weighs under two pounds and works with remote intensifier
?Exclusive hydraulic swivel fittings for ease of operator control
?Vacuum mandrel collection system holds rivet prior to setting, and collects spent mandrels either to attached bottle or through a tube to an off-line receptacle
?Mandrel vacuum system for mandrel retention and collection or evacuation to an off-line receptacle
?Long stroke
?Able to operate in conjunction with our exclusive ARF-700M autofeeding rivet presenter system
?Set up to 3/16" (4.8mm) rivets in all materials

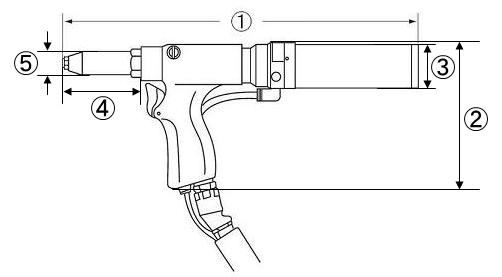

| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | Use range | Operating air pressure | Usage jaws | Traction power | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.8 | |||||||||||||||||||
| ARV022M | 1300g (Only head part) | 342mm | 150mm | 39mm | 64.5mm | 23mm | φ2.4?3.2?4.0?4.8mm | 0.49?0.59 | Ultra |
