Lobster - Lobster Hand Riveter HR003A/B


Lobster Hand Riveter HR003A/B

Code : HR003A/B, HR2050H
Brand : Lobster

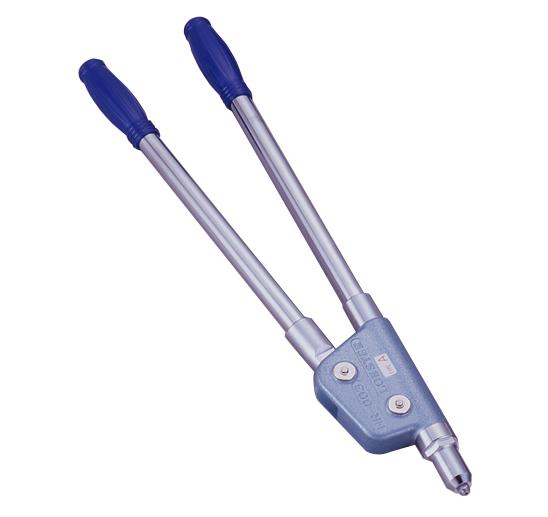

Hand Riveter HR003A/B

Hand Riveter HR003A/B

?Longer handles and gear mechanism exert greater rivet break power.

Longer handles and gear mechanism exert greater rivet break power
?S-bolt rivets can be used by simply replacing the included nosepieces.
?HR003B can set S-bolt rivets by simply replacing the included nosepieses.

Use/Application





Specifications

Hand Riveter HR003A/B

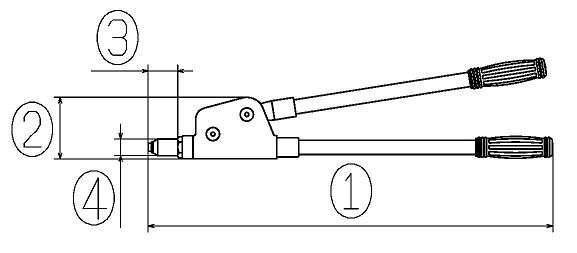

Model No.   (Product) weight     size1     size2     size3     size4     Use range     Usage jaws    Remark
HR003A   1.800g   610mm   95mm   43mm   25mm   φ4.0?4.8mm   Middle   Heavy Duty
?HR003A can be used for the blind-rivet of all the
construction materials of φ4.0-4.8 mm of blind-rivet.
HR003B   2.000g   760mm   95mm   41mm   25mm   φ4.8?6.4mm   Large   Heavy Duty

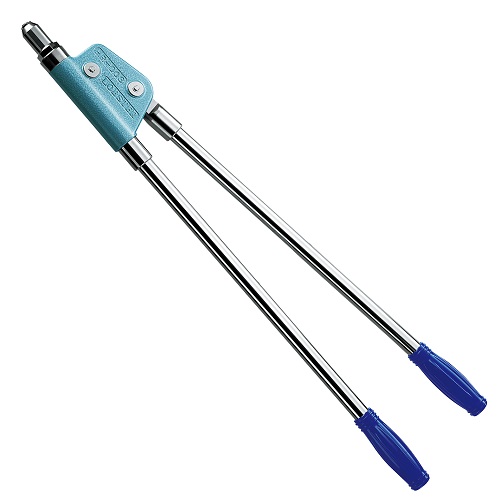

  • HR003B

    Hand Riveter HR2050H

    Hand Riveter HR2050H

    Longer handles and gear mechanism exert greater rivet break power

    ?φ4.8,6.4mm blind rivets in all materials can be used. Also,blind rivets if optical parts (separately sold) are attached.

    Use/Application





    Specifications

    Hand Riveter HR2050H



    Model No.   (Product) weight    size1    size2   size3    size4       Usage jaws     Remark
    HR2050H   1.750g   535mm   37mm   33mm   24mm   Large   ?Heavy Duty
    ?Use Range:φ4.8,6.4mm
    ?Can be used with φ2.4,3.2,4.0mm blind rivets if
    optional parts(separately sold)are attached.
