Issoku Column Model (Flow Type) Air Micrometer Flowmec

Code : No. 3100, No. 3101, No. 3102, No. 3103, No. 3104, No. 3105
Brand : Issoku

Descriptions

Flowmec is a precision relative measuring instrument that measures changed in airflow funning through a slight clearance between workpiece and measuring head as read by the expansion of a float in taper tude. The measuring system consists of flowmec main body (a filter unit and touch tube are standard accessories), measuring head and masters.



Advantages:

1. Superior stability. (less than 1% active reading range.
2. No problem of the float sticking to the upper part of the taper tube.
3. Since the upper damper is made of resin, it won't scratch the float.
4. The magnification setting and zero adjusting knobs and located separately, making operation easy.
5. Taper tubes are easy to remove.
6. Magnifications standards of all taper tubes are the same. (In cases of changing magnification, change the float and scale board).
7. Floats are color coordinated according to magnification standard and are easy to manage. (Blue 10000x, Black 5000x, Red 2000x, Green 1000x)

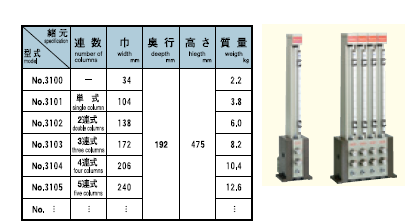

How to fabricate multiple columns:

When performing multiple places measurements, flowmec can be easily fabricated to multiple column by adding to basic units of no. 3000 required and right & left feet.



Indication of number of columns and magnification is required when placing and order.

Example: No. 3003 (Three columns) x 5000



Specifications:

• Filter unit (including a mist separator, OD Ø8 touch joint or valute nipple for inlet and OD Ø8 touch joint for outlet).
• Touch tube, 2m length (for use in cut off valve and filter unit connection)
