Code : SET-A, HB-042, SET-C, MVP-104, FL-240, FL-241, HB-037, SET-E, FL-200, FL-240, FL-241, FL-242, HB-078, BH-370
Brand : SK
MINI BORE SCOPE SET-E
FEATURES
● For viewing inside small diameter holes, inspection
● Body : Plastic
● Maximum magnifi cation : 10x
● Focal Length : 5 ～ 250mm
● Halogen bulb : 2.5V（HB-042）
● Power : Battery handle with 2 "AA" size batteries
included for testing
● Able to inspect inside holes of φ0.3 mm or larger
● Built-in lens allows focusing at a distance from 5 to
250mm
● Halogen bulb for high brightness
● Small and light weight- pocket sized
MINI BORE SCOPE SET-C
FEATURES
● For viewing inside small diameter holes, inspection
● Body : Plastic
● Probe : Stainless steel (Satin fi nish)
● Power : Battery handle with 2 "AA" size batteries
included for testing
● Able to inspect inside holes of φ5mm or larger
● Mirror adapter allows viewing at 0°angle or with
replacement, viewing at 90°angle
● Halogen bulb for high brightness

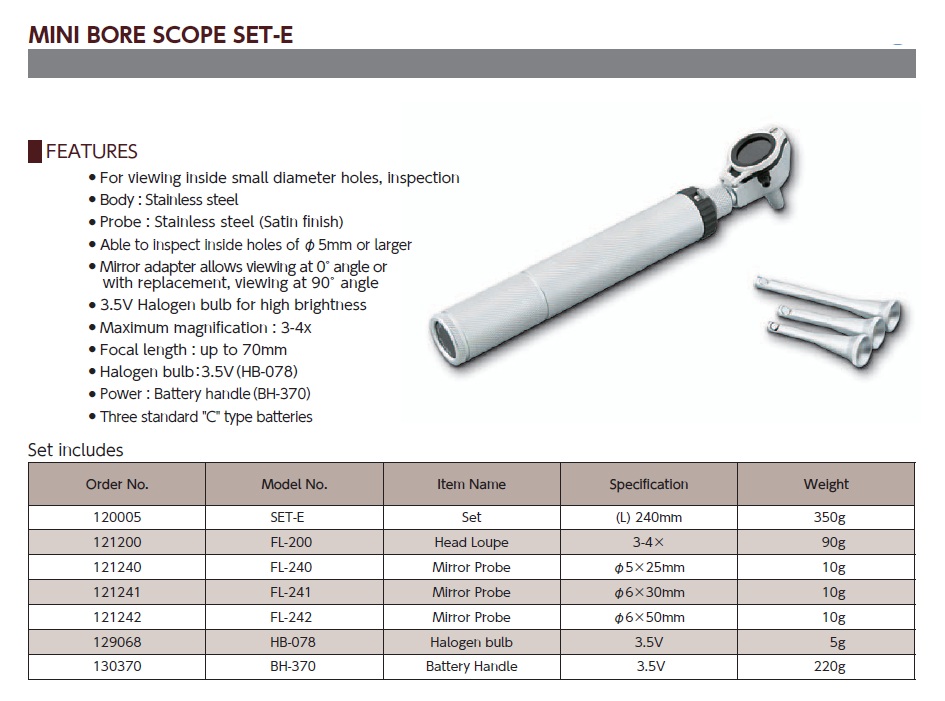

MINI BORE SCOPE SET-E
● For viewing inside small diameter holes, inspection
● Body : Stainless steel
● Probe : Stainless steel (Satin fi nish)
● Maximum magnifi cation : 3-4x
● Focal length : up to 70mm
● Halogen bulb：3.5V（HB-078）
● Power : Battery handle（BH-370）
● Three standard "C" type batteries
● Able to inspect inside holes of φ5mm or larger
● Mirror adapter allows viewing at 0°angle or
with replacement, viewing at 90°angle
● 3.5V Halogen bulb for high brightness
