Kasuga Fan Type Ionizer

Code : KD-740B
Brand : Kasuga

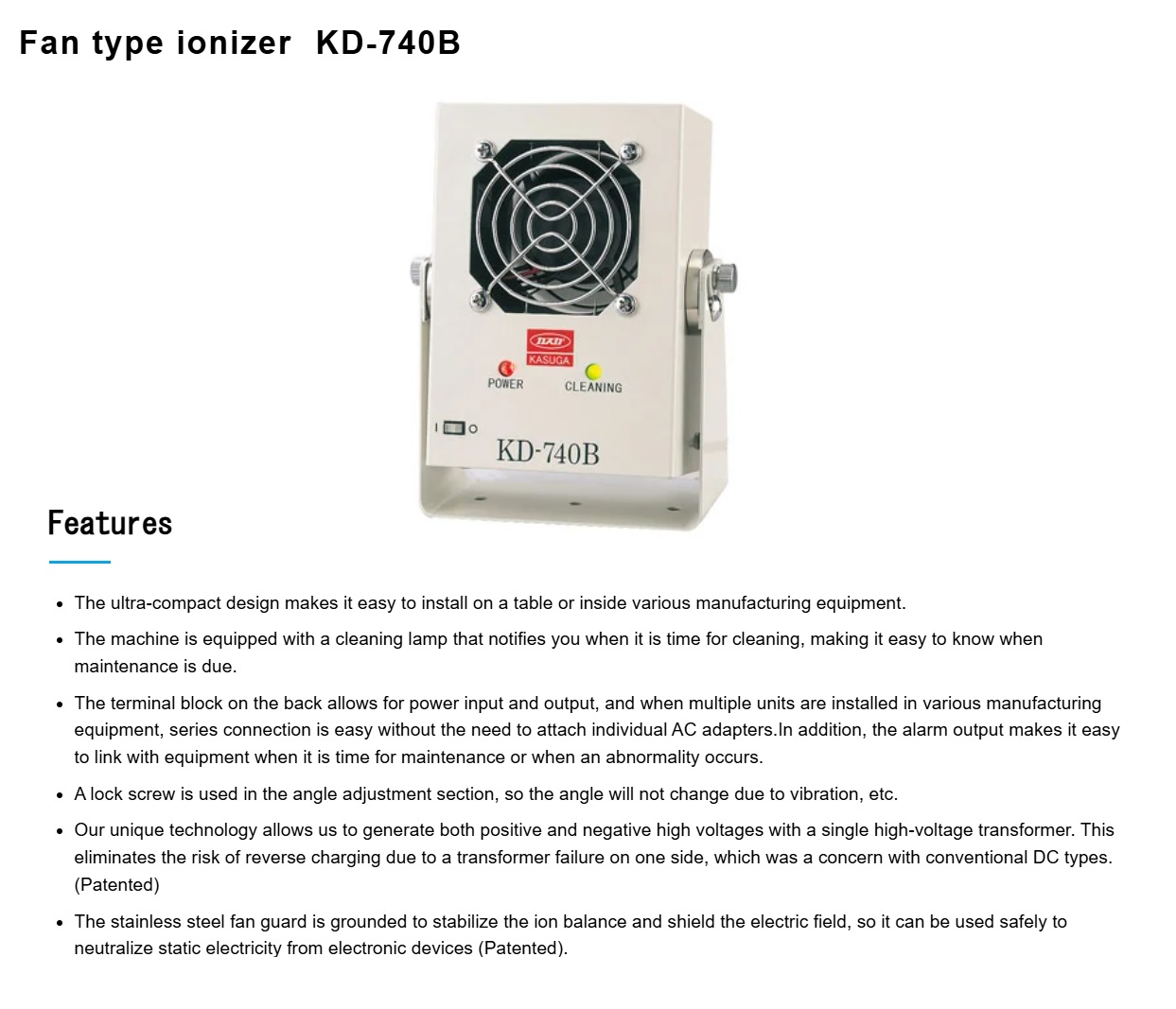

Kasuga Fan Type Ionizer

KD-740B

Features

• The ultra-small dimensions of the unit permit easy installation on a bench or in a manufacturing device.
• The lamp signals when the unit needs cleaning, ensuring that you never miss the appropriate time for maintenance.
• Power input and output can be made via the terminal block on the rear. This allows easy series connection of multiple units without an AC adapter for each, which is convenient when installing several units in a manufacturing device. The alarm output also makes it easy to interlock the unit with a manufacturing device so that signals indicating the need for maintenance or occurrence of abnormality are transmitted to the device.
• The locking screw used for the angle adjustment mechanism prevents change of angle due to vibration or other such factors.
• Our proprietary technologies permit use of a single high-voltage transformer for generating high-voltage power, both positive and negative. This eliminates the need for concern about opposite charge, a problem faced by conventional DC-type units that would be caused by failure of one of two transformers. (Patented)
• This ionizer can be used safely for ionization from electronic devices because its stainless steel fan guard is grounded and therefore stabilizes the ion balance and shields the electric field. (Patented)

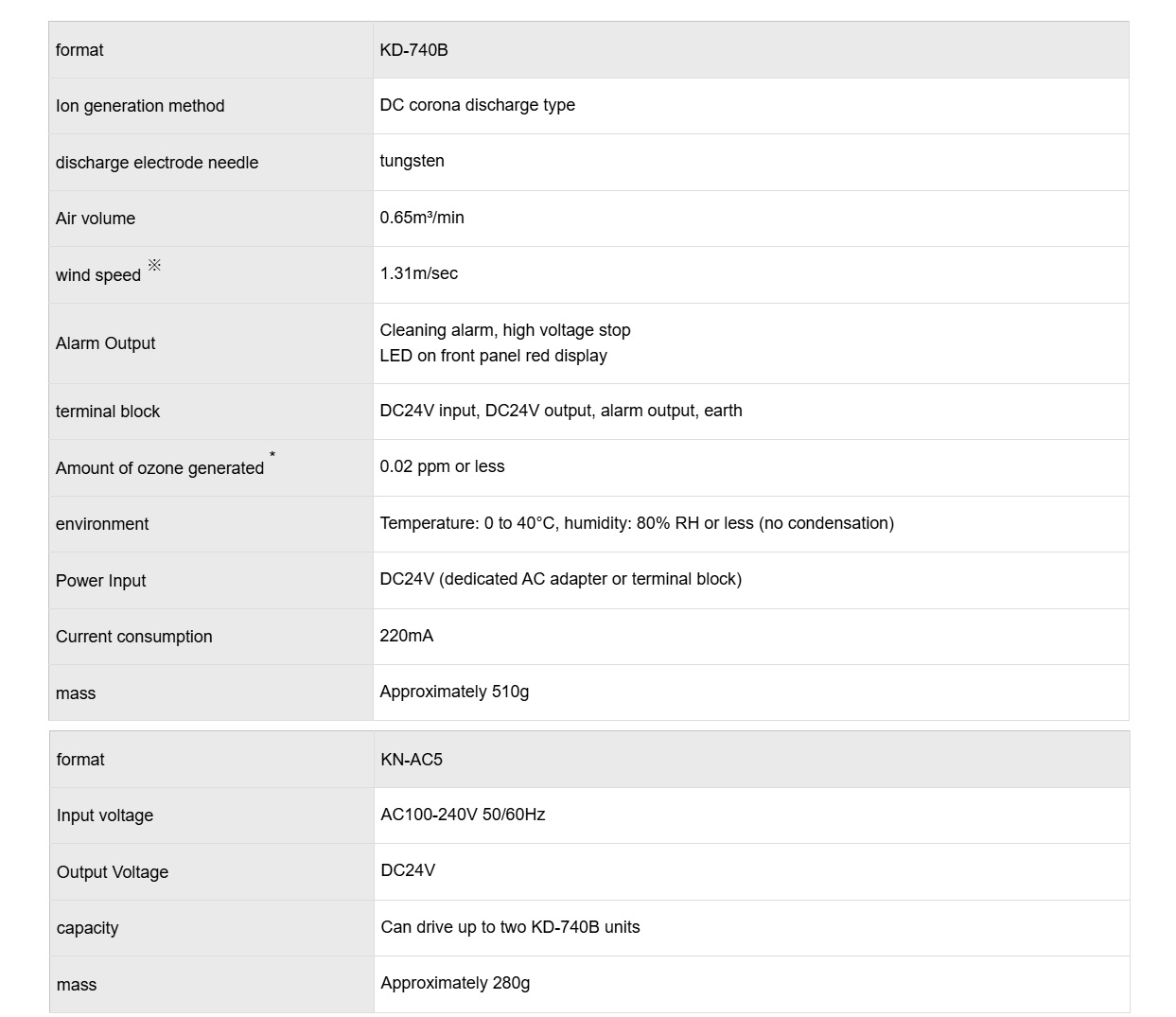

Specifications

Main unit of the ionizer

Model	KD-740B
Ion generation method	DC corona discharge
Discharging electrode needle	Tungsten
Air volume	0.65m3/min
Airflow speed*	1.31m/sec
Alarm output	The LED lamp on the front panel flashes red to indicate cleaning alarm or high-voltage stop
Terminal block	DC24V input, DC24V output, alarm output, ground
Amount of ozone production*	0.02 ppm or less
Operating environment	Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition	DC24V (dedicated AC adapter or the terminal block)
Consumption current	220mA
Mass	Approx. 510g

*Measurement distance: 300mm

Dedicated AC adapter(Options)

Model	AC adapter for KD-740B
Input conditions	AC100 - 240V　50/60Hz
Output voltage	DC24V
Capacity	Capable of driving up to two units of KD-740B
Mass	Approx. 270g
