Kasuga Fan Type Ionizer

Code : ITI-02
Brand : Kasuga

Kasuga Fan Type Ionizer

ITI-02

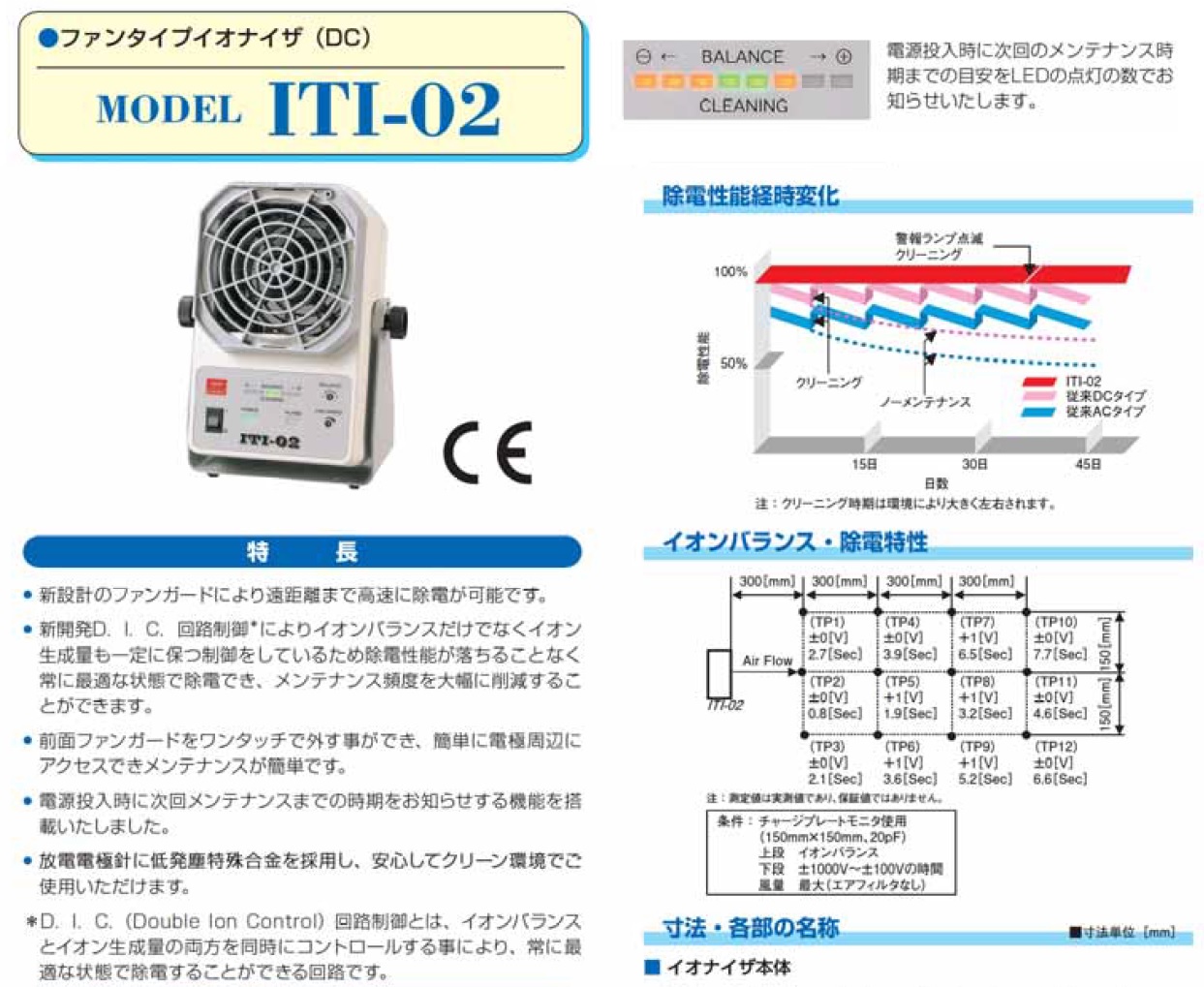

Features

• The newly designed fan guard enables high-speed ionization even from a distance.
• Control by the newly developed D.I.C. circuit* not only maintains a certain ion balance but also ensures a consistent amount of ion generation. This allows ionization in the optimal condition at all times, with no degradation of ionization performance. Frequency of maintenance can thus be significantly reduced.
• The front fan guard can easily be removed with a single touch, which allows simple access to the area around the electrodes, ensuring easy maintenance.
• When the ionizer is turned on, it displays the remaining interval before the next maintenance.
• Electrode needles made of a special alloy with low dust emission allow use of the unit in a clean-room environment.

When the unit is turned on, it displays the remaining interval before the next maintenance by the number of LED lamps lit.

*The D.I.C. (Double Ion Control) circuit maintains the optimal condition for ionization by simultaneously controlling the ion balance and amount of ion generation.

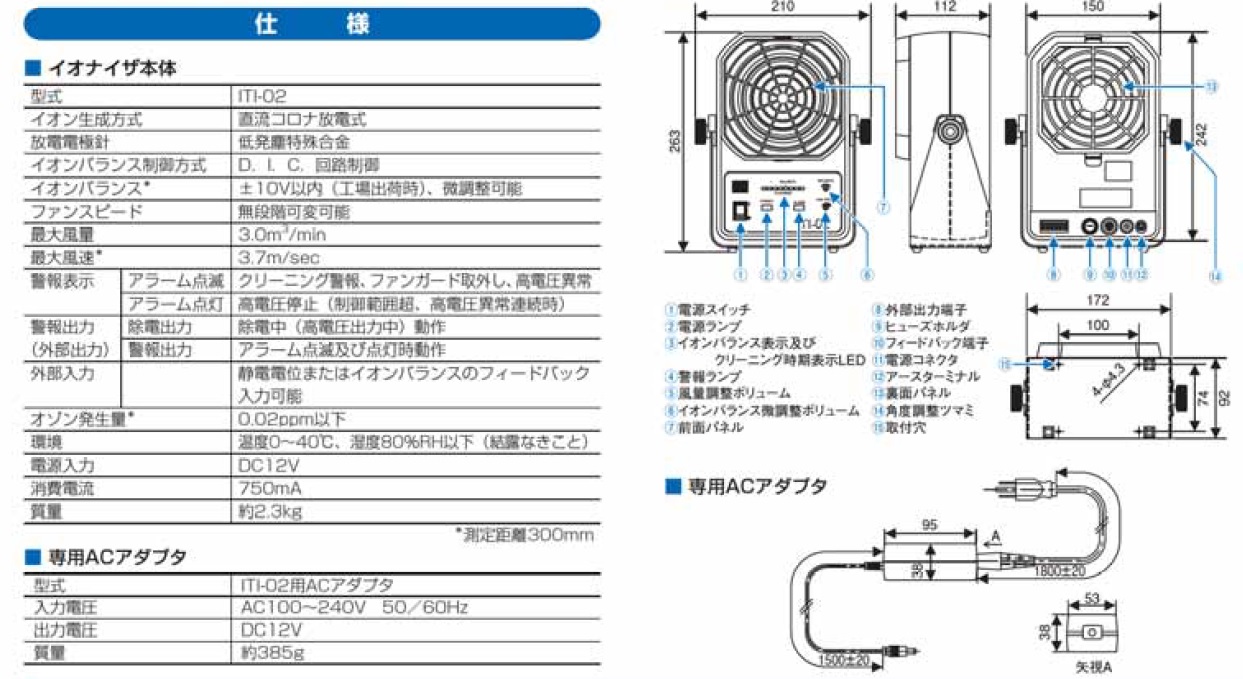

Specifications

Main unit of the ionizer

Model		ITI-02
Ion generation method		DC corona discharge
Discharging electrode needle		Special alloy with low dust emission
Method of ion balance control		Control by D.I.C. circuit
Ion balance*		Within ±10V (at time of factory shipment), permits fine tuning
Fan speed		Variable (non-step)
Maximum air volume		3.0m3/min
Maximum airflow speed*		3.7m/sec
Alarm display	Alarm lamp blinking	Cleaning alarm, fan guard removal, high-voltage alarm
	Alarm lamp staying lit	high-voltage stop (when voltage exceeds the control range or the high-voltage alarm continues)
Alarm output (External output)	Ionization output	During ionization (high-voltage output)
	Alarm output	While alarm lamp blinks or stays lit
External input		Permits feedback input of electrostatic potential or ion balance
Amount of ozone production*		0.02 ppm or less
Operating environment		Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition		DC12V
Consumption current		750mA
Mass		Approx. 2.3kg

^*Measurement distance: 300mm

Dedicated AC adapter

Model	AC adapter for ITI-02
Input conditions	AC100 - 240V　50/60Hz
Output voltage	DC12V
Mass	385g
