Kasuga - Kasuga Gun Type Ionizer

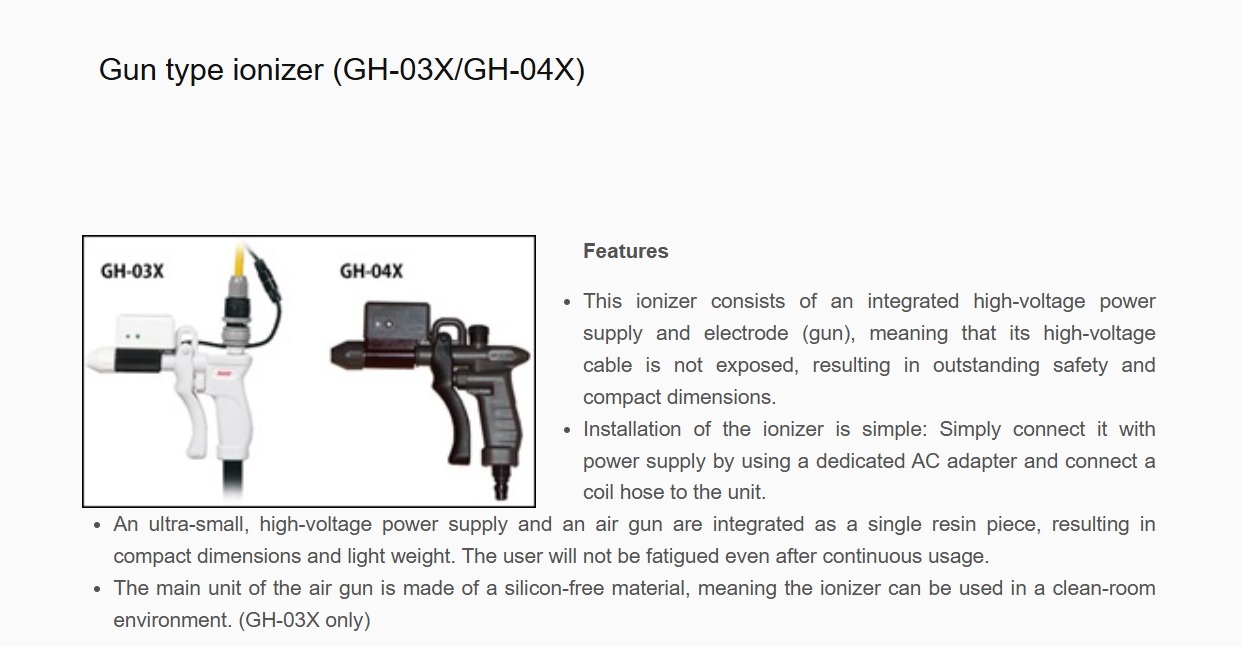

Kasuga Gun Type Ionizer

Code : GH-03X, GH-04X
Brand : Kasuga









Features

  • This ionizer consists of an integrated high-voltage power supply and electrode (gun), meaning that its high-voltage cable is not exposed, resulting in outstanding safety and compact dimensions.
  • Installation of the ionizer is simple: Simply connect it with power supply by using a dedicated AC adapter and connect a coil hose to the unit.
  • An ultra-small, high-voltage power supply and an air gun are integrated as a single resin piece, resulting in compact dimensions and light weight. The user will not be fatigued even after continuous usage.
  • The main unit of the air gun is made of a silicon-free material, meaning the ionizer can be used in a clean-room environment. (GH-03X only)

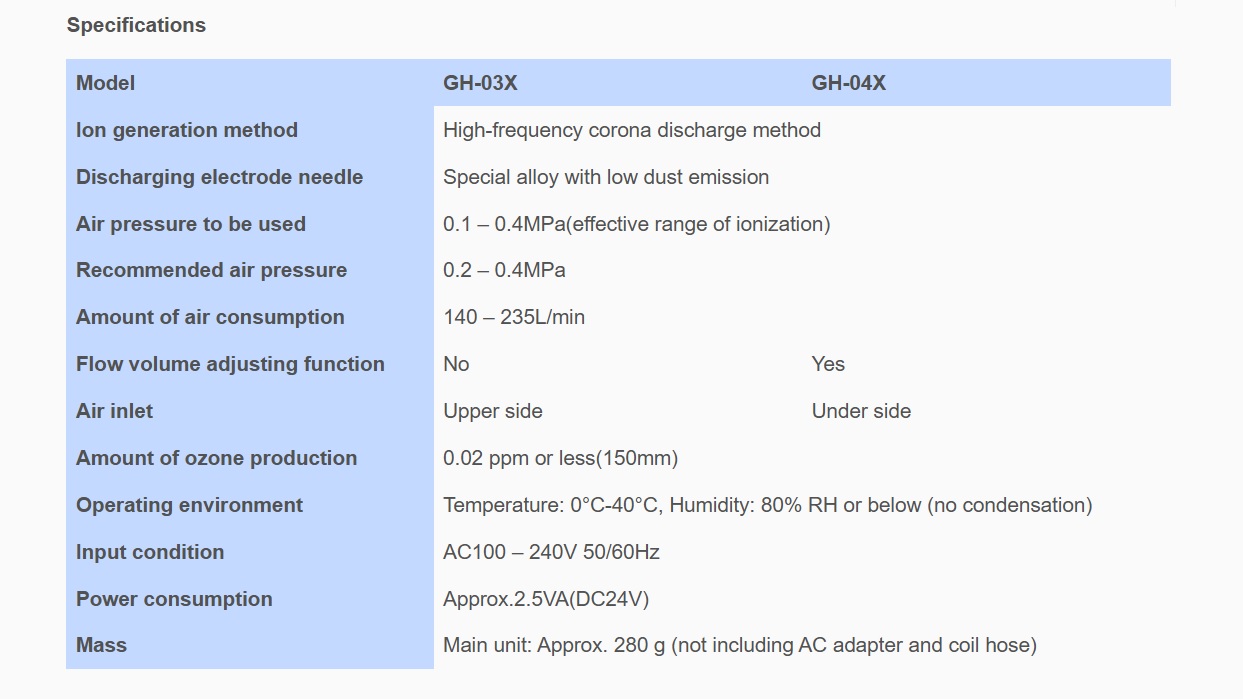

Specifications

ModelGH-03XGH-04X
Ion generation method High-frequency corona discharge method
Discharging electrode needle Special alloy with low dust emission
Air pressure to be used 0.1 - 0.4MPa(effective range of ionization)
Recommended air pressure 0.2 - 0.4MPa
Amount of air consumption 140 - 235L/min
Flow volume adjusting function No Yes
Air inlet Upper side Under side
Amount of ozone production 0.02 ppm or less(150mm)
Operating environment Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition AC100 - 240V　50/60Hz
Power consumption Approx.2.5VA(DC24V)
Mass Main unit: Approx. 280 g (not including AC adapter and coil hose)
