Kasuga - Kasuga Fan Type Static Eliminator


Kasuga Fan Type Static Eliminator

Code : KD-410, KD-410B
Brand : Kasuga


Kasuga Fan Type Static Eliminator

KD-410, KD-410B

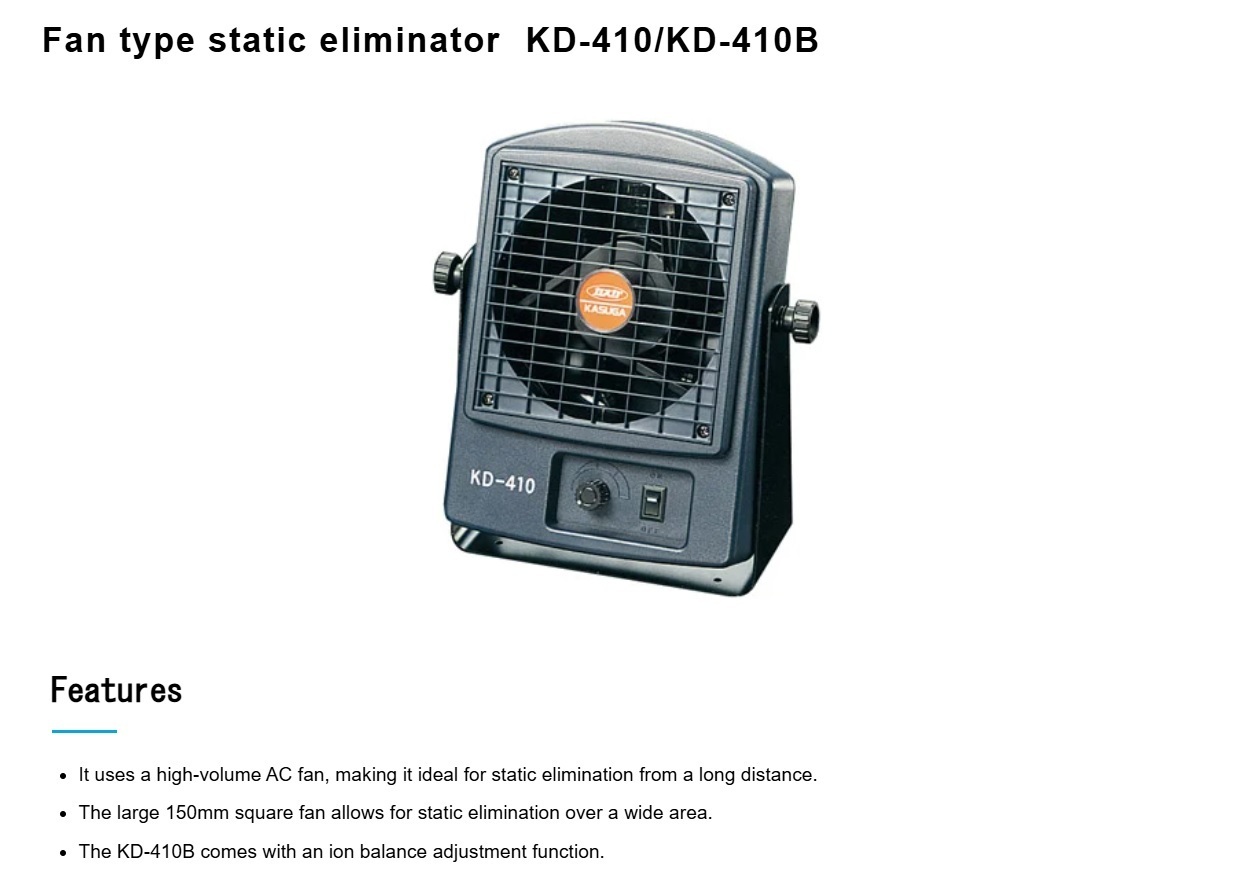

Features

  • Optimized for ionization from a long distance, featuring an AC fan with high air volume
  • Large 150 x 150 fan enables ionization over a wide area
  • KD-410B comes with ion balance adjustment function

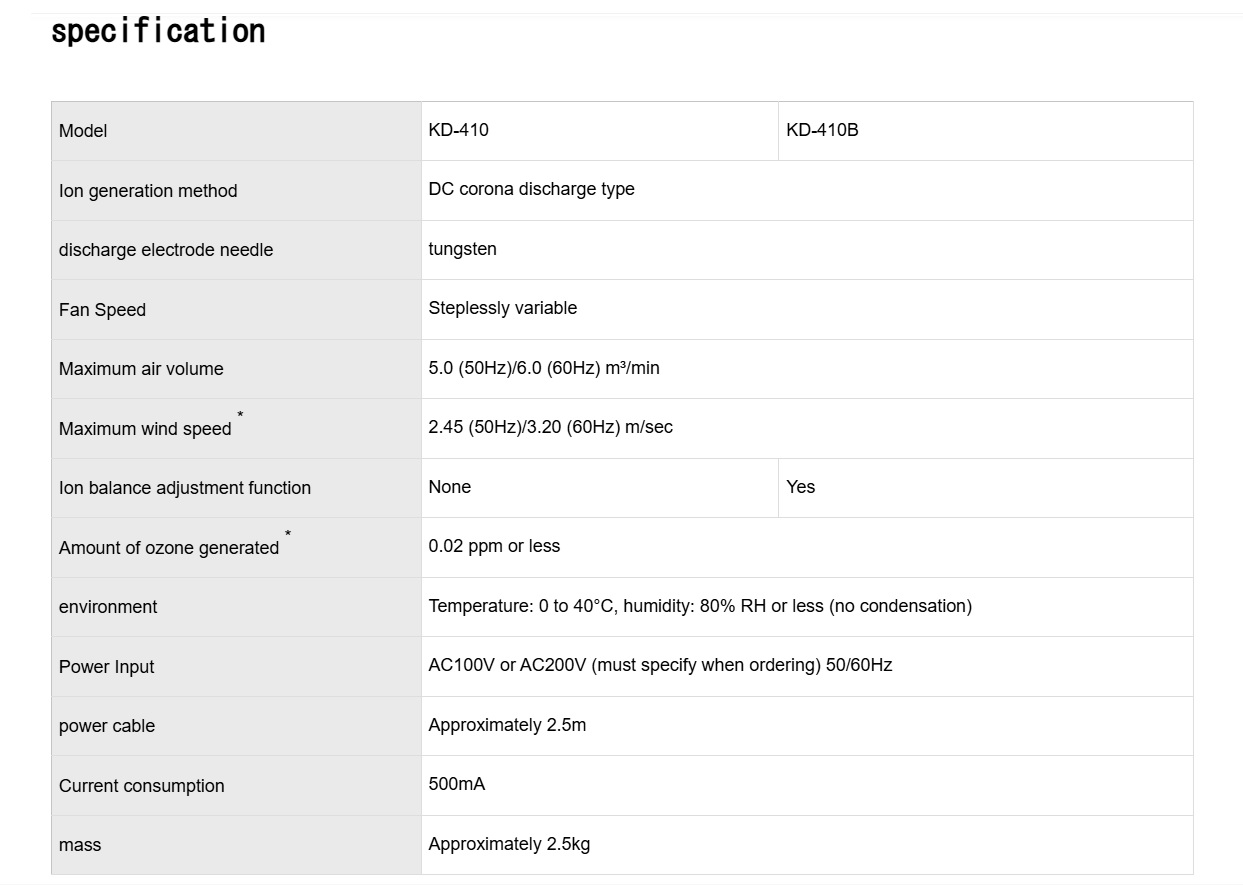

Specifications

Specifications

Model KD-410 KD-410B
Ion generation method DC corona discharge
Discharging electrode needle Tungsten
Fan speed Variable (non-step)
Maximum air volume 5.0(50Hz)/6.0(60Hz) m3/min
Maximum airflow speed* 2.45(50Hz)/3.20(60Hz) m/sec
Ion balance adjustment function No Yes
Amount of ozone production* 0.02 ppm or less
Operating environment Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition AC100V 50/60Hz
Power cable 2.5m
Consumption current 500mA
Mass 2.5kg

*Measurement distance: 300mm

Ionization performance(KD-410)


Dimensions [mm] and names of parts
