Algol Handy Analog Force Gauge

Code : AN-10, AN-20, AN-30, AN-50, AN-100, AN-200, AN-300, AN-500, NK-10, NK-20, NK-30, NK-50, NK-100, NK-200, NK-300, NK-500, AK-1, AK-2, AK-3, AK-5, AK-10, AK-20, AK-30, AK-50
Brand : Algol

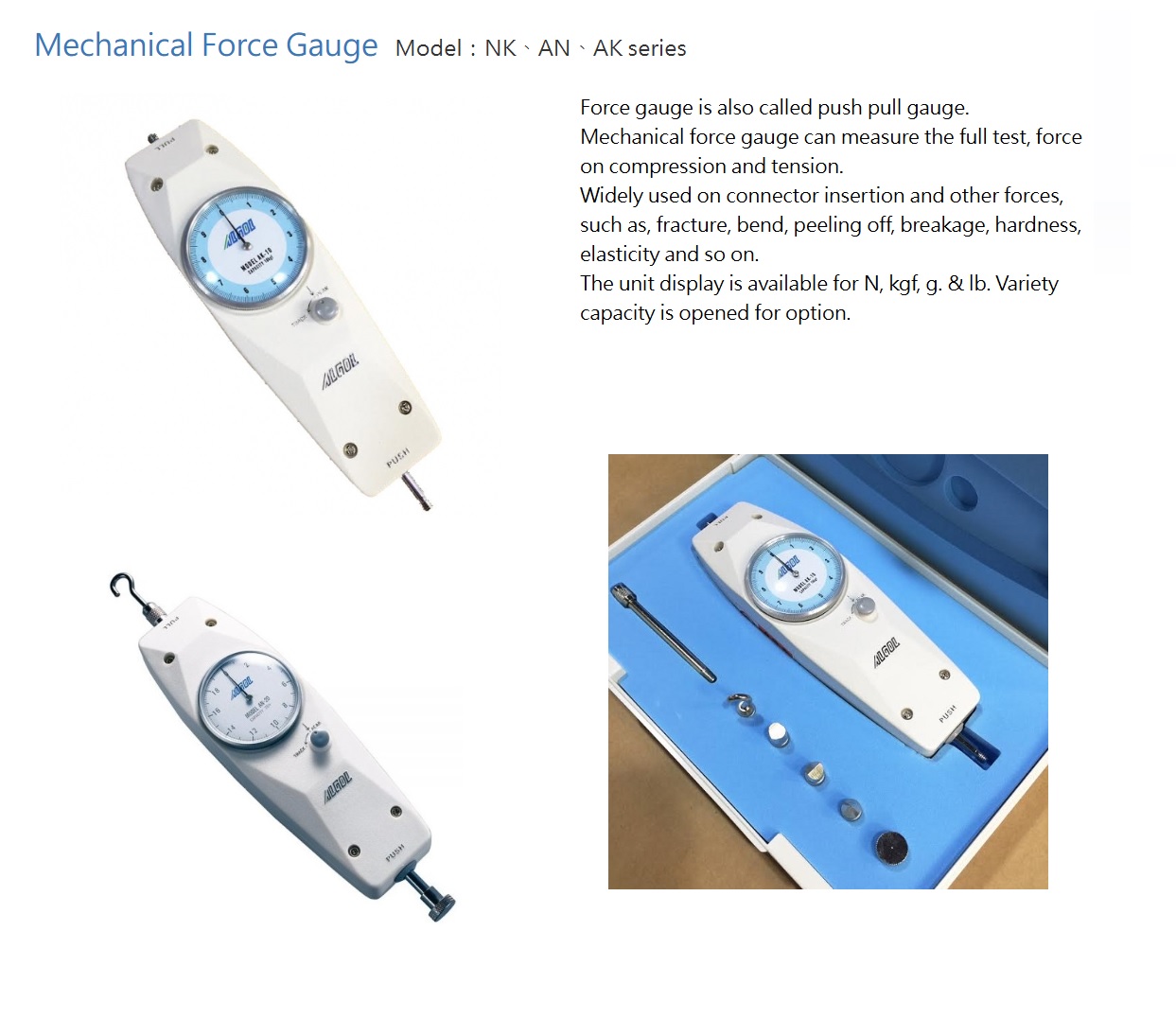

The AN / NK / AK series are analog force gauges with compact size and high accuracy.They are easy to operate and handy to carry out. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force) to the tracking indication (the needle moves in accordance with change of force). As three types of scales are available and each type has measurement capacity variation you can choose the most suitable graduation from the range of 10N(1 kgf) to 500N(50 kgf) for your measurement purpose.

Characteristic

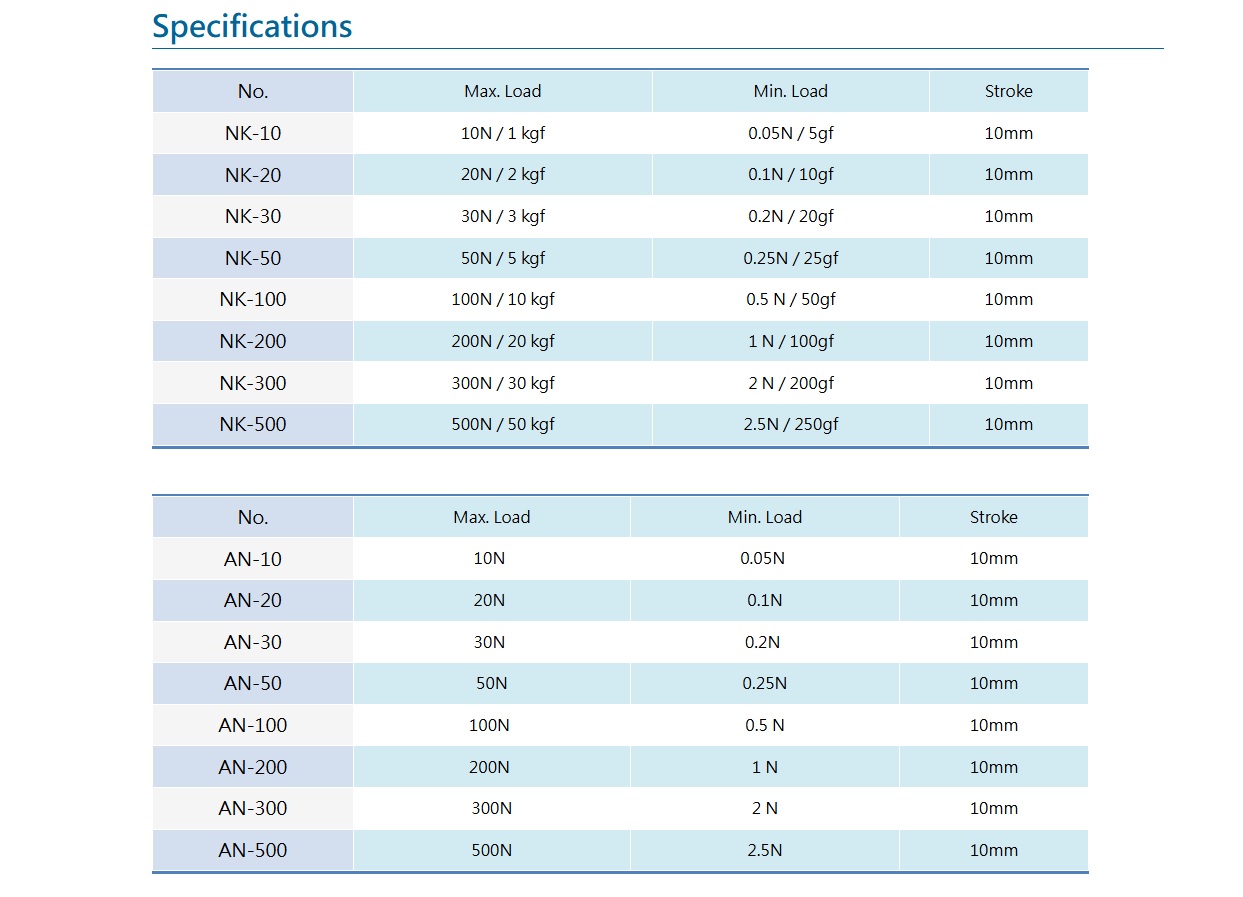

Specification:

NO.	Max. Load	Min. Load	Storke
AN-10	10N	0.05N	10mm
AN-20	20N	0.1N	10mm
AN-30	30N	0.2N	10mm
AN-50	50N	0.25N	10mm
AN-100	100N	0.5N	10mm
AN-200	200N	1N	10mm
AN-300	300N	2N	10mm
AN-500	500N	2.5N	10mm



NO.	Max. Load		Min. Load		Storke
NK-10	10N	1kgf	0.05N	10gf	10mm
NK-20	20N	2kgf	0.1N	20gf	10mm
NK-30	30N	3kgf	0.2N	20gf	10mm
NK-50	50N	5kgf	0.25N	50gf	10mm
NK-100	100N	10kgf	0.5N	100gf	10mm
NK-200	200N	20kgf	1N	200gf	10mm
NK-300	300N	30kgf	2N	200gf	10mm
NK-500	500N	50kgf	2.5N	500gf	10mm
