Asahi Pneumatic Receiver Gauges

Code : 385
Brand : Asahi Gauge






Model 385

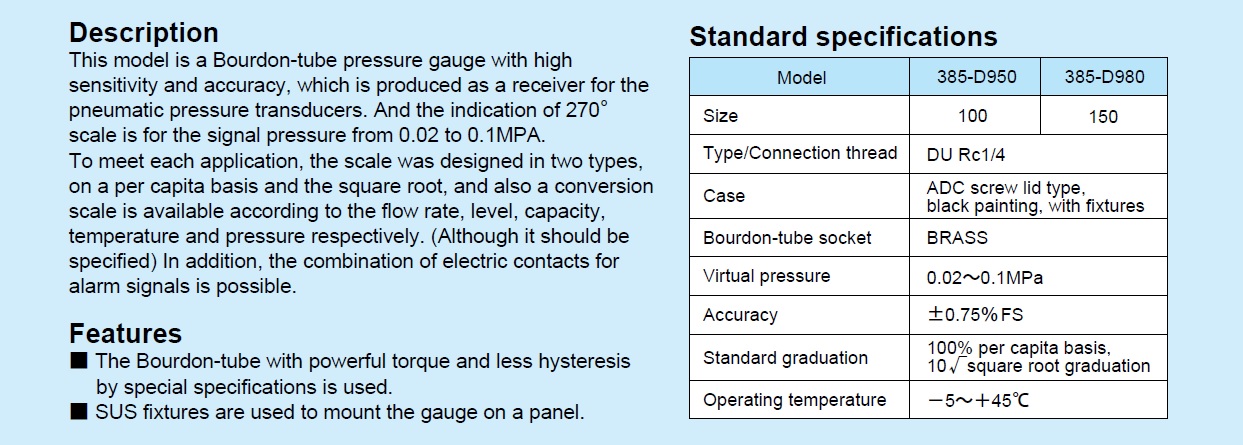

This gauge receives output signals from a pneumatic transmitter/transducer and indicates these signals in analogue values. It is capable of uneven graduations like those for pressure, flow rate or temperature. Embedded in a panel.

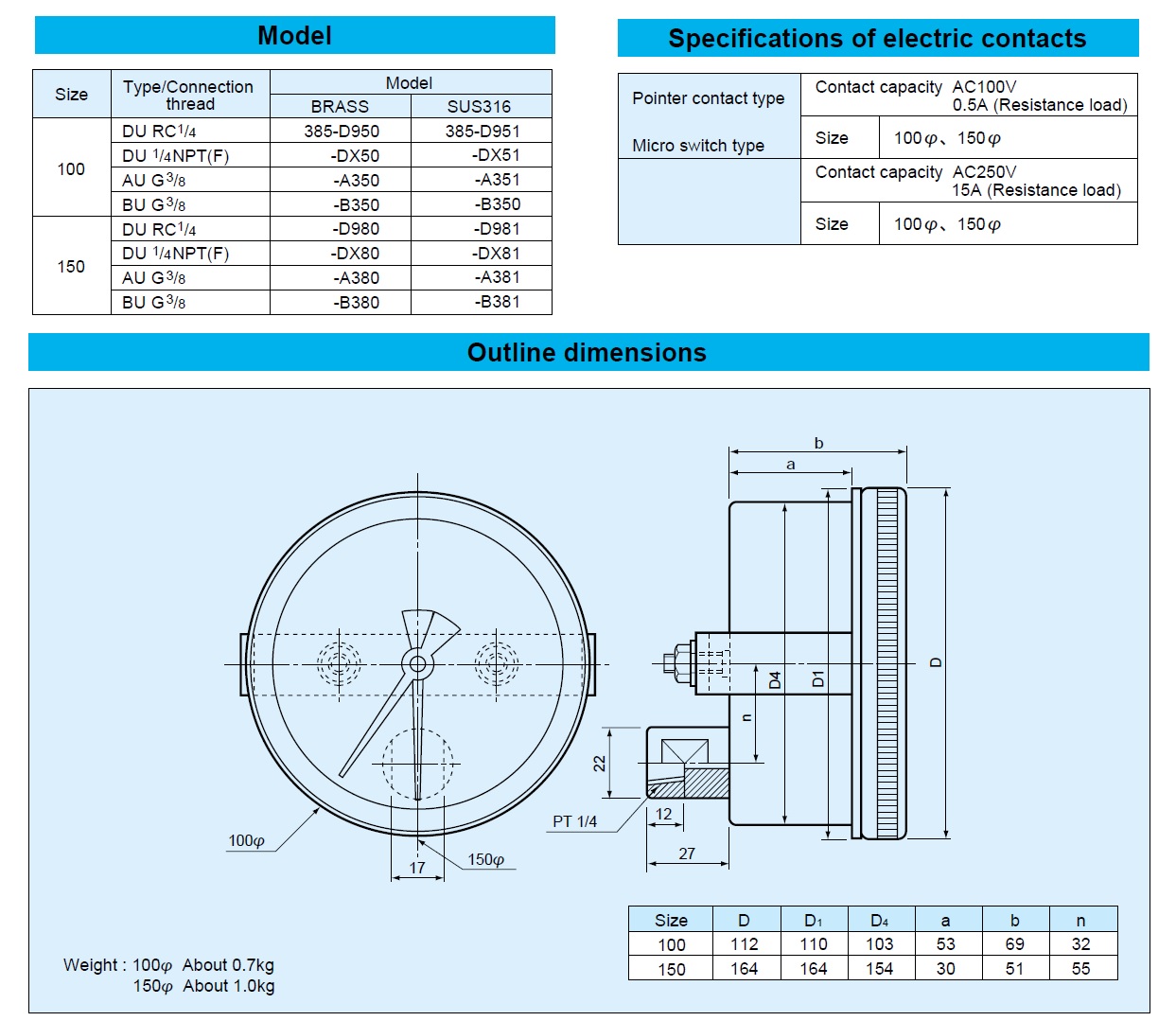

Size (dial diameter)  100 mm, 150 mm
Indication rage  0.02 to 0.1 MPa
Scale  100% even graduation, square-root graduation, etc.
Accuracy  ±0.75% f.s



download(PDF)
