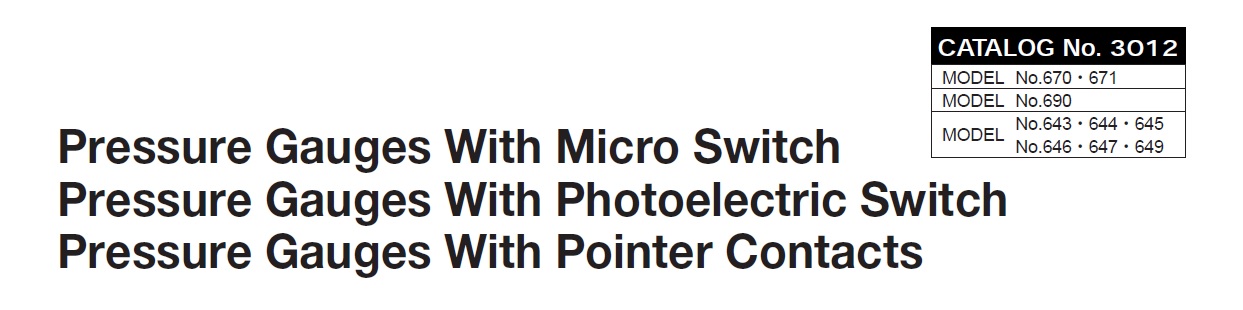

Asahi Pressure Gauges with Pointer Contacts, Pressure Gauges with Microswitch, Pressure Gauges with Photoelectric Switch

Code : 649, 643, 644, 645, 646, 647, 670, 671, 690, 692
Brand : Asahi Gauge






No.649  643  644  645  646  647

This gauge has a simple platinum contact.

Size (dial diameter) 100 mm, 150 mm
Measuring range 0.05 to 200 MPa
Contact capacity 100 V AC, 0.5 A.

The contact capacity of Models 647 and 648 may be amplified by the joint use of a relay

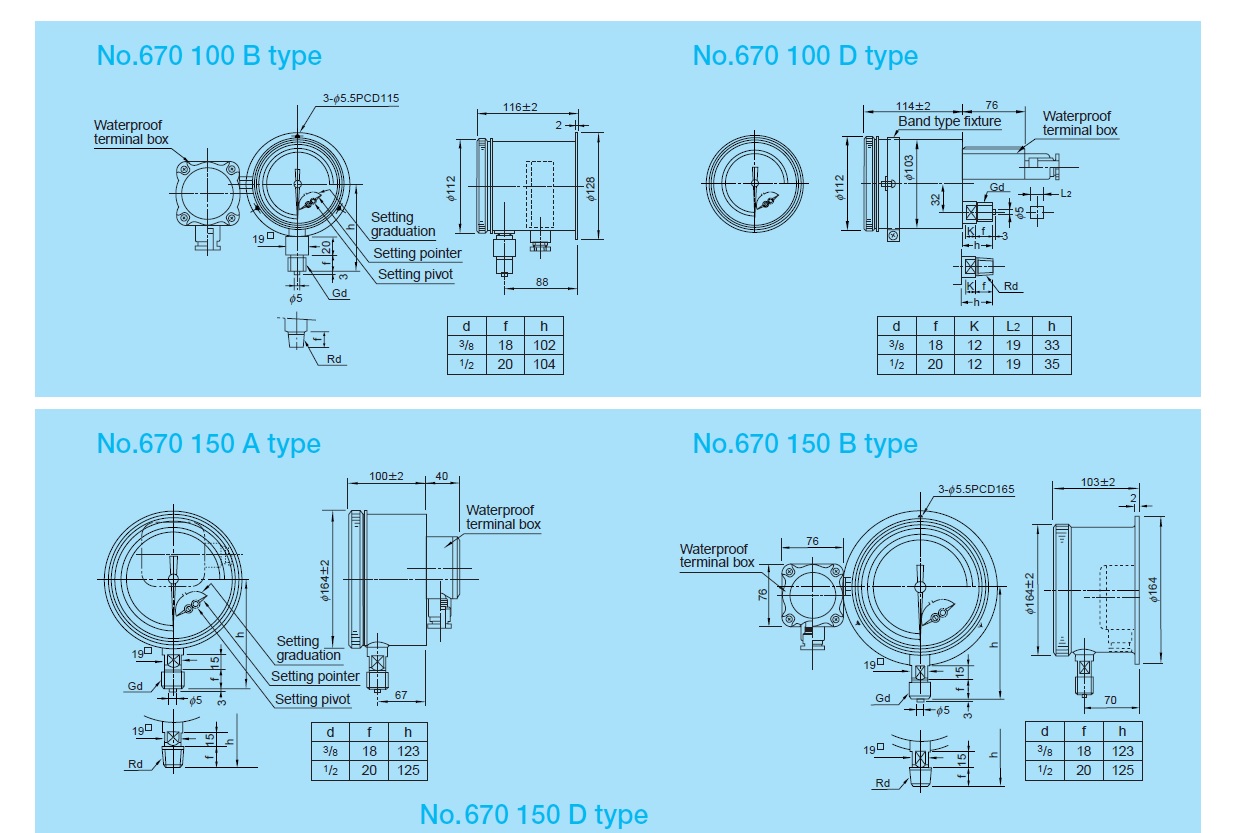

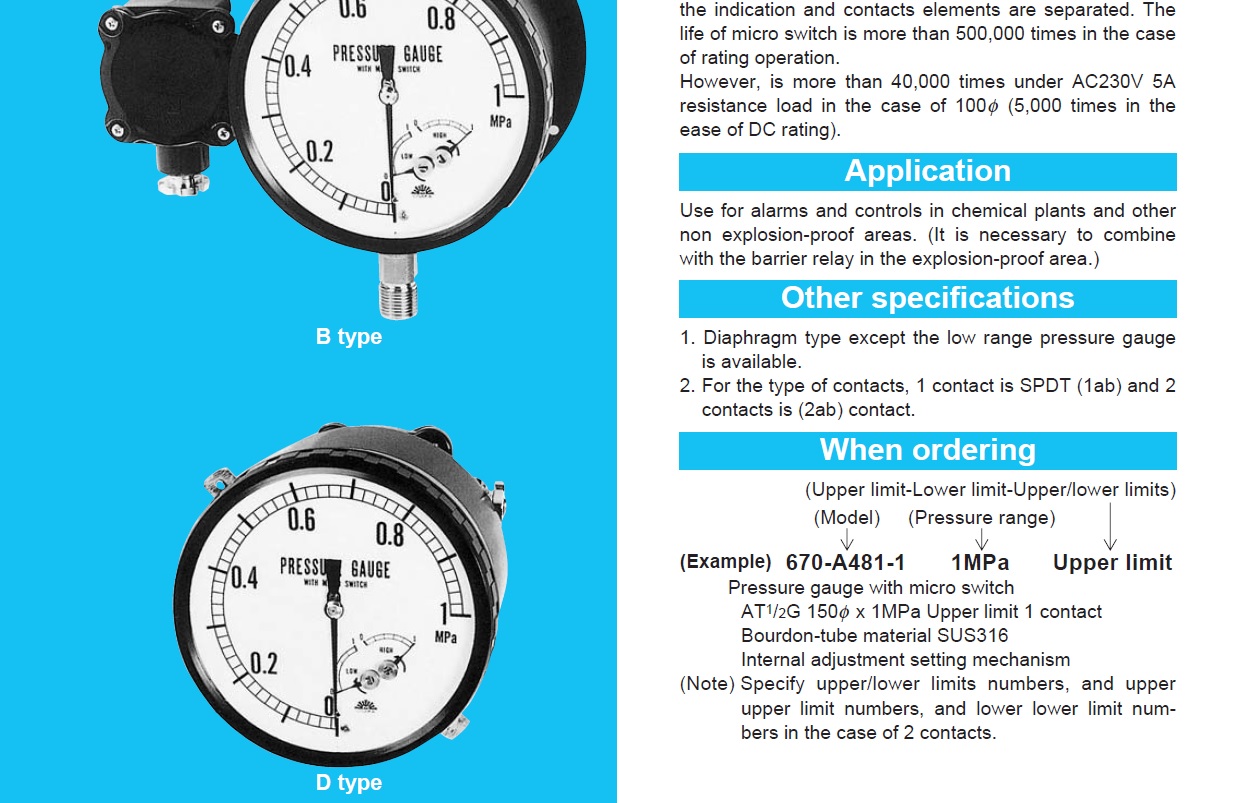

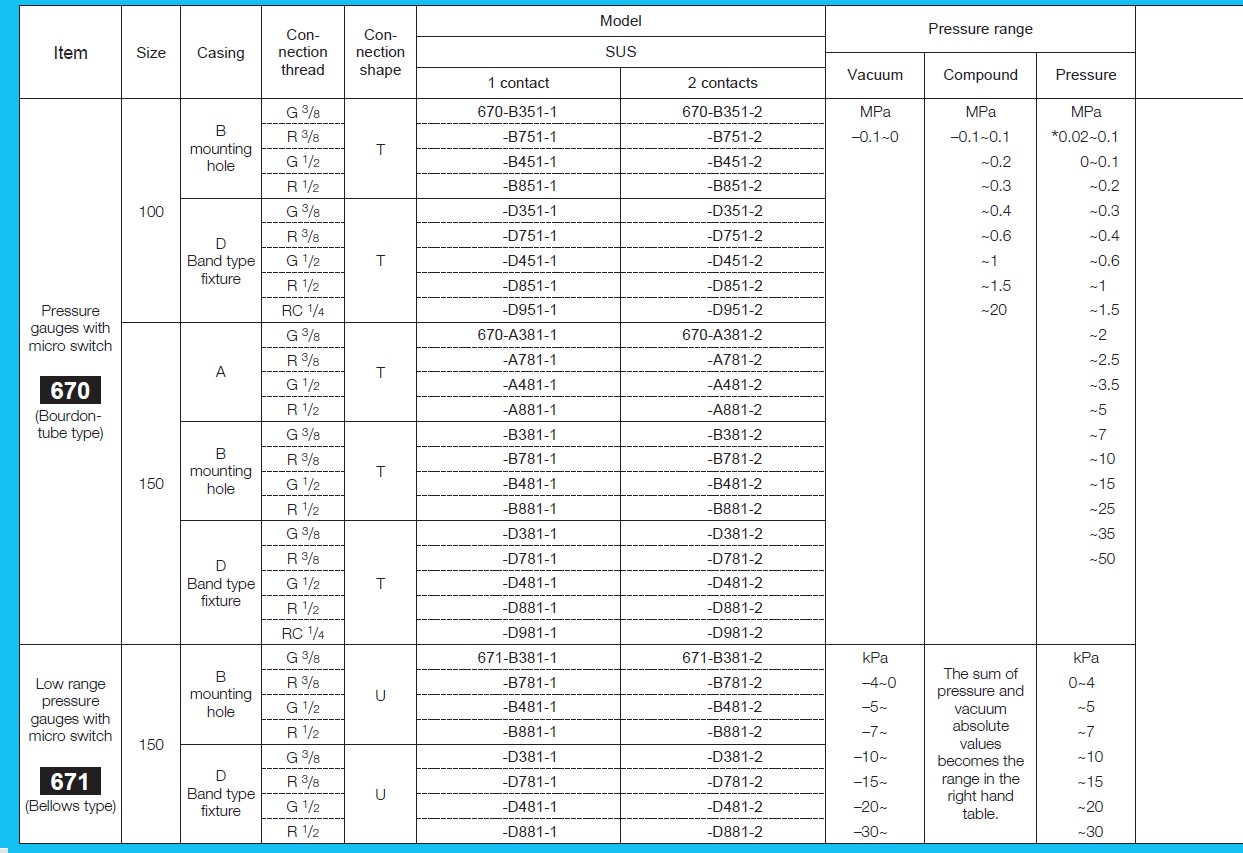

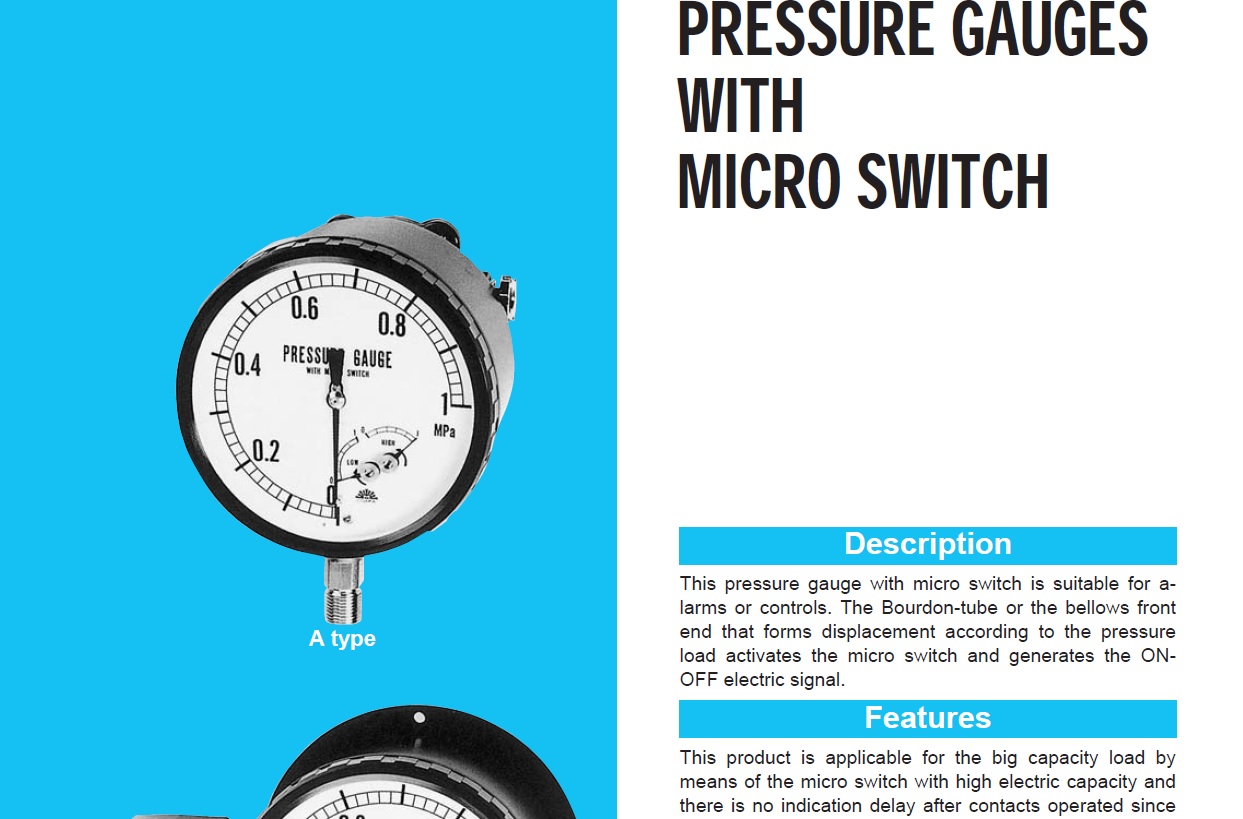

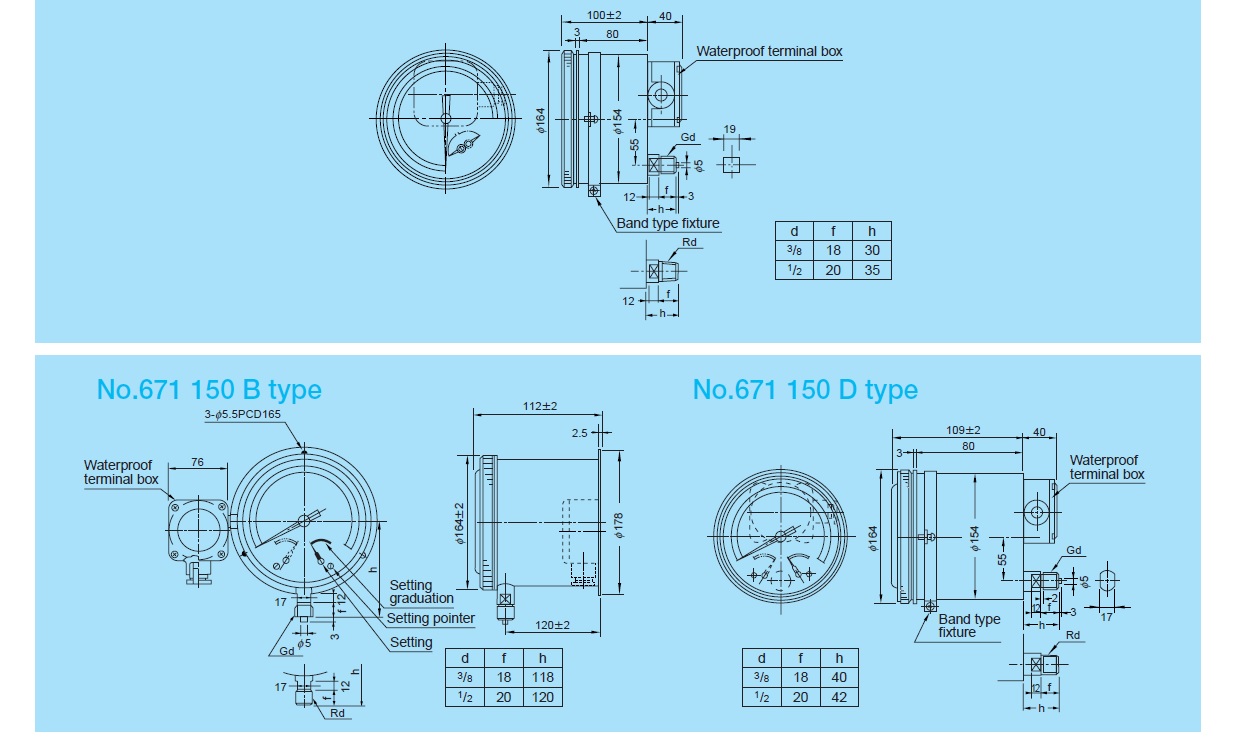

No.670  671

A microswitch is used for the contact to directly activate the gauge.

Size (dial diameter)  100 mm, 150 mm
Measuring range  0.1 to 50 MPa
Contact capacity  AC250V 15A

Note: The measuring range may be changed depending on the size.

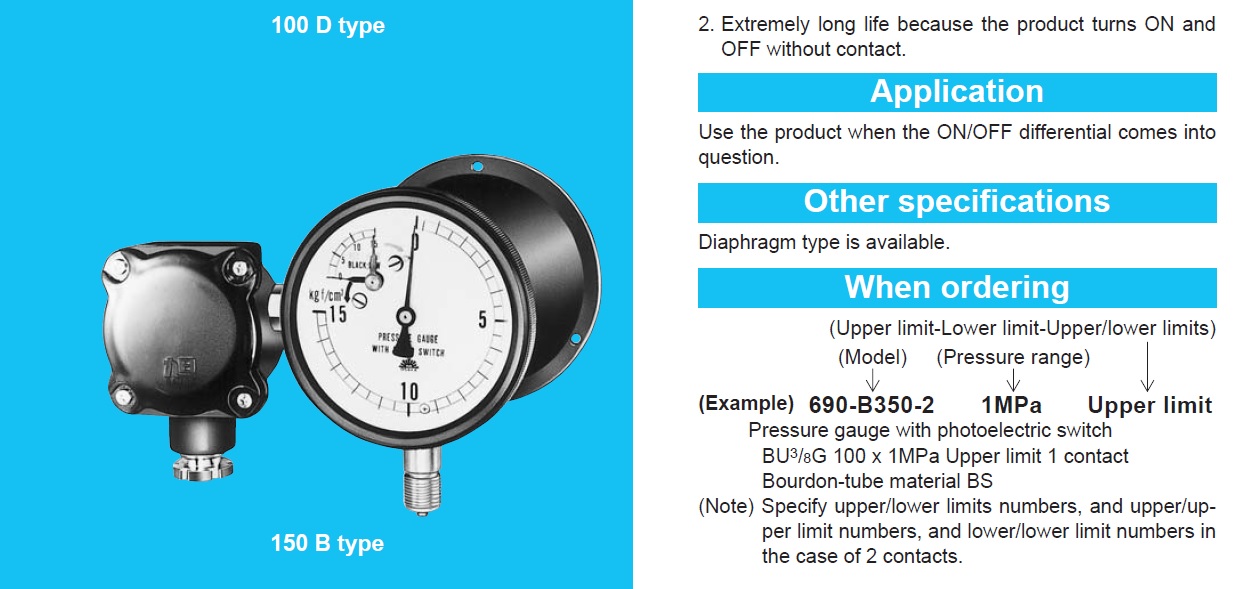

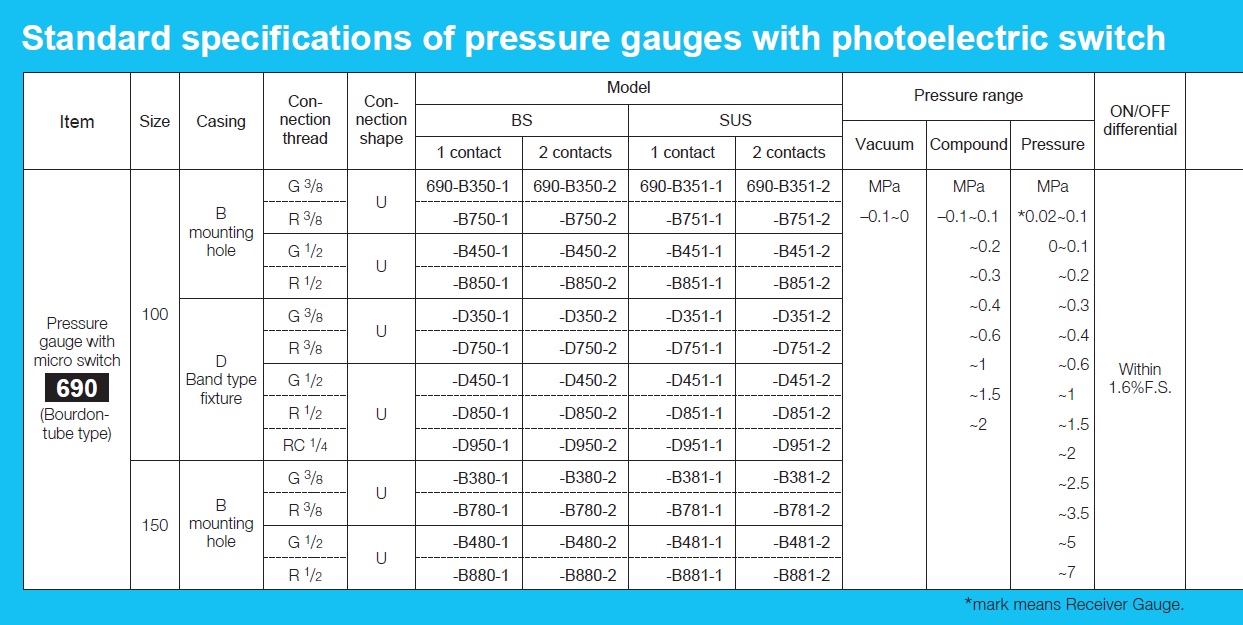

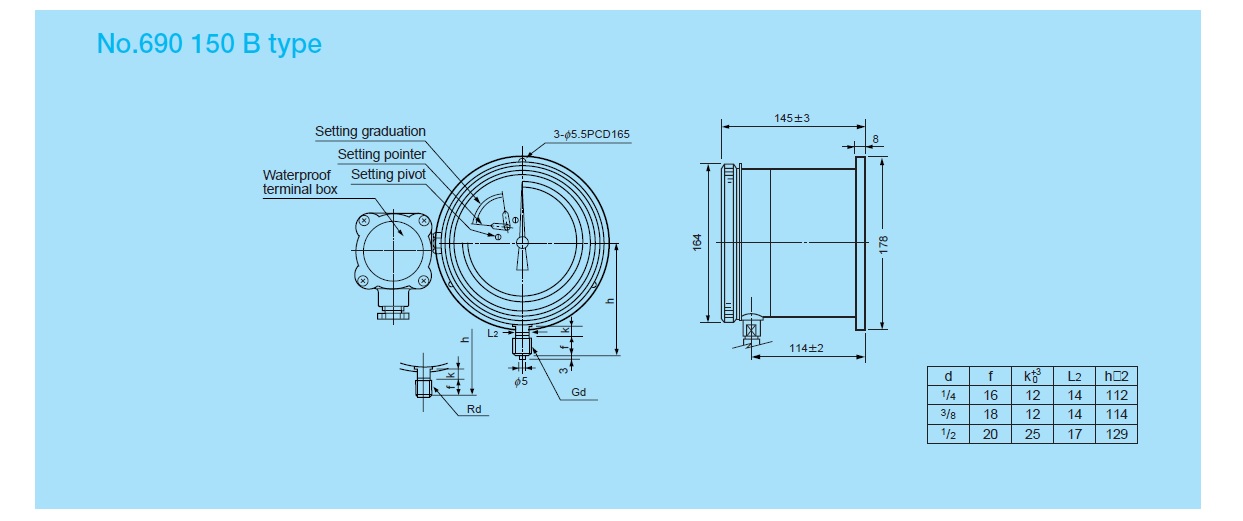

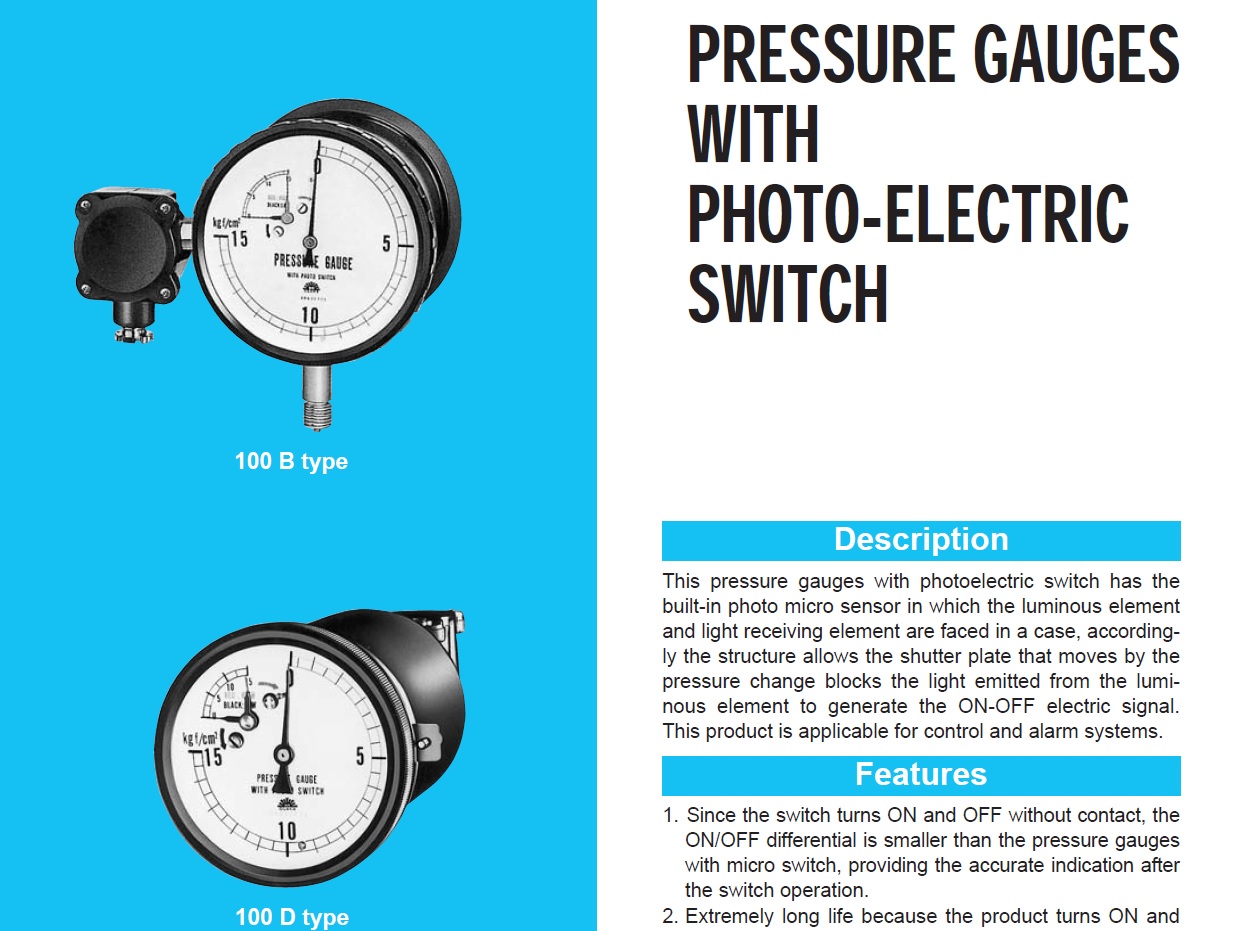

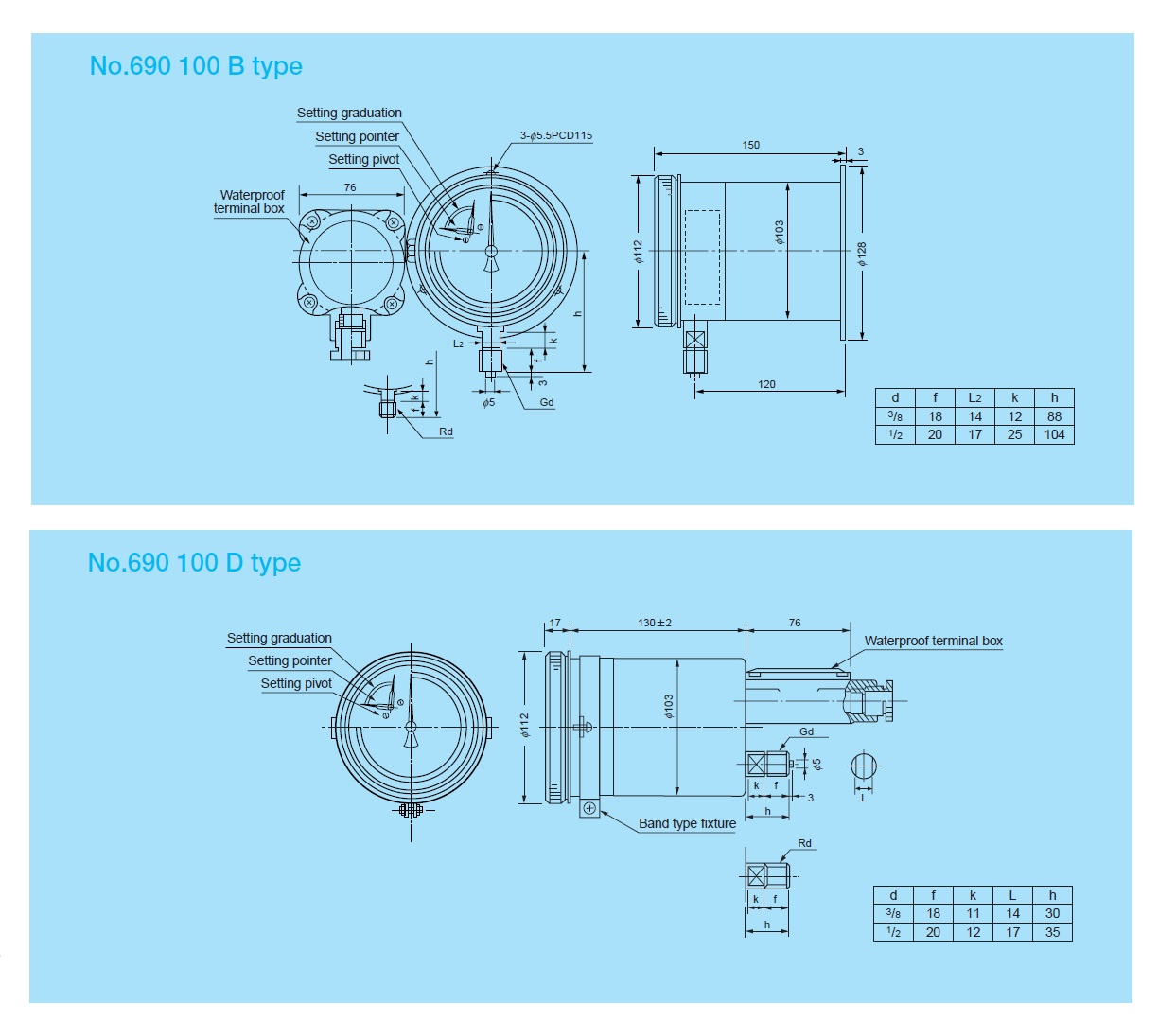

No.690  692

These gauges are equipped with a photoelectric switch for the contact to increase the contact accuracy and life.

Size (dial diameter)  100 mm, 150 mm, square
Measuring range  0.1 to 7 MPa
Wet-part materials  super-alloy, SUS 316
