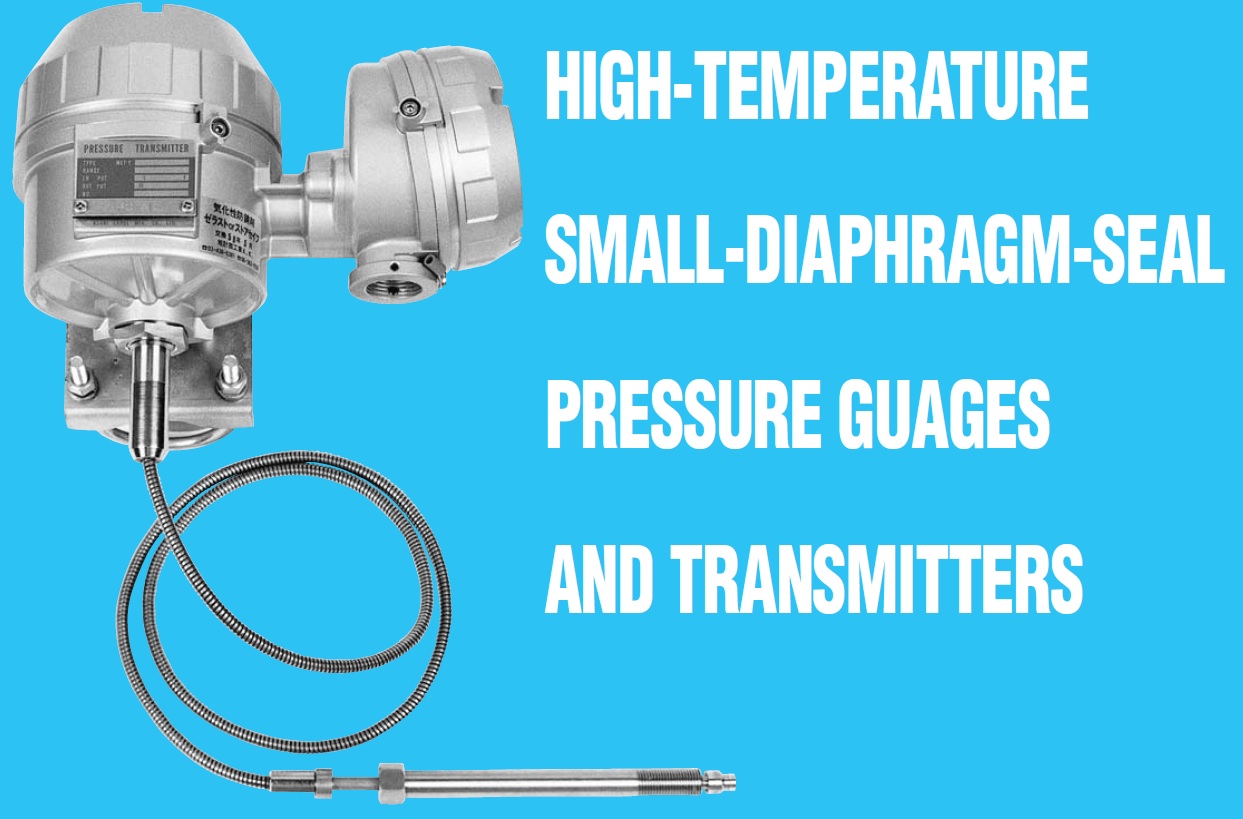

Asahi High-temperature Small-diaphragm-seal Pressure Gauges and Transmitters

Code : 810, 811, 812, 813, MES, MEJ, TTS, TTJ, MAS
Brand : Asahi Gauge


Models 810, 811, 812, 813, MES, MEJ, TTS, TTJ, MAS

These pressure gauges are ideal for the measuring of plastic fluids whose temperature, pressure and viscosity are high.

Diaphragms (diameter) 8 mm, 15 mm, 18 mm
Size (dial diameter) 100 mm, 150 mm
Measuring ranges  10 to 70 MPa
Joint  Made to order in accordance with the shapes of the places where the product is installed and/or used







download(PDF)
