Swan Liner

Code : Swan Liner
Brand : Swan



Liner Liner

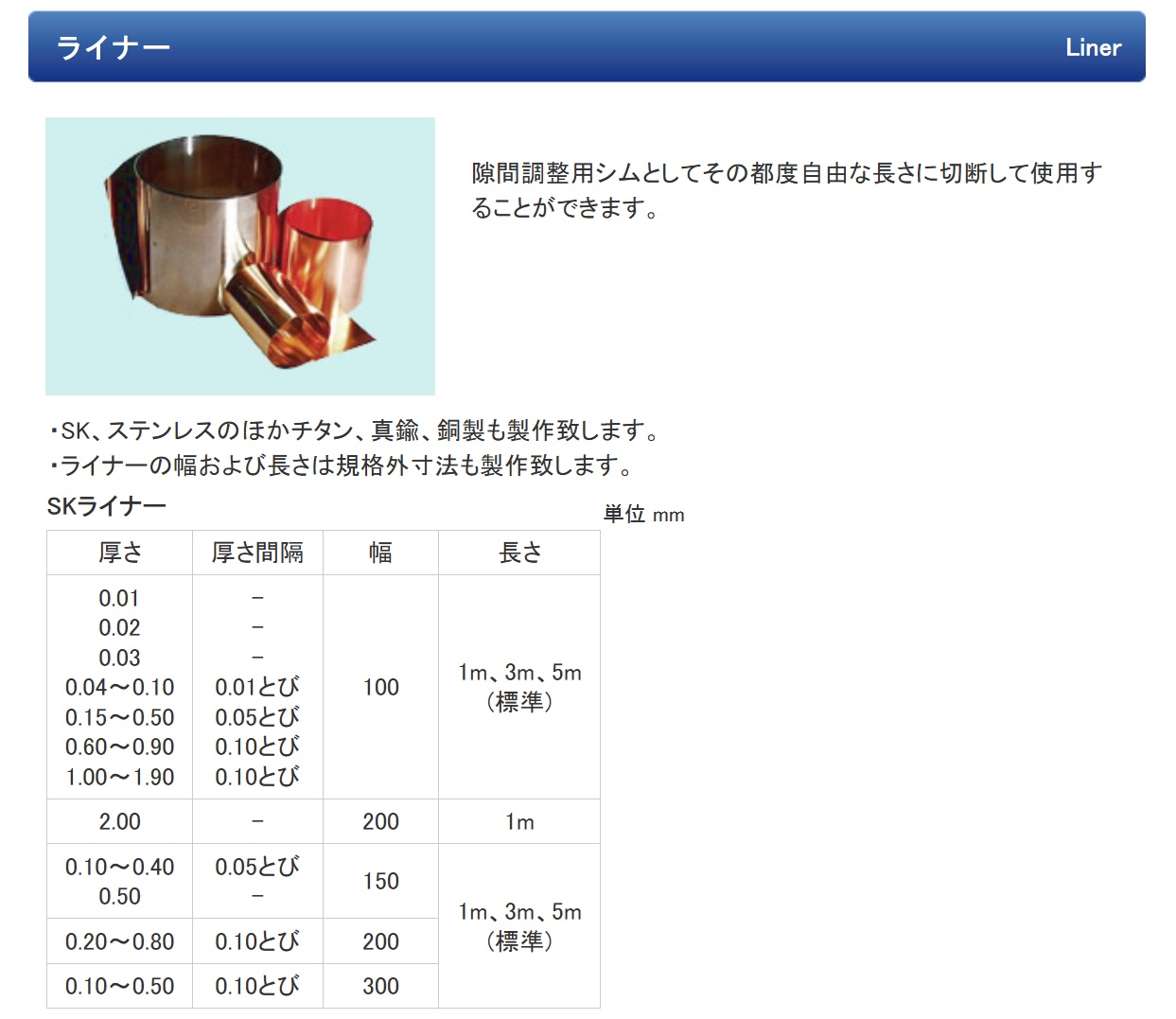

It can be used by cutting the free length each time as clearance adjustment shims.

Titanium, brass, copper We also manufacture other SK, of stainless steel.
, The width and length of the liner We can also provide non-standard dimensions.

SK liner

Unit mm

Thickness	Interval thickness	Width	Length
0.01 0.02 0.03 0.04 to 0.10 0.15 to 0.50 0.60 to 0.90 1.00 to 1.90	- - - 0.01 kite kite 0.05 0.10 kite kite 0.10	Hundred	1M, 3M, 5m (standard)
2.00	-	200	1m
0.10-0.40 0.50	0.05 kite -	150	1M, 3M, 5m (standard)
0.20 to 0.80	0.10 kite	200
0.10 to 0.50	0.10 kite	300

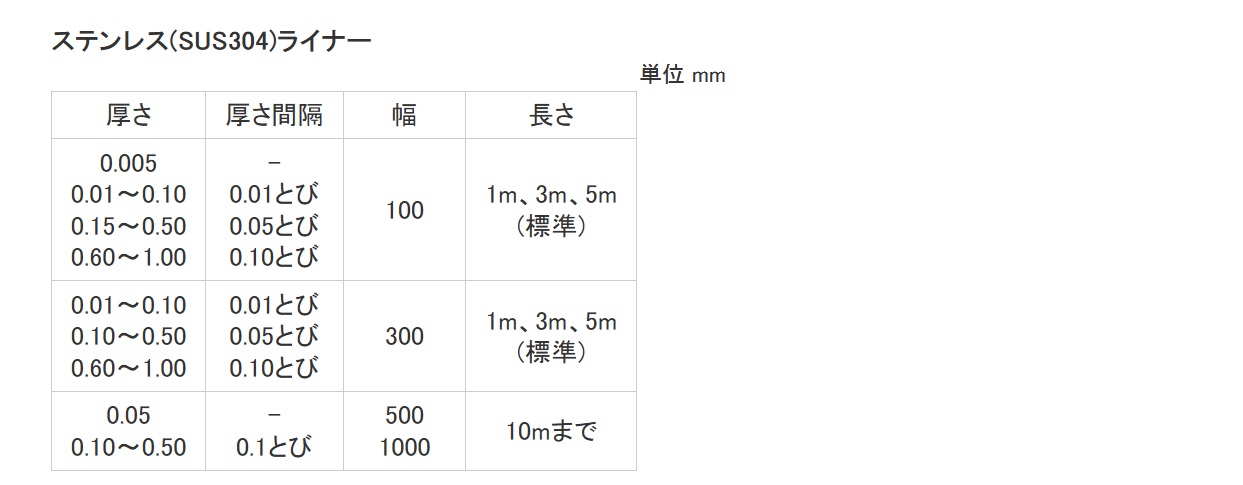

Stainless steel (SUS304) liner

Unit mm

Thickness	Interval thickness	Width	Length
0.005 0.01-0.10 0.15 to 0.50 0.60 to 1.00	- 0.01 kite kite 0.05 0.10 kite	Hundred	1M, 3M, 5m (standard)
0.01-0.10 0.10 to 0.50 0.60 to 1.00	0.01 kite kite 0.05 0.10 kite	300	1M, 3M, 5m (standard)
0.05 0.10-0.50	- 0.1 kite	500 1000	Up to 10m

(The jump 0.009 0.001, and there is also a kite 0.005 0.10 or less.)
