Sanei - Sanei Panel mount printer

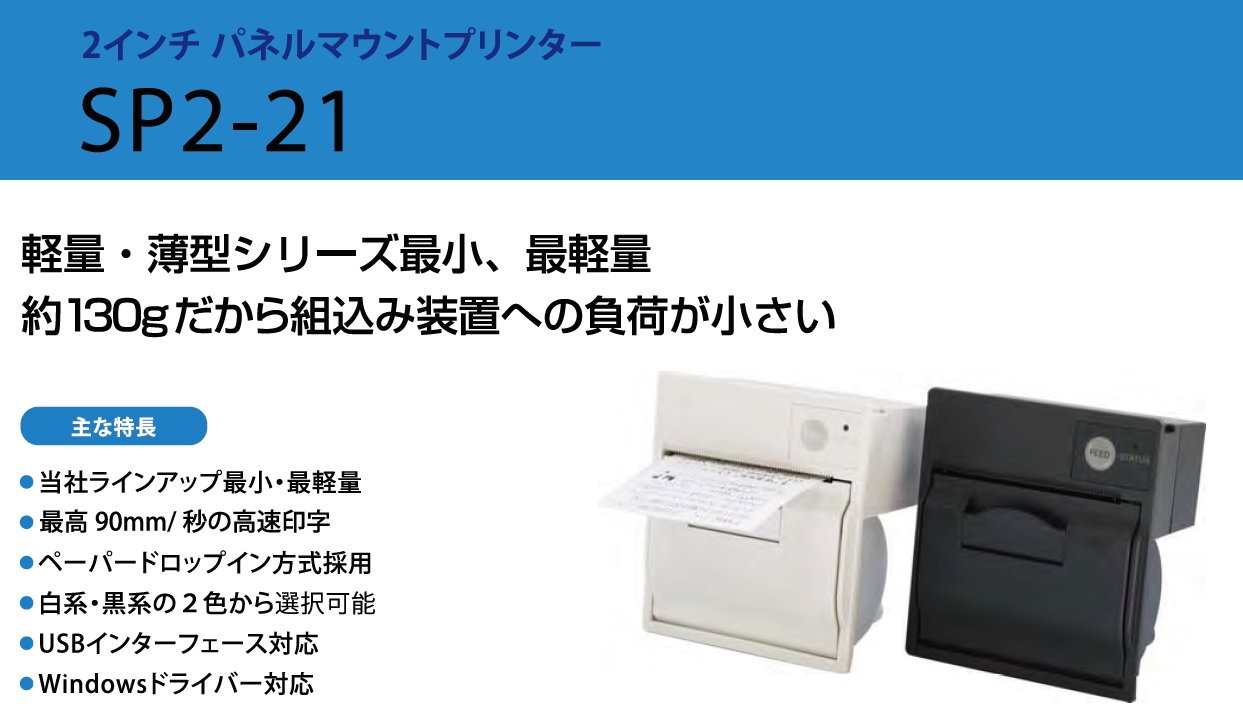

Sanei Panel mount printer

Code : SP2-21
Brand : Sanei


Panel mount printer

SP2-21SP1-21SP2-21SP2-21SP2-21
Features
  • Small profile & Light weight
  • 90mm/sec high speed printing
  • Drop in paper loading
  • White and black color
  • Possible for mounting vertically or horizontally on the plane

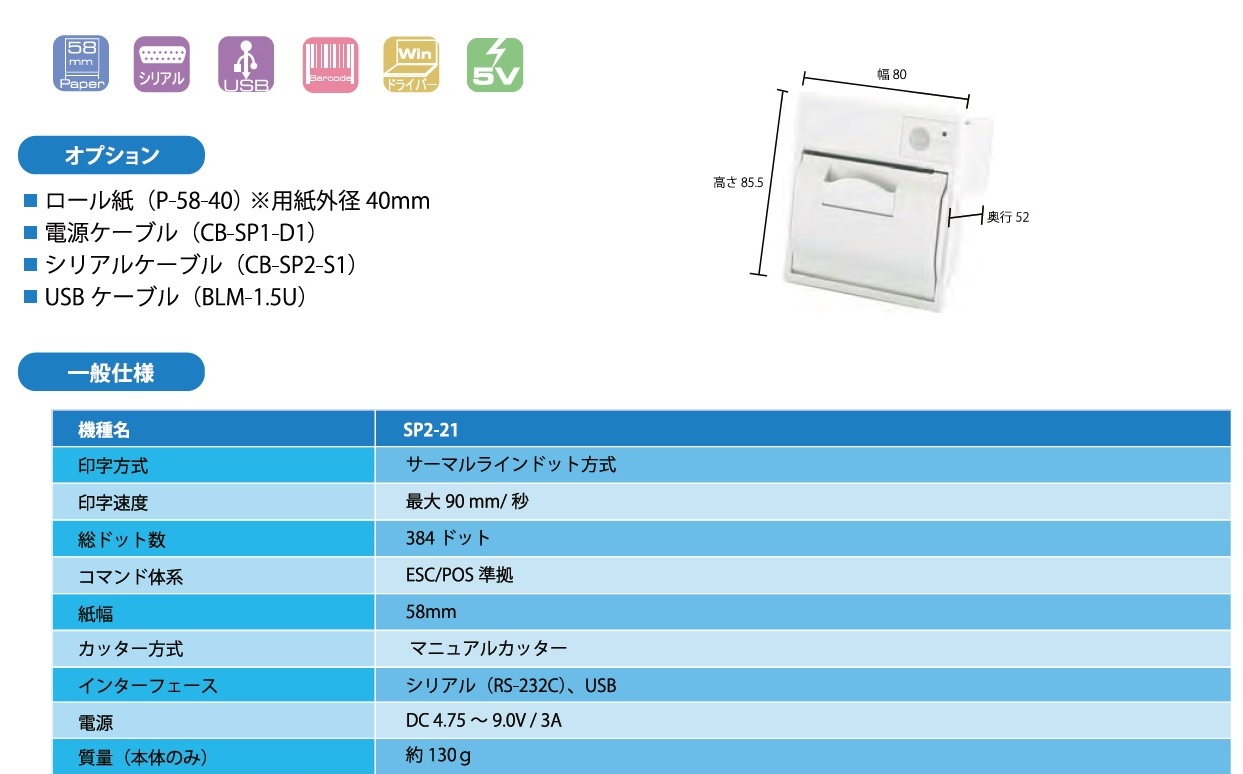

Specifications



Printing method Direct line thermal
Number of dots 384dots
Resolution 8dots/mm
Printing/ Paper width 48mm/58mm
Printing speed 90mm/sec?MAX
Characters/line 48characters/line
Service life Pulse activation 100 million pulse or more. (Dot's ratio=12.5%)
Abrasion resistance 50Km or more
Interface Serial (RS-232C) + USB
Character PC-437/850/852/857/858/860/863/865/866 , WPC1252
Barcode JAN (EAN)13/8 , CODE39 , ITF , CODABAR , CODE128 , UPC-A/E
Power supply Outer power source ?DC4.75V - 9.0V?3A
Current consumption standing by 75mA printing in average 1.5A
Environmental condition Operating temperature : -10? - +50?
Operating humidity : 20?RH - 85?RH (Non condensation?
Storage temperature : -25? - +60?
Storage humidity : 10?RH - 90?RH (Non condensation?

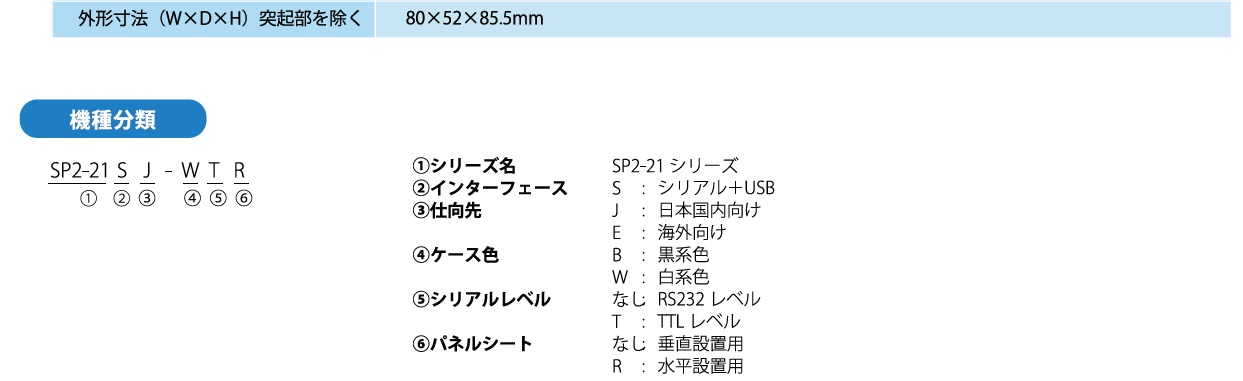

Dimensions 80(W)x52(H)x84.5(D)mm
Weight 130g



?Windows is the registered trade mark of Microsoft Corporation in the United States and other countries.
?Specifications is subject to be changed for improvement without notice.

Option

Thermal paper P-58-40
