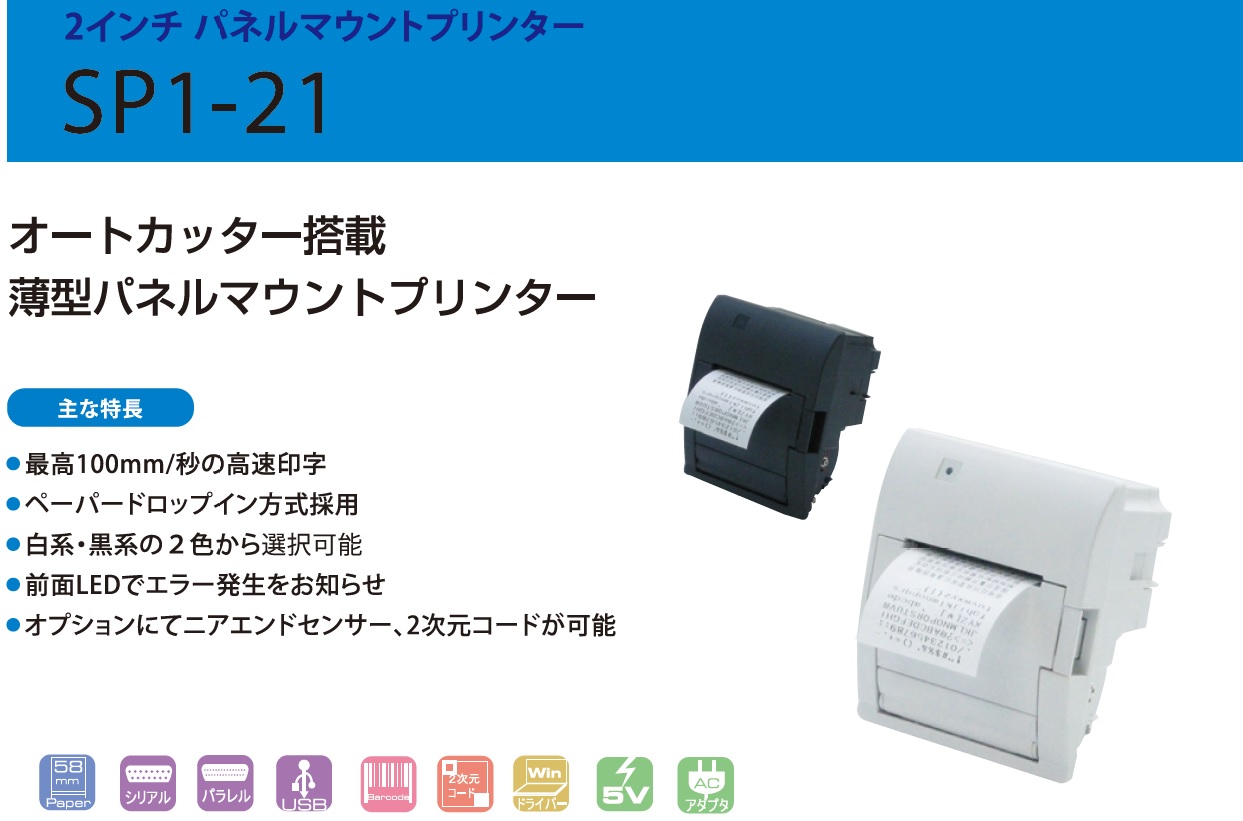

Sanei - Sanei Panel mount printer


Sanei Panel mount printer

Code : SP1-21
Brand : Sanei


Panel mount printer

SP1-21SP1-21

Features
  • Compact design.
  • 2 alternate power sources.
  • 100mm/sec.high speed printing.
  • Easy paper loading.
  • Available for White or Black case color.
  • Near end sensor, buzzer and 2D barcode are options.
  • RoHS conformity

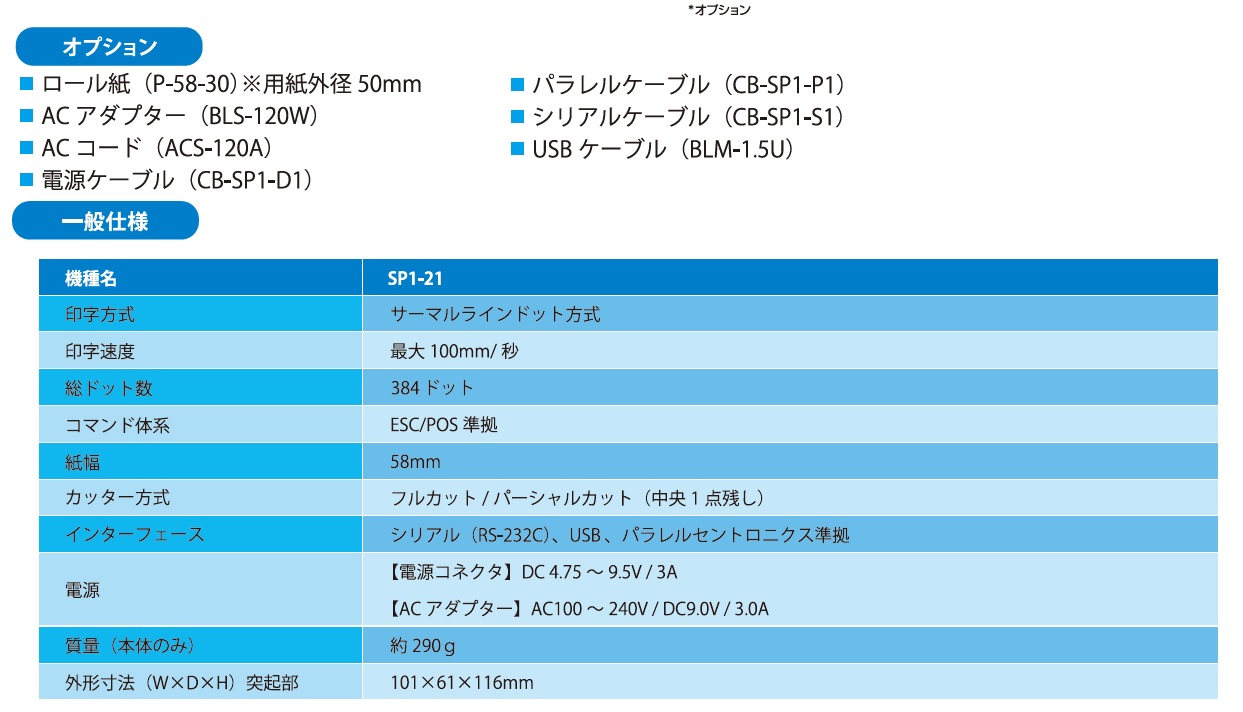

Specifications



ModelSP1-21SSP1-21P
Printing method Direct line thermal
Number of dots 384dots
Resolution 8dots/mm
Printing/ Paper width 48mm/58mm
Printing speed 100mm/sec?MAX
Characters/line 32characters/line
Service life Pulse activation 100 million pulse or more. (Dot's ratio=12.5%)
Abrasion resistance 50Km or more
Interface Serial (RS-232C) + USB Parallel (Centronics)
Character Katakana , PC-437/850/852/857/858/860/863/865/866 , WPC1252
Barcode JAN (EAN)13/8 , CODE39 , ITF , CODABAR , CODE128 , UPC-A/E
Power supply Outer power source ?DC5V - 8.7V?3A
DC socket?DC8.7V?3.3A?(AC adapter BLS-120W )
Current consumption standing by 100mA printing in average 1.7A?Max.3A?
Environmental condition Operating temperature : 0? - +50?
Operating humidity : 30?RH - 80?RH (Non condensation?
Storage temperature : -20? - +60?
Storage humidity : 20?RH - 85?RH (Non condensation?
Dimensions 101(W)x116(H)x61(D)mm 95(W)x110(H)x61(D)mm
Weight 230g



?Windows is the registered trade mark of Microsoft Corporation in the United States and other countries.
?Specifications is subject to be changed for improvement without notice.



Option



Thermal paper
(width?Length)
P-58-30?58mm?30m?
AC adapter BLS-120W?AC power cord, selling separately
