Sanei - Sanei Panel mount printer

Sanei Panel mount printer

Code : µTP-58E
Brand : Sanei


Panel mount printer

µTP-58EµTP-58EµTP-58E/EBµTP-58E/EBµTP-58E/EB

Features
  • Compact design (61mm depth, 230g weight)
  • 2 alternate power sources
  • Printer driver(Windows 2000, XP, Vista, 7)
  • Easy paper loading
  • Barcode printing
  • RoHS conformity

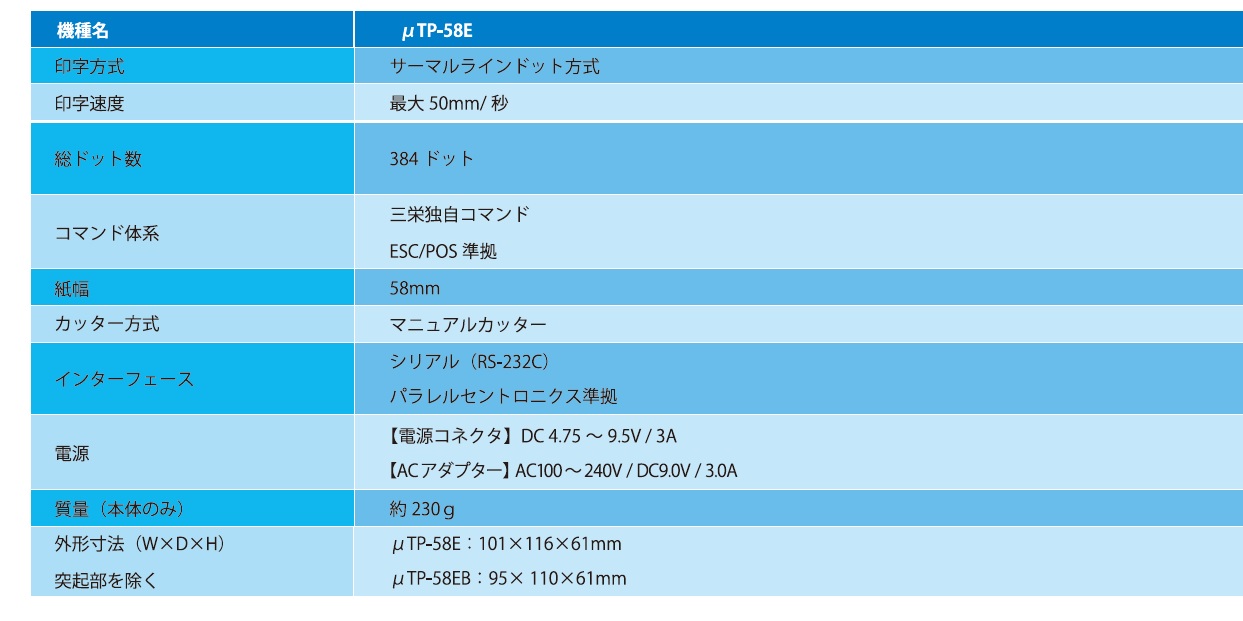

Specifications

ModelμTP-58E (with front panel type)μTP-58EB (w/o front panel type)
Printing method Direct line thermal
Number of dots Mode 1 : 278dots????Mode2 : 334dots ????Mode3 : 384dots
Resolution 8dots/mm
Printing/ Paper width Mode 1 : 34.75mm/58mm????Mode2 : 41.75mm/58mm
Mode3 : 48mm/58mm
Printing speed 50mm/sec?MAX??at 8.7 Volt
Characters/line Mode 1?20characters/line????Mode2?24characters/line
Mode3?32characters/line??
Service life Pulse activation 100 million pulse or more. (Dot's ratio=12.5%)
Abrasion resistance 50Km or more
Interface Parallel (Centronics) , Serial (RS-232C)
Input buffer 4096 byte
Character Mode 1?Katakana , international , special characters
Mode 2?Katakana , international , special characters
Mode 3?Katakana , international , PC437 ,
?????Kanji(JIS-1?2) , downloaded font , external character
Barcode JAN (EAN)13/8 , CODE39 , ITF , CODABAR , CODE128 , UPC-E
Power supply Outer power source ?DC5V - 9V?3A
DC socket?DC9V?3A?(AC adapter BLS-120W)
Current consumption standing by 100mA printing in average 1.7A?Max.3A?
Environmental condition Operating temperature : 0? - +50?
Operating humidity : 30?RH - 80?RH (Non condensation?
Storage temperature : -20? - +60?
Storage humidity : 20?RH - 85?RH (Non condensation?
Dimensions 101(W)x116(H)x61(D)mm 95(W)x110(H)x61(D)mm
Weight 230g

?Windows is the registered trade mark of Microsoft Corporation in the United States and other countries.
?Specifications is subject to be changed for improvement without notice.

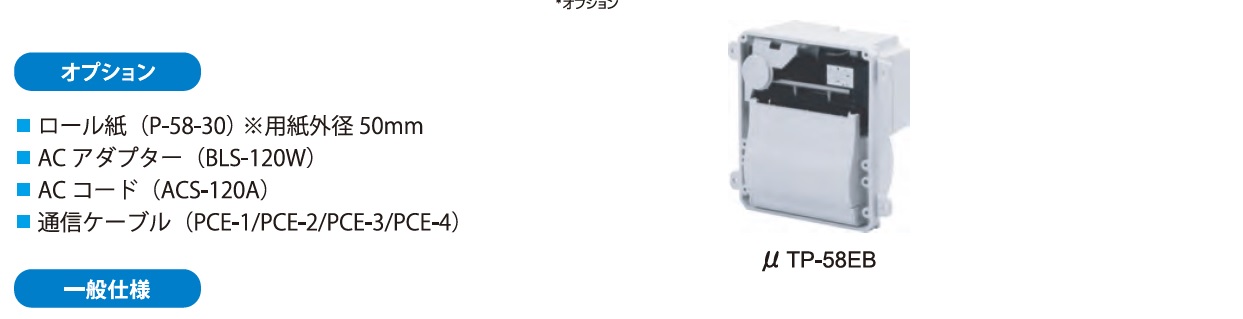

Option

Thermal paper
(width?Length)		 P-58-30?58mm?30m?
AC adapter BLS-120W?AC power cord, selling separately
Interface cable PCE-1, PCE-2, PCE-3, PCE-4
