Sanei Mobile printer

Code : BLM-80BT
Brand : Sanei


Mobile printer

BLM-80BT
BLM-80BTBLM-80BT BLM-80BT BLM-80BT BLM-80BT
Features



  • Super compact?light weight (370g)
  • Paper width 80mm or 58mm (option)
  • Large capacity Li-ion battery mounted
  • Label printing (Confirm the condition of use)
  • Varied selection of interface
    ? ?RS-232C/USB/Bluetooth model ?
  • The environmental rigidity you can use in severe environment
    ?High impact resistance ??Wide-ranging temperature operation
  • Windows driver (2000/XP/VISTA)
  • RoHS conformity

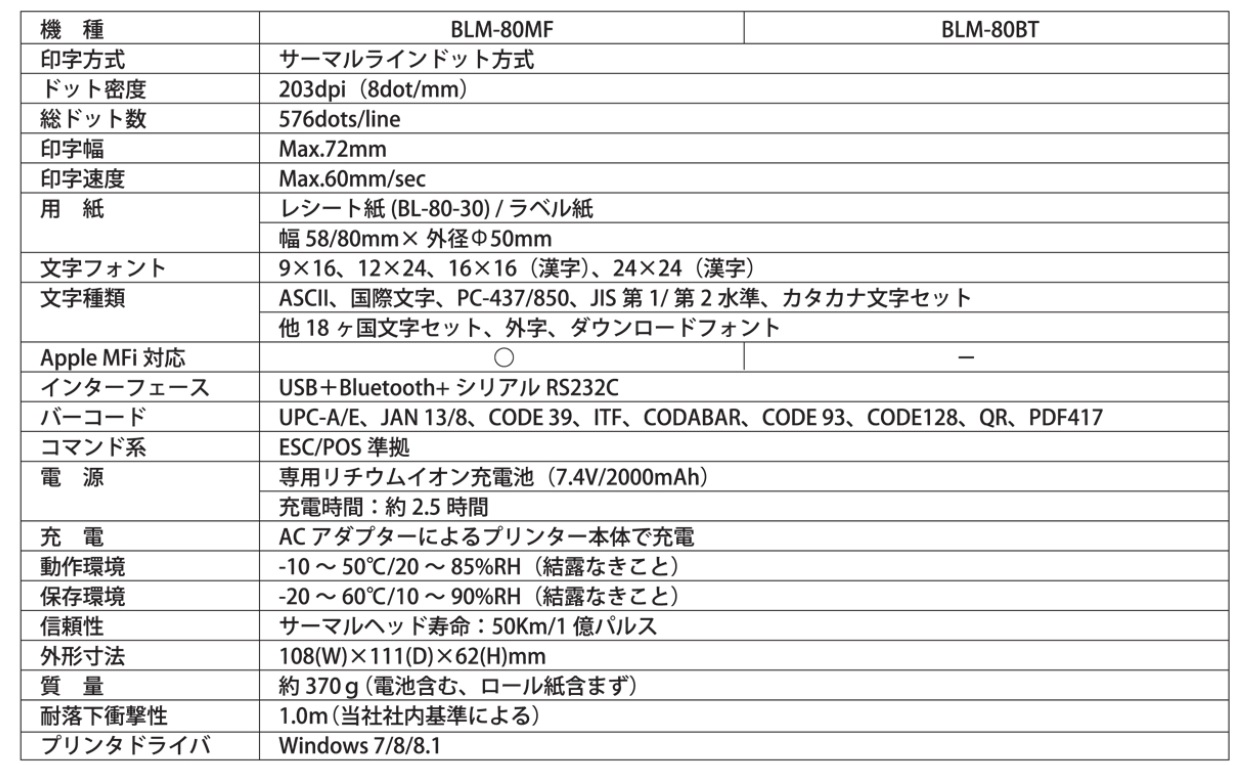

Specifications



ModelBLM-80BT
Printing method Direct line thermal
Number of dots 576dots
Resolution 8dots/mm
Printing/ Paper width 72mm/80mm , 51mm/58mm (option)
Printing speed 60mm/sec max
Character size FontA : ???24x12dots (3.0x1.5mm)
FontB : ???16x9dots (2.0x1.12mm)
Kanji font : ?24x24dots (3.0x3.0mm)
???????? 16x16dots (2.0x2.0mm)
Characters/line
(paper width 80mm)		 FontA : 48 characters/line
FontB : 64 characters/line
Kanji font : (24x24dots) 24 characters/line
???????(16x16dots) 36 characters/line
Interface RS-232C/USB/Bluetooth
Logo registration Down loaded bit image
Barcode UPC-A/E , JAN13/8 , CODE39 , ITF , CODABAR , CODE128 , CODE93
2-dimensional barcode QRcode , PDF417
Emulation ESC/POS conformity
Operating condition -10? - +50?/20?RH - 85?RH (no condensation)
Storage condition -20? - +60?/10?RH - 90?RH (no condensation)
Power supply Li-ion battery?7.4V, 2000?Ah?
Fall down shocking resistance 1.0m?by our standard?
Dimensions 108×111×62mm (W×D×H)
Weight 370g (Thermal paper ? belt hook parts not included)
Bundled items Li-ion battery , AC adapter , Belt hook , Paper roll (smaller type)



?Windows is the registered trade mark of Microsoft Corporation in the United States and other countries.
?ESC/POS is the registered trade mark of Seiko Epson Corporation.
?Specifications is subject to be changed for improvement without notice.

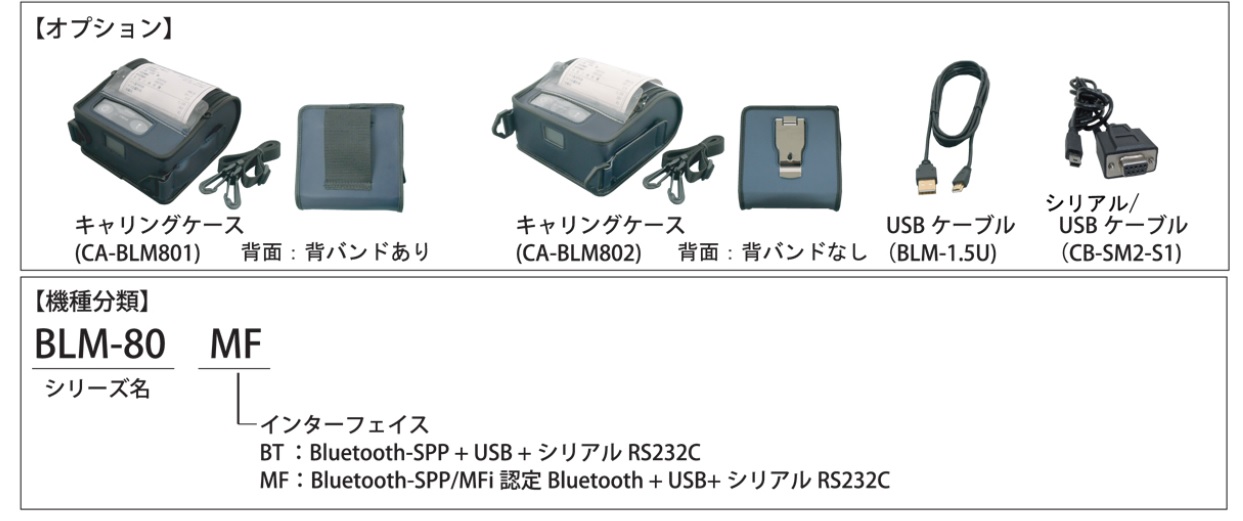

Option



Thermal paper BL-80-30 (Paper width 80mm?length 30m)
P-58-30 (Paper width 58mm?length 30m)
Carrying case CA-BLM801?back belt attached?
CA-BLM802?back belt not attached?
Interface cable  BLM-1.6S?RS-232C?
BLM-1.5M?USB?
Paper guide BLM-80 paper guide?left?right 1 set?
