Sanei KIOSK printer "Bucket type"

Code : SK1-32
Brand : Sanei

KIOSK printer "Bucket type"


  • Low profile and small foot print
  • 3-inch Paper width (58/60/80/83mm)
  • Fully opening paper cover provides easy paper insert
  • Drop-in paper bucket operation for easy paper handling
  • 200mm/sec. (max.) high speed printing
  • 150µm thick paper available (thickness from 59µm to 150µm)
  • Interface: RS-232C,USB



Printing method Direct line thermal
Paper width 58mm / 60mm / 80mm / 83mm
Print width 54mm / 56mm / 72mm / 80mm
Number of dots 432 dots / 448 dots / 576 dots / 640 dots
Resolution 8 dots/mm (203dpi)
Printing speed 200mm/sec. (max.) *1
Interface Serial(RS-232C/max. 115.2kbps), USB2.0
Character type ASC? PC437/850/852/857/858/863/865/866/860/862,
Download Available
Font / Dots / Lines Printing width 54mm / 56mm / 72mm / 80mm
ASC? 16 dots 8 x 16 dots (WxH), 54/56/72/80 lines
ASC? 24 dots 12 x 24 dots (WxH), 36/37/48/53 lines

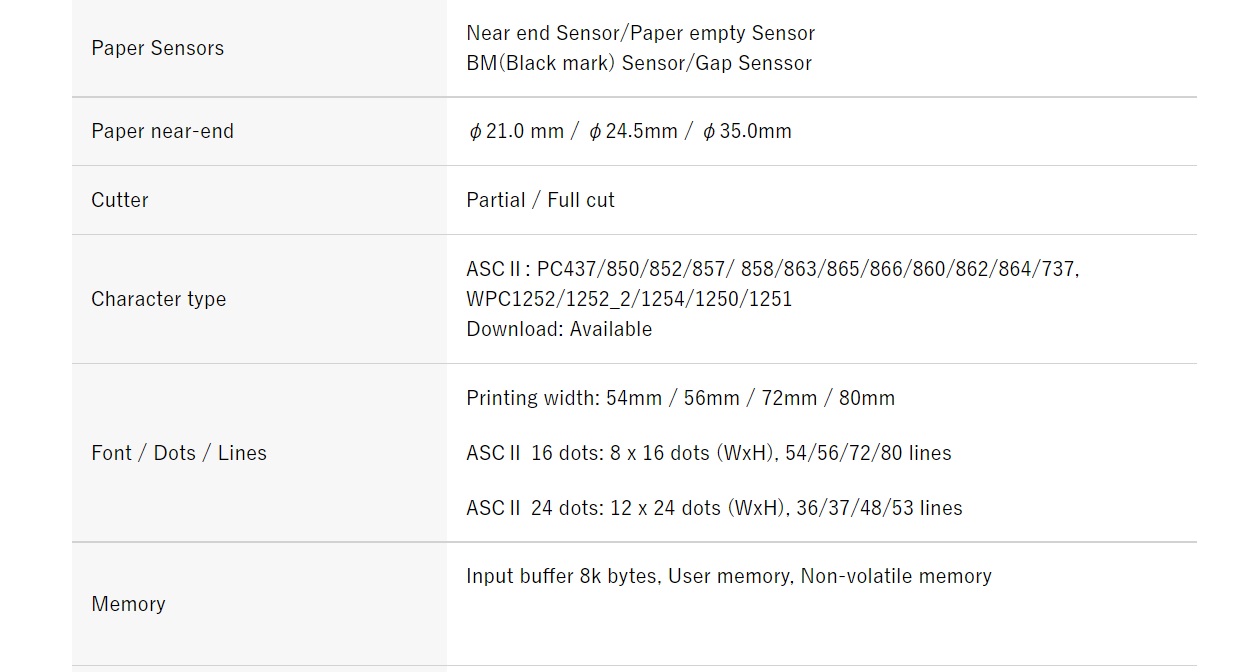

Paper sensor Near end sensor/ Reflection sensor / Gap sensor (option)
Memory Input buffer 8k bytes, User memory, Non-volatile memory

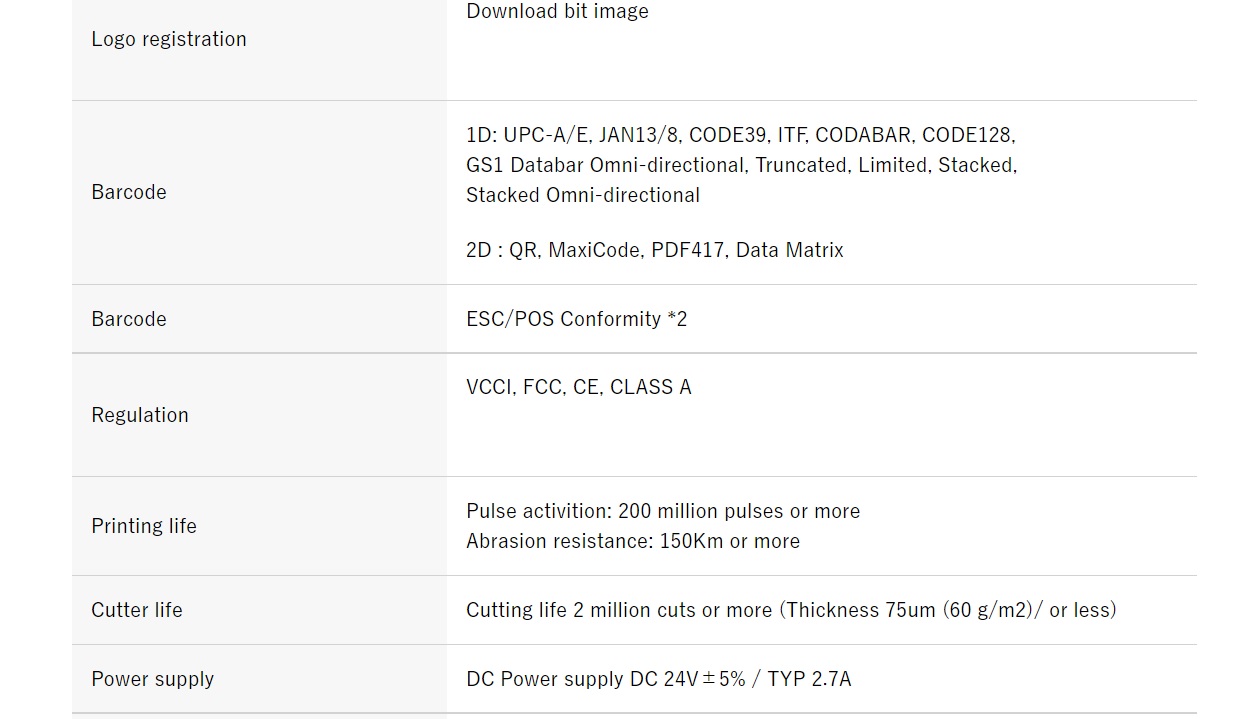

Logo registration Download bit image
Barcode 1D UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128
2D (option) QR, Maxicode, MicroPDF417, PDF417, DataMatrix
Command systems ESC/POS Conformity *2
Regulation VCCI, FCC, CE, CLASS A
Printing life Pulse activition: 200 million pulses or more
Abrasion resistance: 150Km or more
Cutter life Cutting life: 1.5 million cuts or more (Thickness: 75µm or less)
Power supply DC power supply: DC 24V±5% / TYP 3A (Peak 7.5A)

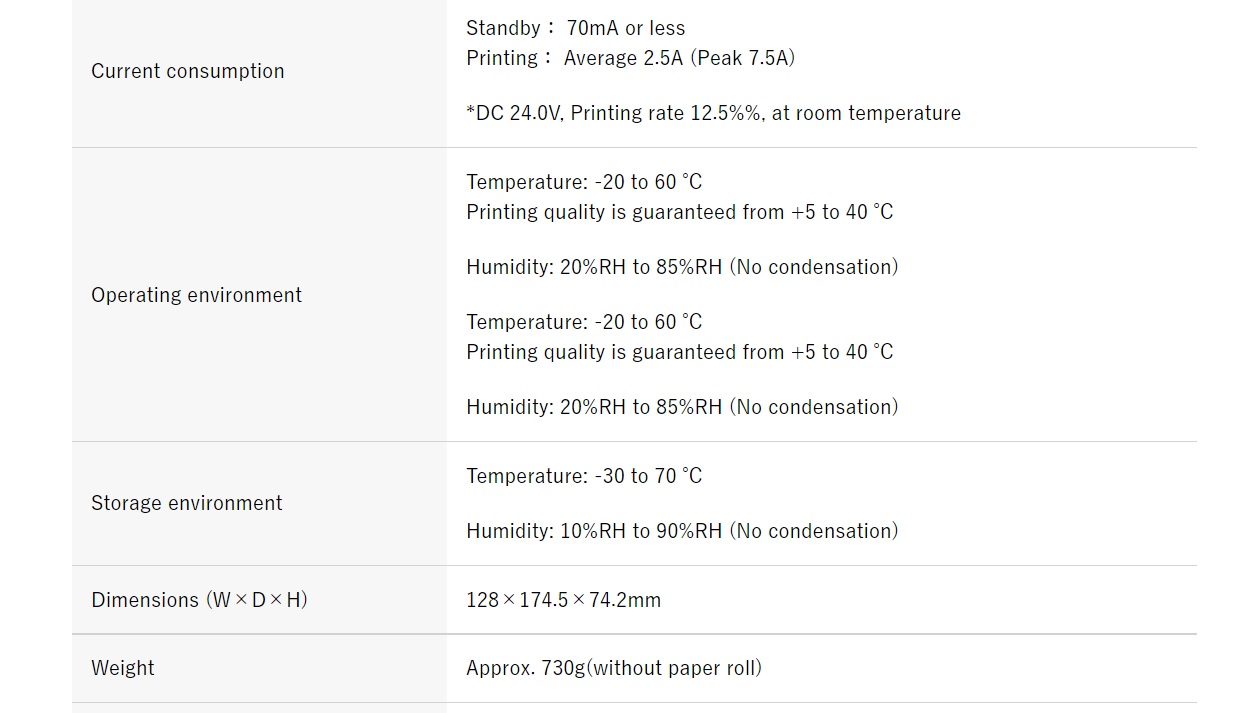

Current consumption Standby: 70mA or less
Printing: Ave. 2.5A *3
Operating environment Temperature -20 to 60 ?
Printing quality is guaranteed from +5 to 40 ?
Humidity 20%RH to 85%RH (No condensation)
Storage environment Temperature -30 to 70 ?
Humidity 10%RH to 90%RH (No condensation)
Dimensions 123(W) x 174.4(D) x 74.2(H) mm (without paper roll)
Weight 730g (without paper roll)
*1: Use AC adapter, printing rate less than 25%
*2: ESC/POS is a registered trade mark of Seiko Epson Coeporation.
*3: DC 24.0V, Printing rate 25%, at room temperature
* Specifications is subject to be changed for improvement without notice
Bezel BZ-SK1-1
Power supply SAS1-3A24O
Power supply
Power cable CB-SK1-D1
Power cable

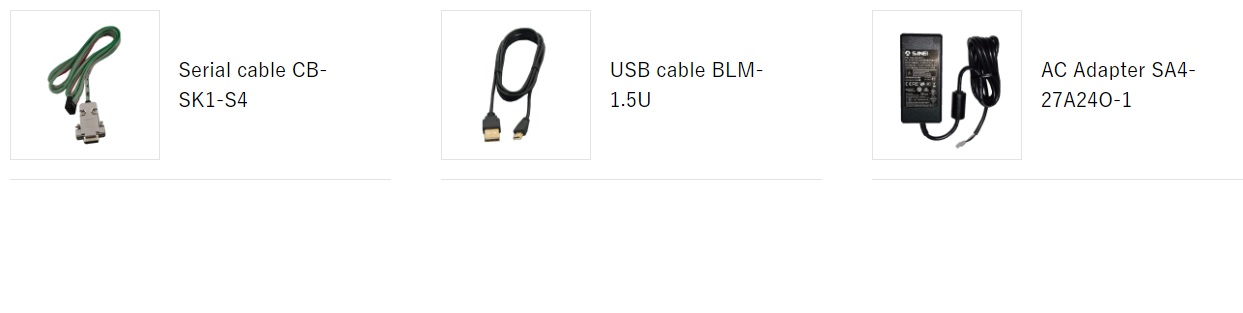

Serial cable CB-SK1-S2
Serial cable
