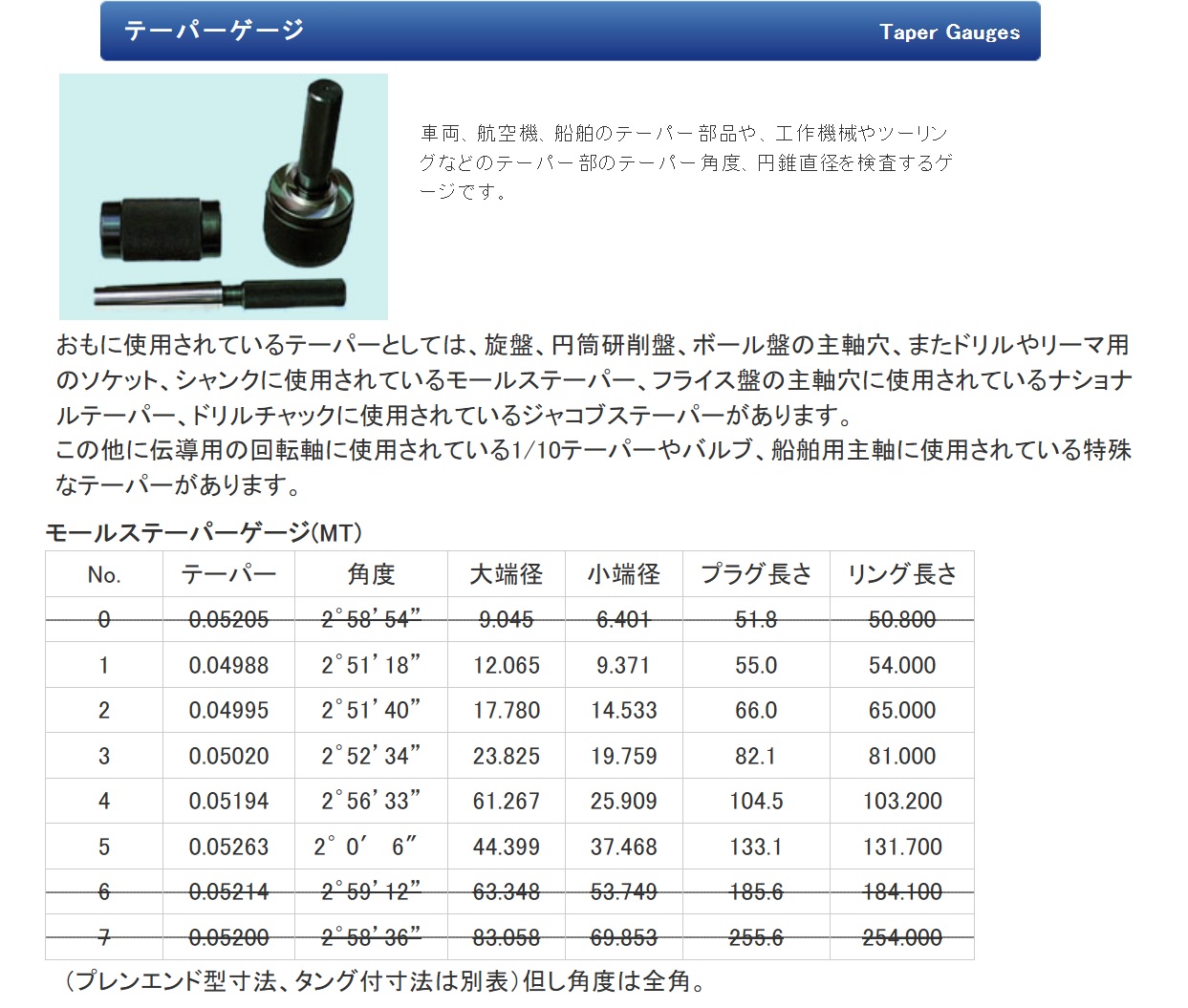

Code : Morse Taper Gauge (MT), Brown Sharp Taper Gauge (B & S)
Brand : Swan
It is a gauge to check tapered of vehicle parts, aircraft, ships, taper angle of the tapered portion, such as machine tools and tooling, the cone diameter.
As a taper that is used mainly, National taper that is used Morse taper that is used socket of the reamer for drill or the shank, the spindle hole of milling machine also spindle hole, lathe, cylindrical grinder, the drilling machine, drill There is Jacobs taper is used in the chuck.
There is a special taper that is used and valves 1/10 taper, which is used for rotating shaft of the conduction In addition, the marine spindle.
| No. | ???? | ?? | ??? | ??? | ????? | ????? |
|---|---|---|---|---|---|---|
| 0 | 0.05205 | 2?58’54″ | 9.045 | 6.401 | 51.8 | 50.800 |
| 1 | 0.04988 | 2?51’18″ | 12.065 | 9.371 | 55.0 | 54.000 |
| 2 | 0.04995 | 2?51’40″ | 17.780 | 14.533 | 66.0 | 65.000 |
| 3 | 0.05020 | 2?52’34″ | 23.825 | 19.759 | 82.1 | 81.000 |
| 4 | 0.05194 | 2?56’33″ | 61.267 | 25.909 | 104.5 | 103.200 |
| 5 | 0.05263 | 2? 0′ 6″ | 44.399 | 37.468 | 133.1 | 131.700 |
| 6 | 0.05214 | 2?59’12″ | 63.348 | 53.749 | 185.6 | 184.100 |
| 7 | 0.05200 | 2?58’36″ | 83.058 | 69.853 | 255.6 | 254.000 |
?????????????????????????????
| No. | ???? | ?? | ??? | ??? | ????? |
|---|---|---|---|---|---|
| 1 | 0.04183 | 2?23’48″ | 6.076 | 5.080 | 23.813 |
| 2 | 0.04183 | 2?23’48″ | 7.612 | 6.350 | 30.163 |
| 3 | 0.04183 | 2?23’48″ | 9.531 | 7.938 | 38.100 |
| 4 | 0.04187 | 2?23’54″ | 10.685 | 8.390 | 42.862 |
| 5 | 0.04180 | 2?23’40″ | 13.686 | 11.430 | 53.975 |
| 6 | 0.04194 | 2?24’10″ | 15.230 | 12.700 | 60.325 |
| 7 | 0.04179 | 2?23’38″ | 18.292 | 15.240 | 73.025 |
| 8 | 0.04175 | 2?23’30″ | 22.828 | 19.050 | 90.488 |
| 9 | 0.04174 | 2?23’28″ | 27.368 | 22.863 | 107.950 |
| 10 | 0.04301 | 2?23’50″ | 31.996 | 26.534 | 127.000 |
| 11 | 0.04175 | 2?23’30″ | 38.045 | 31.749 | 150.813 |
| 12 | 0.04164 | 2?23′ 8″ | 45.639 | 38.103 | 180.975 |
| 13 | 0.04168 | 2?23’16″ | 52.657 | 44.451 | 196.850 |
| 14 | 0.04167 | 2?23’14″ | 59.531 | 50.800 | 209.550 |
| 15 | 0.04167 | 2?23’14″ | 66.410 | 57.150 | 225.250 |
| 16 | 0.04167 | 2?23’14″ | 73.290 | 63.500 | 234.950 |
| 17 | 0.04167 | 2?23’14″ | 80.169 | 69.850 | 247.650 |
| 18 | 0.04167 | 2?23’14″ | 87.048 | 76.200 | 260.350 |

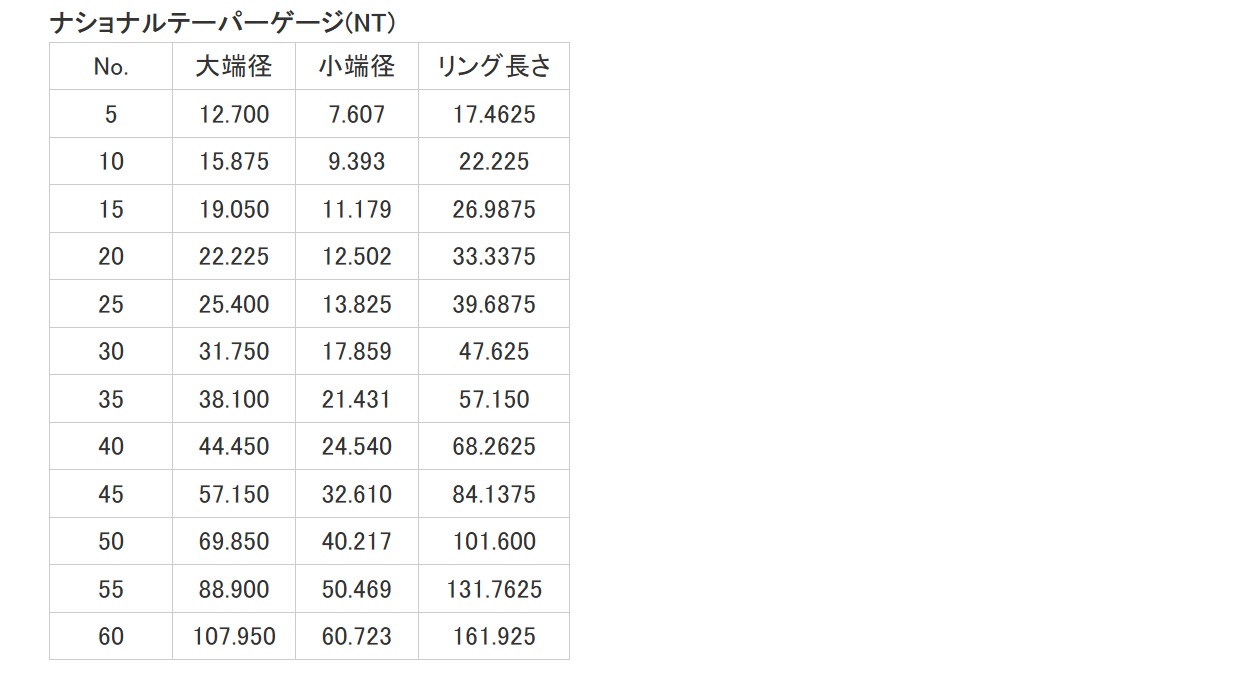

| No. | ??? | ??? | ????? |
|---|---|---|---|
| 5 | 12.700 | 7.607 | 17.4625 |
| 10 | 15.875 | 9.393 | 22.225 |
| 15 | 19.050 | 11.179 | 26.9875 |
| 20 | 22.225 | 12.502 | 33.3375 |
| 25 | 25.400 | 13.825 | 39.6875 |
| 30 | 31.750 | 17.859 | 47.625 |
| 35 | 38.100 | 21.431 | 57.150 |
| 40 | 44.450 | 24.540 | 68.2625 |
| 45 | 57.150 | 32.610 | 84.1375 |
| 50 | 69.850 | 40.217 | 101.600 |
| 55 | 88.900 | 50.469 | 131.7625 |
| 60 | 107.950 | 60.723 | 161.925 |

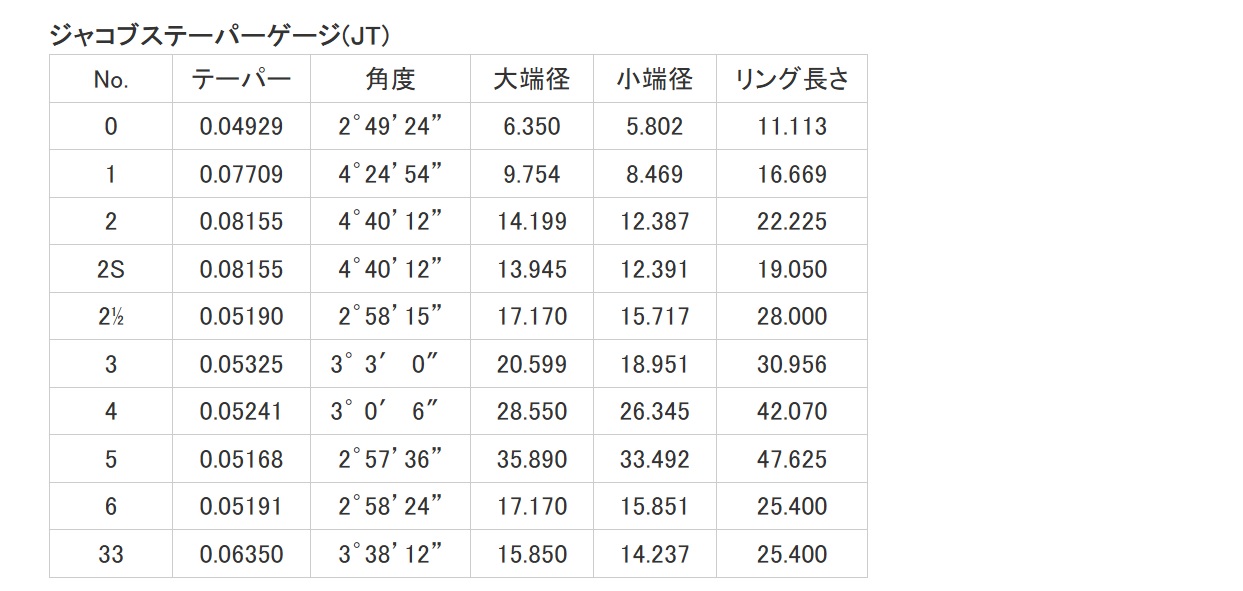

| No. | ???? | ?? | ??? | ??? | ????? |
|---|---|---|---|---|---|
| 0 | 0.04929 | 2?49’24″ | 6.350 | 5.802 | 11.113 |
| 1 | 0.07709 | 4?24’54″ | 9.754 | 8.469 | 16.669 |
| 2 | 0.08155 | 4?40’12″ | 14.199 | 12.387 | 22.225 |
| 2S | 0.08155 | 4?40’12″ | 13.945 | 12.391 | 19.050 |
| 2? | 0.05190 | 2?58’15″ | 17.170 | 15.717 | 28.000 |
| 3 | 0.05325 | 3? 3′ 0″ | 20.599 | 18.951 | 30.956 |
| 4 | 0.05241 | 3? 0′ 6″ | 28.550 | 26.345 | 42.070 |
| 5 | 0.05168 | 2?57’36″ | 35.890 | 33.492 | 47.625 |
| 6 | 0.05191 | 2?58’24″ | 17.170 | 15.851 | 25.400 |
| 33 | 0.06350 | 3?38’12″ | 15.850 | 14.237 | 25.400 |
