Sanei - Sanei SK1-22 "Bucket type"


Sanei SK1-22 "Bucket type"

Code : SK1-22
Brand : Sanei


Sanei SK1-22 "Bucket type"

SK1-22

KIOSK  SK1-22 KIOSK PRINTER SK1-22 KIOSK PRINTER SK1-22 KIOSK PRINTER SK1-22



Features



  • Low profile and small foot print
  • 2-inch Paper width (58/60mm)
  • Fully opening paper cover provides easy paper insert
  • Drop-in paper bucket operation for easy paper handling
  • 200mm/sec. (max.) high speed printing
  • 150µm thick paper available (thickness from 59µm to 150µm)

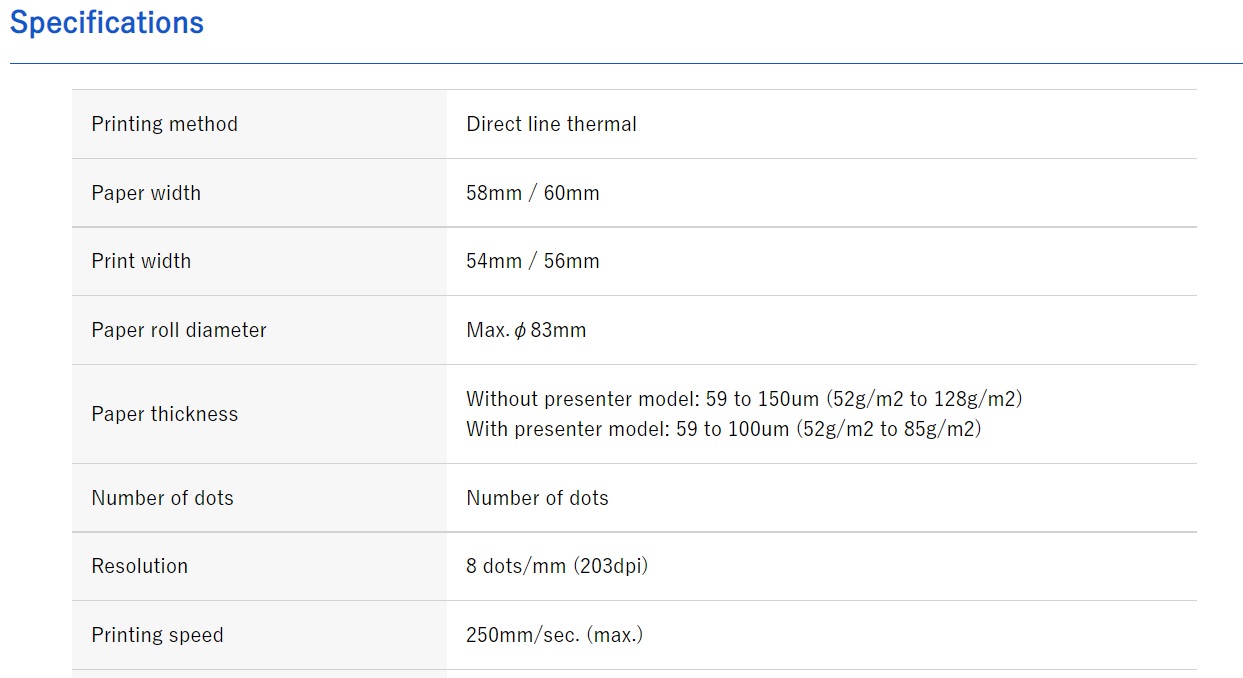

  • Specifications
    Printing method Direct line thermal
    Paper width 56mm / 58mm
    Print width 54mm / 56mm
    Number of dots 432 dots / 448 dots
    Resolution 8 dots/mm (203dpi)
    Printing speed 200mm/sec. (max.) *1
    Interface Serial(RS-232C/max. 115.2kbps), USB2.0
    Character type ASC? PC437/850/852/857/858/863/865/866/860/862,
    WPC1252/1252_2/1254/1250/1251
    Download Available
    Font / Dots / Lines Printing width 54mm / 56mm
    ASC? 16 dots 8 x 16 dots (WxH), 54/56 lines
    ASC? 24 dots 12 x 24 dots (WxH), 36/37 lines

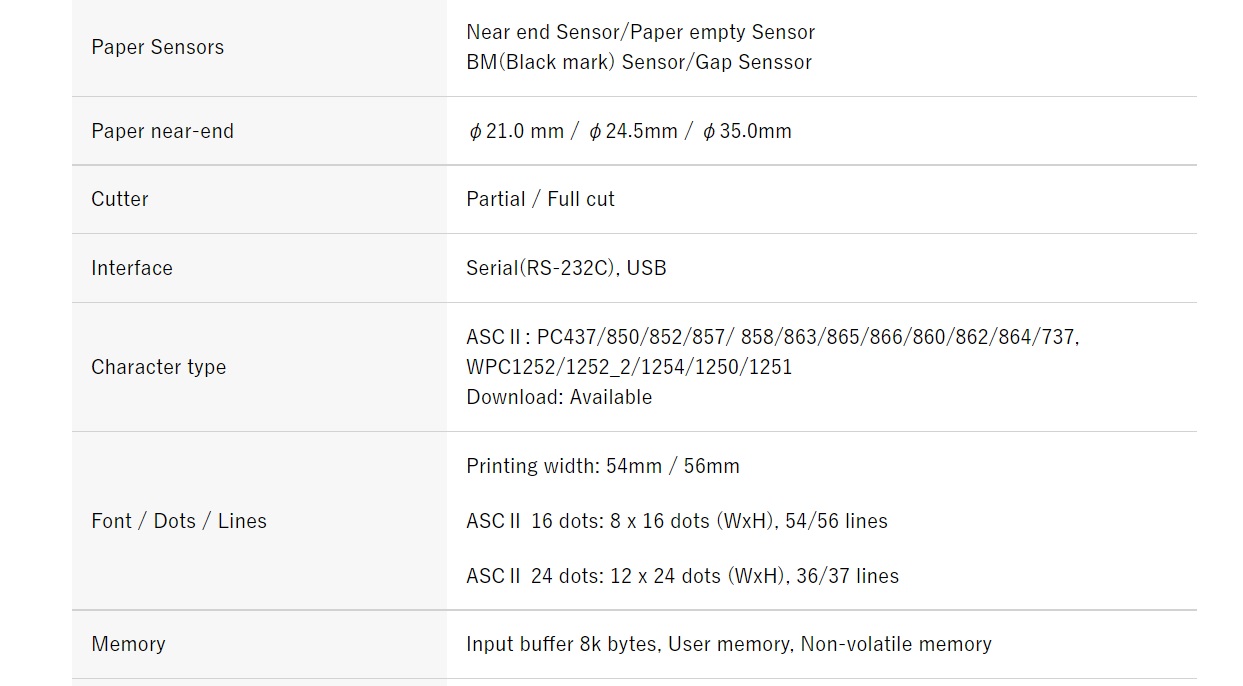

    Paper sensor Near end sensor/ Reflection sensor / Gap sensor (option)
    Memory Input buffer 8k bytes, User memory, Non-volatile memory

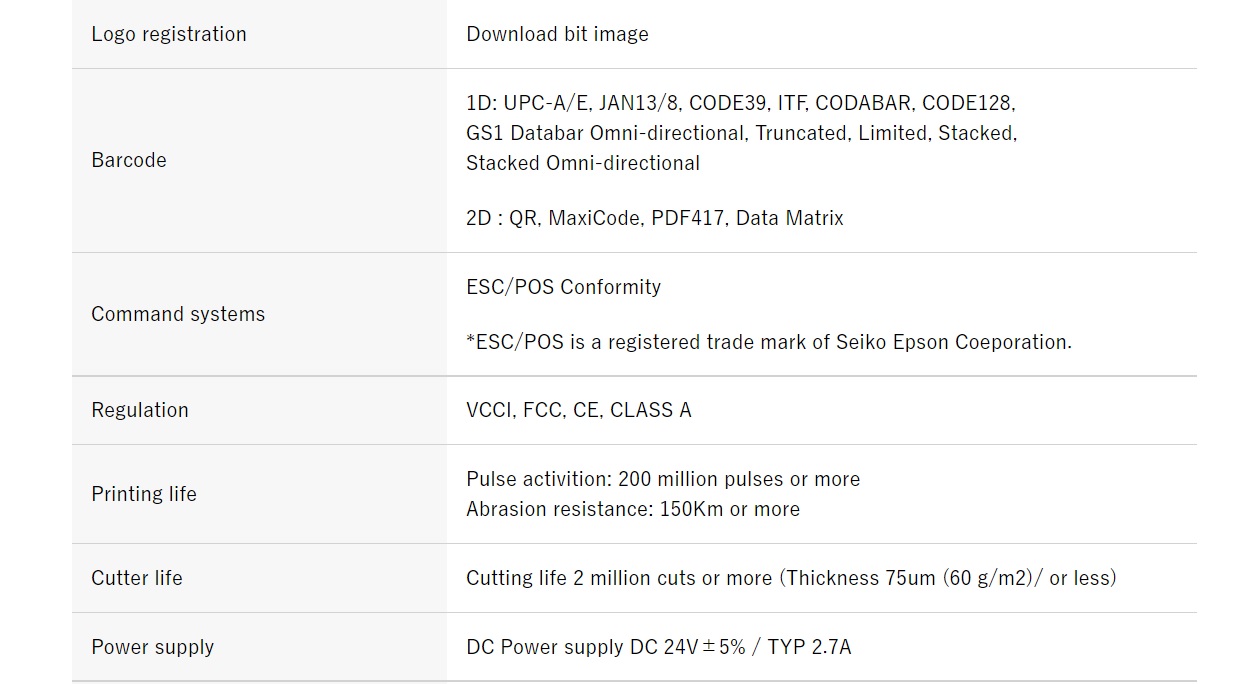

    Logo registration Download bit image
    Barcode 1D UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128
    2D (option) QR, Maxicode, MicroPDF417, PDF417, DataMatrix
    Command systems ESC/POS Conformity *2
    Regulation VCCI, FCC, CE, CLASS A
    Printing life Pulse activition: 200 million pulses or more
    Abrasion resistance: 150Km or more
    Cutter life Cutting life: 1.5 million cuts or more (Thickness: 75µm or less)
    Power supply DC power supply: DC 24V±5% / TYP 3A (Peak 7.5A)

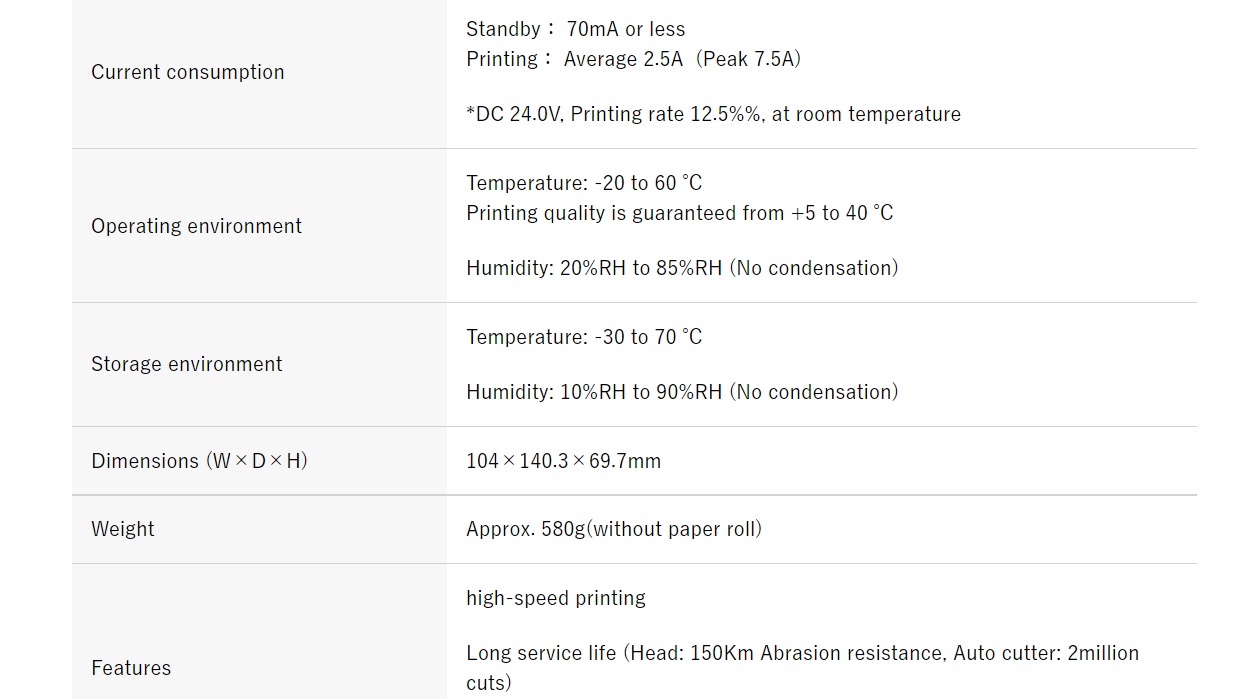

    Current consumption Standby: 70mA or less
    Printing: Ave. 2.5A *3
    Operating environment Temperature -20 to 60 ?
    Printing quality is guaranteed from +5 to 40 ?
    Humidity 20%RH to 85%RH (No condensation)
    Storage environment Temperature -30 to 70 ?
    Humidity 10%RH to 90%RH (No condensation)
    Dimensions 104(W) x 140.3(D) x 69.7(H) mm
    Weight Approx. 580g(without paper roll)
    *1: Use AC adapter, printing rate less than 25%
    *2: ESC/POS is a registered trade mark of Seiko Epson Coeporation.
    *3: DC 24.0V, Printing rate 25%, at room temperature
    * Specifications is subject to be changed for improvement without notice

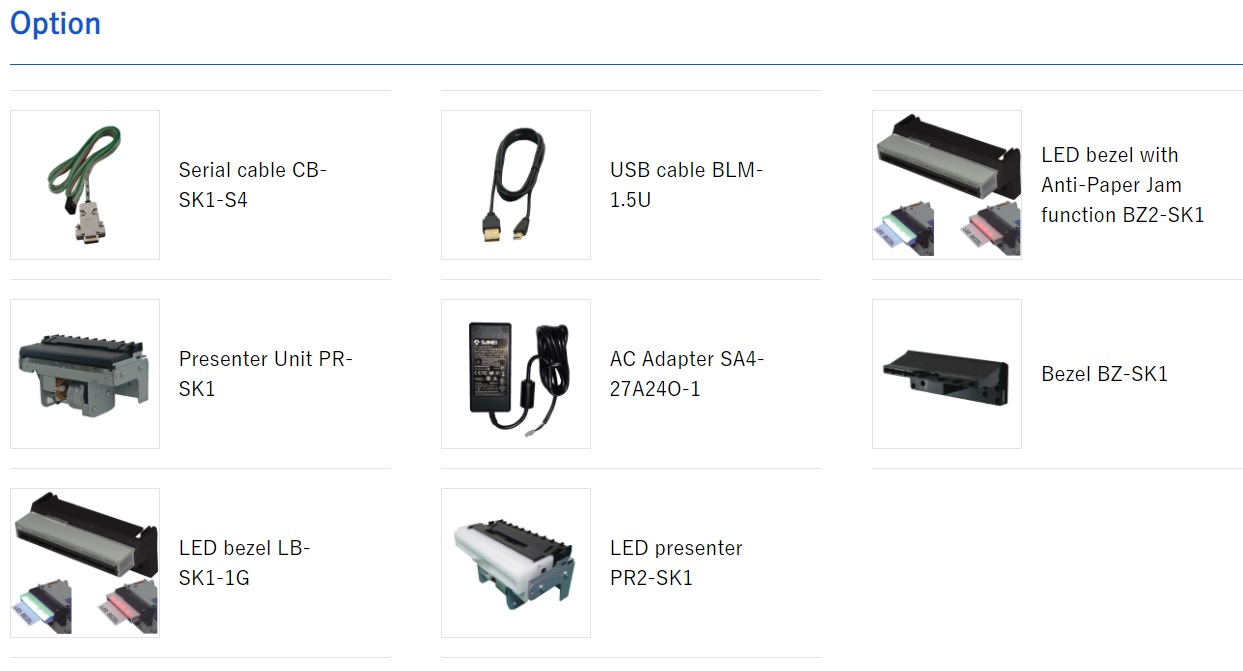

    Options
    Bezel BZ-SK1-1
    Bezel
    BZ-SK1-1
    LED Bezel LB-SK1
    LED Bezel
    LB-SK1
    Presenter PR-SK1
    Presenter
    PR-SK1
    Power supply SAS1-3A24O
    Power supply
    SA1-3A24O
    Power cable CB-SK1-D1
    Power cable
    CB-SK1-D1
    Serial cable CB-SK1-S2
    Serial cable
    CB-SK1-S2
    Interface: RS-232C,USB
