Lobster Air Riveter AR012

Code : AR012 , AR022M, ARV025M
Brand : Lobster

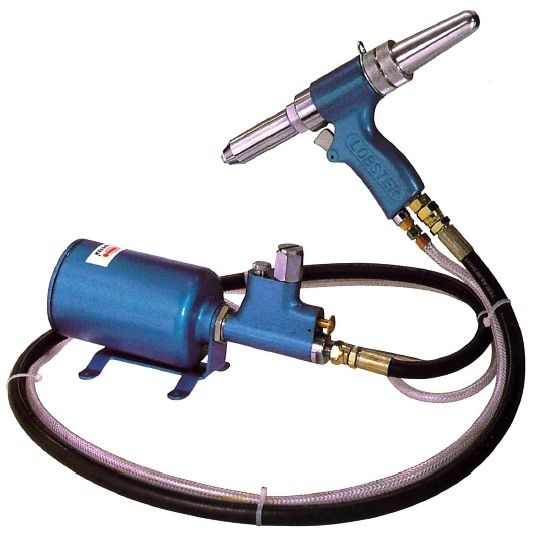

Air Riveter AR012

Air Riveter  AR012

Separate type

?Exclusive, innovative design reaches otherwise inaccessible points
?Lightweight hand-operated rivet pistol head
?Ergonomic benefits
?Remote pneumatic/hydraulic intensifier pump
?Over 2800 lbs. (1300kg) traction power
?Sets any standard rivet from 3/32" through 1/4" (6.4mm)
?Economical choice for enhanced tool value ?This product is not sold in Japan.

Use/Application





Specifications

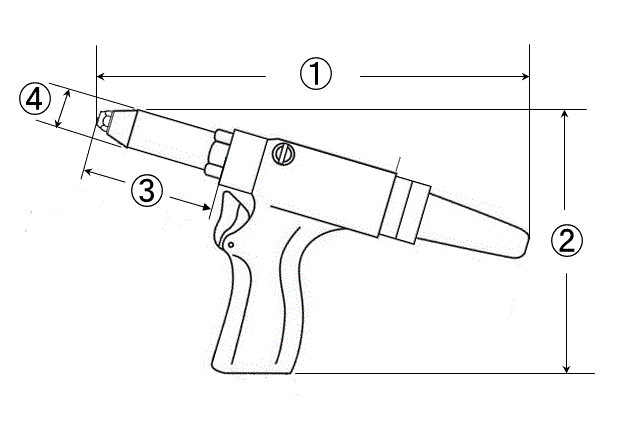

Air Riveter  AR012



Model No.     (Product) weight        size1      size2       size3           size4      Usage jaws       Remark
AR012   0.9kg(head only)   257mm   136mm   72.5mm   25φmm   'M' 'H'for 6.4mm   For setting blind rivets up to
6.4mm(1/4")in all materials

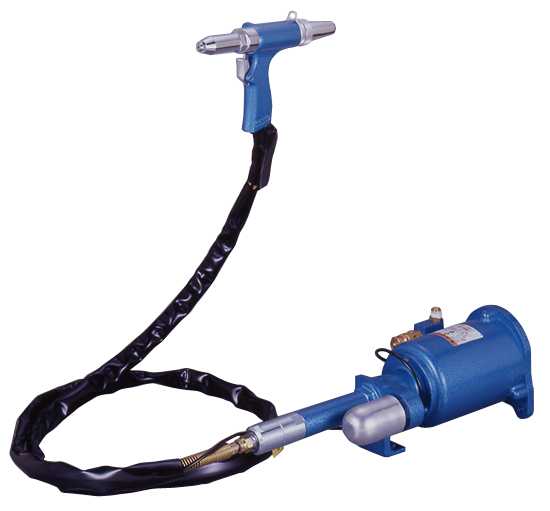

Air Riveter AR022M

Air Riveter  AR022M

Separate type

? The length of the hydraulic hose is 2m.

Use/Application





Specifications

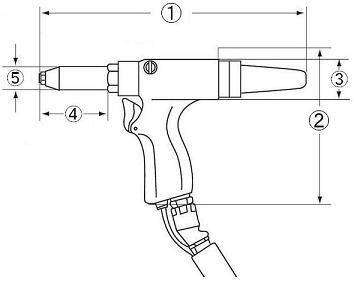

Air Riveter  AR022M



Model No.     (Product) weight      size1    size2    size3      size4    size5     Use range      Operating air pressure      Usage jaws
AR022M   900g (Only head part)   256mm   150mm   46mm   64.5mm   23mm   φ2.4?3.2?4.0?4.8mm   0.49?0.59   Ultra Jaws middle

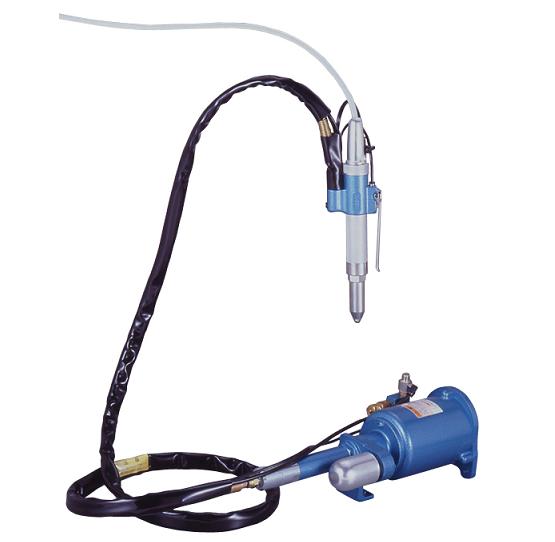

Air Riveter ARV025M

Air Riveter  ARV025M

Separate type & Vacuum system

?Soft-Set shockless technology offers ergonomically correct action to minimize CTDs
?Ultra Jaws for longer jaw life
?Lightweight, pistol grip riveting head weighs under two pounds and features remote intensifier
?In-line vertical design for ergonomic benefits in a workstation environment
?New design features unique ergonomic trigger placement in the natural operator gripping area for improved tool control
?Exclusive hydraulic swivel fittings for ease of hydraulic swivel fittings for ease of operator flexibility
?Built-in on-demand mandrel vacuum system for mandrel retention and evacuation to an off-line receptacle
?Long stroke
?Able to operate in conjunction with our exclusive ARF-700M autofeeding rivet presenter system
?Set up to 3/16" (4.8mm) rivets in all materials

Use/Application





Specifications

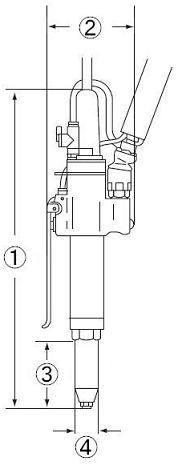

Air Riveter  ARV025M



Model No.   (Product) weight      size1    size2      size3        size4      Use range           Operating air pressure       Usage jaws     Traction power
ARV025M   900g (Only head part)   330mm   88mm   64.5mm   23.0mm   φ2.4?3.2?4.0?4.8mm   0.49?0.59   Ultra Jaws middle   8.8
