Code : R1B1
Brand : Lobster
Advanced Cordless Riveter
A high-performance yet compact cordless riveter has made its debut,going beyond the conventional norm.
This tool substantially improves work efficiency and precisely meets your needs when long hours of work are required. It is a Lobtex masterpiece,with energy-saving and foolproof features,and it helps fulfill
your desire to make your factory "cordless".
?The counter that counts the number of riveting operations is build-to-order.
R1B1 Product Identity
Energy-saving environmental friendliness

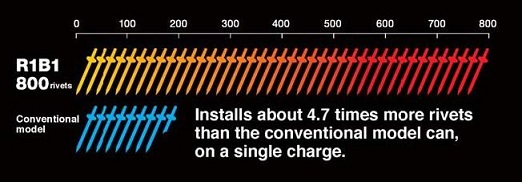

Installs four times more rivets than possible with conventional model on a single charge.
The R1B1 riveter consumes only one forty-fifth of the power consumed by an air riveter
thanks to a lithium-ion battery and energy-efficient power transmission system.(?1)
This riveting tool installs 800 rivets on a single charge.(?2)
(?1) Comparison with the compressor power consumption at the time of air riveter is used.
(?2) Measurement using 3.2mm stainless steel rivet (NST4-2)
Functionality and aesthetic design
Easy-to-grip,well-balanced design in a fine innovative form The R1B1 riveter, the work of
product designer Toshiyuki Kita, is implemented in an aesthetically pleasing form with
functionally kept strongly in mind. The handle offers a user-friendly grip and is shaped to
provide a well arranged weight balance for reduced user fatigue.
Energy-efficient power transmission system
A ball screw that converts rotations effciently to linear motions and planetary gear that
transmits large torques are incorporated to ensure efficient energy transmission and
smooth riveting.
High Speed Riveting
Achieves1.1-second cycle time, placing it in the industry's fastest class of cordless riveters.
Being substantially faster than previous models, the R1B1 helps make your factory cordless."

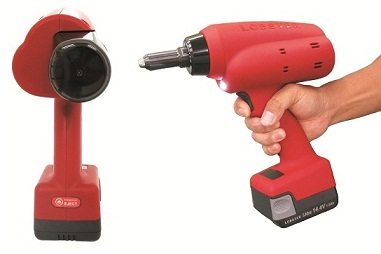

Handling - Ease of handling offers less user fatigue after long hours of work
The cordless design gives exceptional ease of operation. The handle is installed at an angle
for positioning the tool toward the riveting point with ease. In addition, the tool's excellent
weight balance causes less wrist fatigue after long hours of work. The grip-assist elastomer
ensures reliable non-slippery grip for use with gloves.

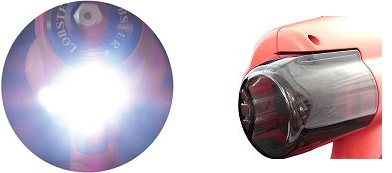

? LED Spotlight ? Mandrel Collector
? Safety Device
LED spotlight for preciensely Mandrel collector with increased mandrel
illuminating the object. holding capacity for improved work effciency.
Safety device to prevent mandrels from shooting out.?

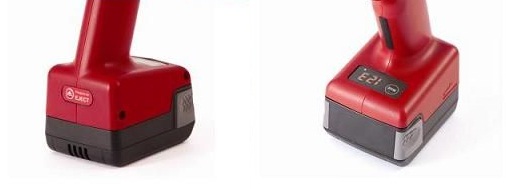

? Ejection Capability ??Counter
Ejection capability in the event of unexpected Foolproof system well suited for
operation stoppage. riveting management.
??Build to order?

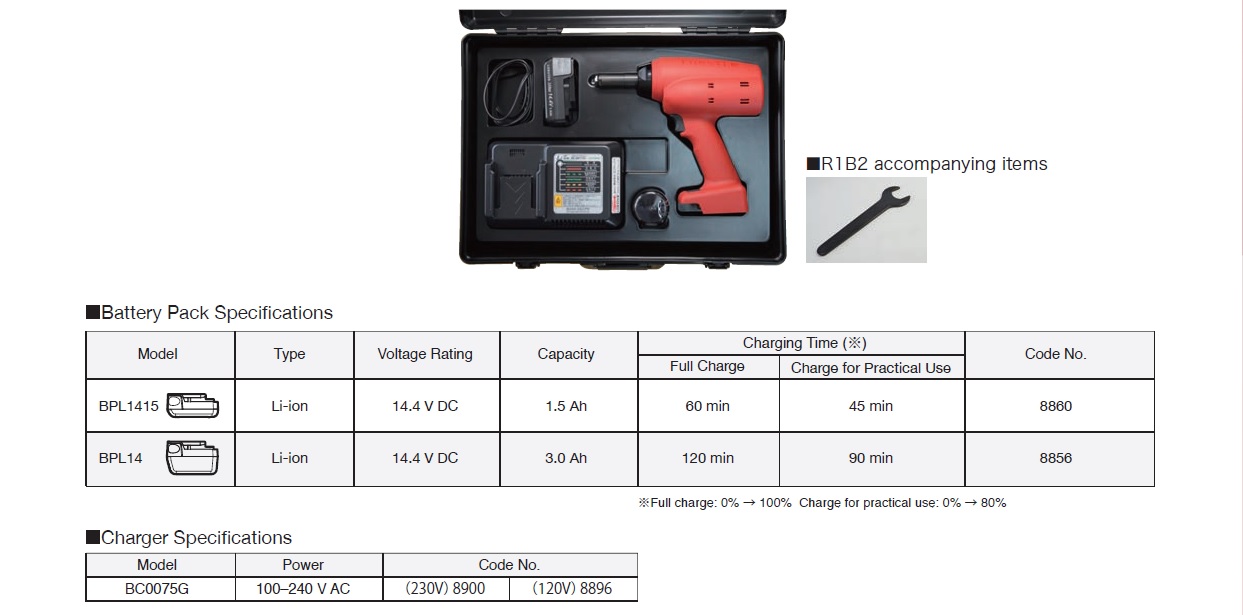

?Package Item
| Model | Package item | |||||||||
| R1B1 | Riveter,battery pack (BPL1415),charger (BC0075G),special case | |||||||||
| R1B1-C | ?Contact the place of purchase or your nearest?LOBSTER"dealer for the price of R1B1-C and detailed specifications. | |||||||||
| Model | Type | Voltage Rating | Capacity | Charging Time ??? | |||
| Full Charge | Charge for Practical Use | ||||||
| BPL1415 | Li-ion | 14.4 V DC | 1.5Ah | 60 min | 45 min | ||
| BPL14 | Li-ion | 14.4 V DC | 3.0Ah | 120 min | 90 min | ||
| Model | Power | ||||
| BC0075G | 100?240 V AC | ||||

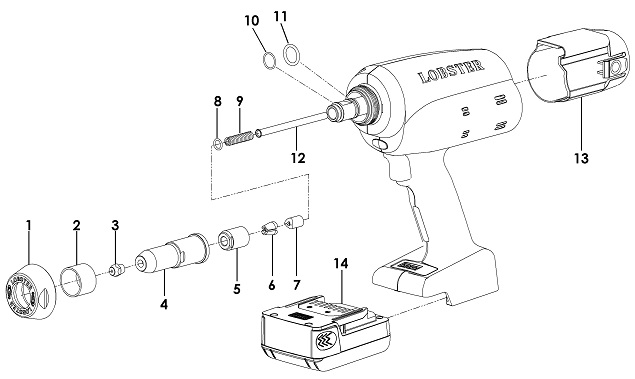

| No. | Parts Table | Code No. | No. | Parts Table | Code No. |
| 1 | Frame Head Nut H | 63917 | 8 | O-ring S-8 | 14475 |
| 2 | Frame Head Damper | 62835 | 9 | Jaw Pusher Spring JM | 63730 |
| 3-A | Nosepiece 2.4 | 10027 | 10 | O-ring S-10 | 10151 |
| 3-B | Nosepiece 3.2 | 10028 | 11 | O-ring P-15 | 10405 |
| 3-C | Nosepiece 4.0 | 10029 | 12 | Guide Pipe H | 63913 |
| 3-D | Nosepiece 4.8 | 10030 | 13 | Mandrel Collector | 63695 |
| 4 | Frame Head JM | 63727 | |||
| 5 | Jaw Case Head | 10116 | |||
| 6 | J1A | 10281 | |||
| 7 | Jaw Pusher @R | 61875 |

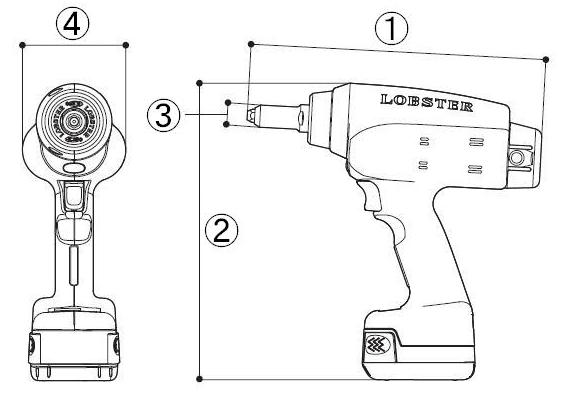

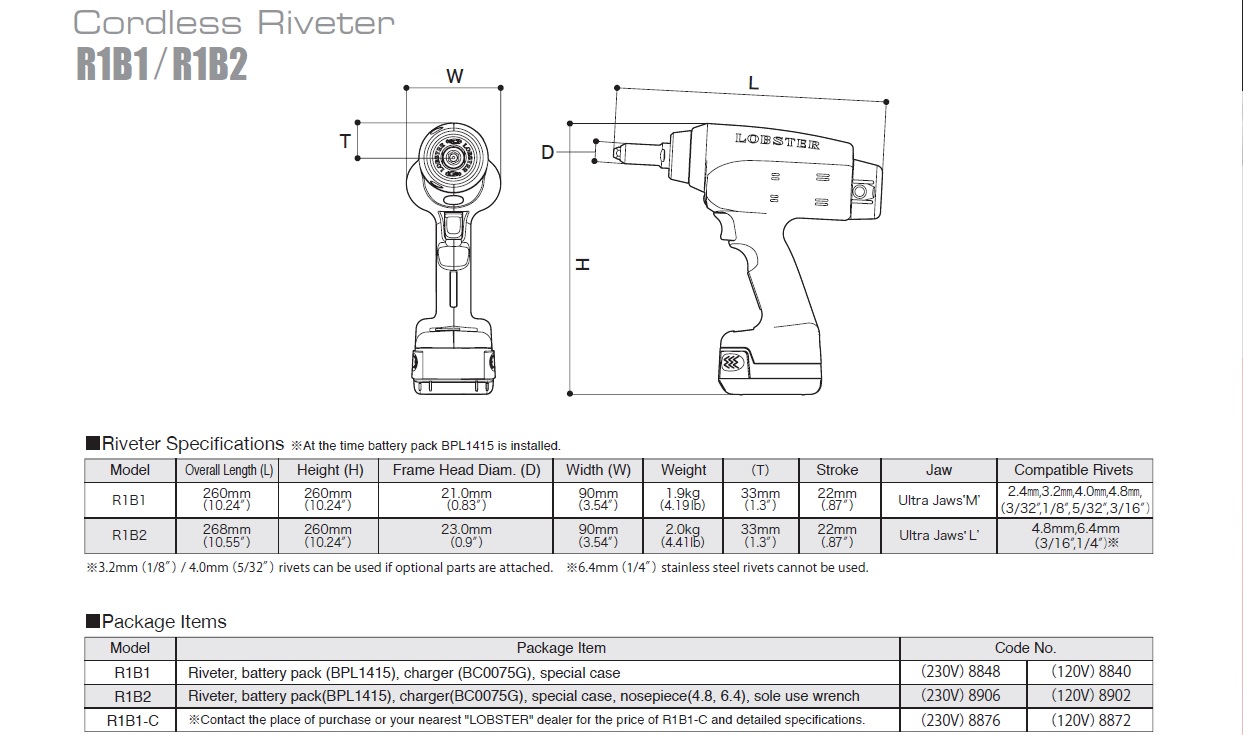

| Model No. | (Product) weight | size1 | size2 | size3 | size4 | Usage jaws | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1B1 | 1900g | 260mm | 260mm | φ19.5mm | 90mm | J1A | Compatible Rivets:All materials 2.4,3.2,4.0,and 4.8mm in diam |
