Lobster Hand Riveter

Code : HR200, HR300, HR302
Brand : Lobster

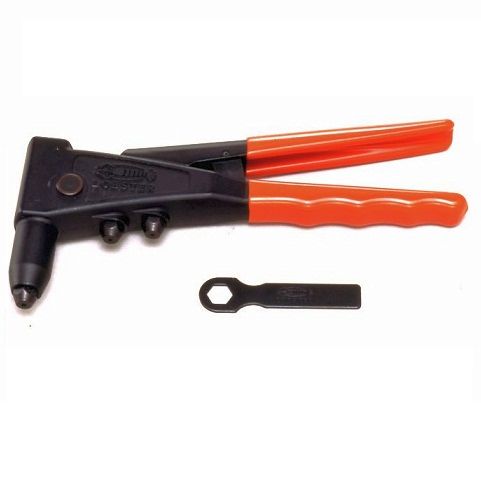

Hand Riveter HR200

Hand Riveter HR200

Floating Jawcase Mechanism



Use/Application





Specifications

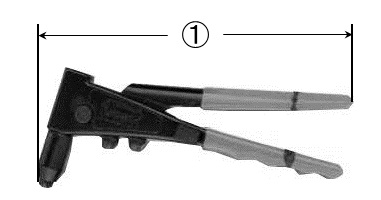

Hand Riveter HR200



Model No.    (Product) weight     size1     Remark
HR200   385g   200m   Sets rivets:2.4/3.2/4.0mm?.

?Can not be used with φ4.0mm stainless steel rivets.

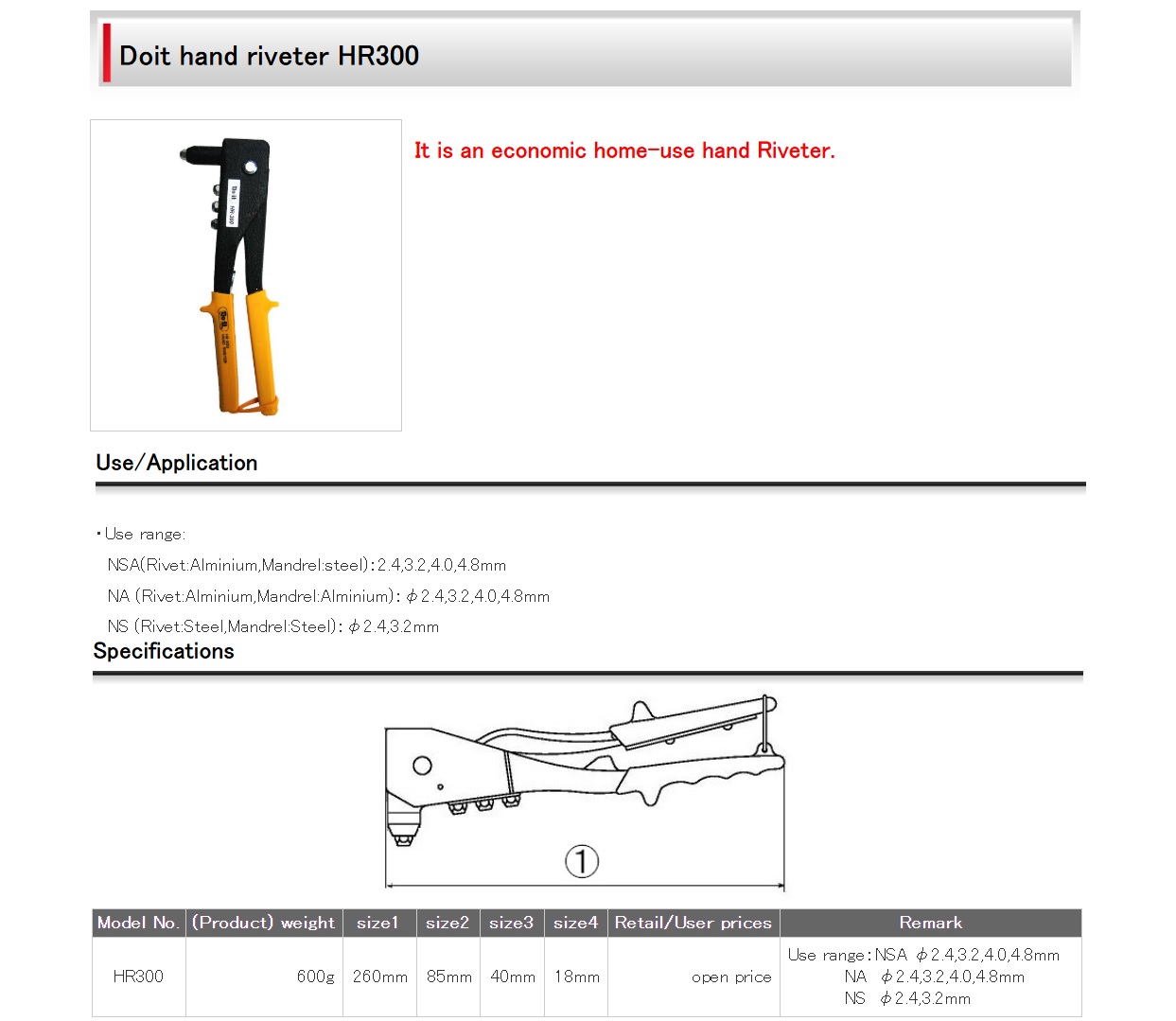

Hand Riveter HR300

Hand Riveter HR300

?It is an economic home-use hand Riveter.



Use/Application

Use range:NSA(Rivet:Alminium,Mandrel:steel) 2.4,3.2,4.0,4.8mm
NA (Rivet:Alminium,Mandrel:Alminium) φ2.4,3.2,4.0,4.8mm
NS (Rivet:Steel,Mandrel:Steel) φ2.4,3.2mm



Specifications

Hand Riveter HR300



Model No.    (Product) weight     size1      size2          size3     size4     Remark
HR300   600g   260mm   85mm   40mm   18mm   Use range:NSA φ2.4,3.2,4.0,4.8mm
NA φ2.4,3.2,4.0,4.8mm
NS φ2.4,3.2mm

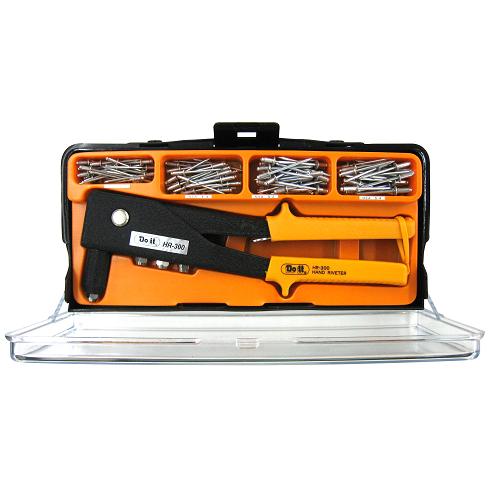

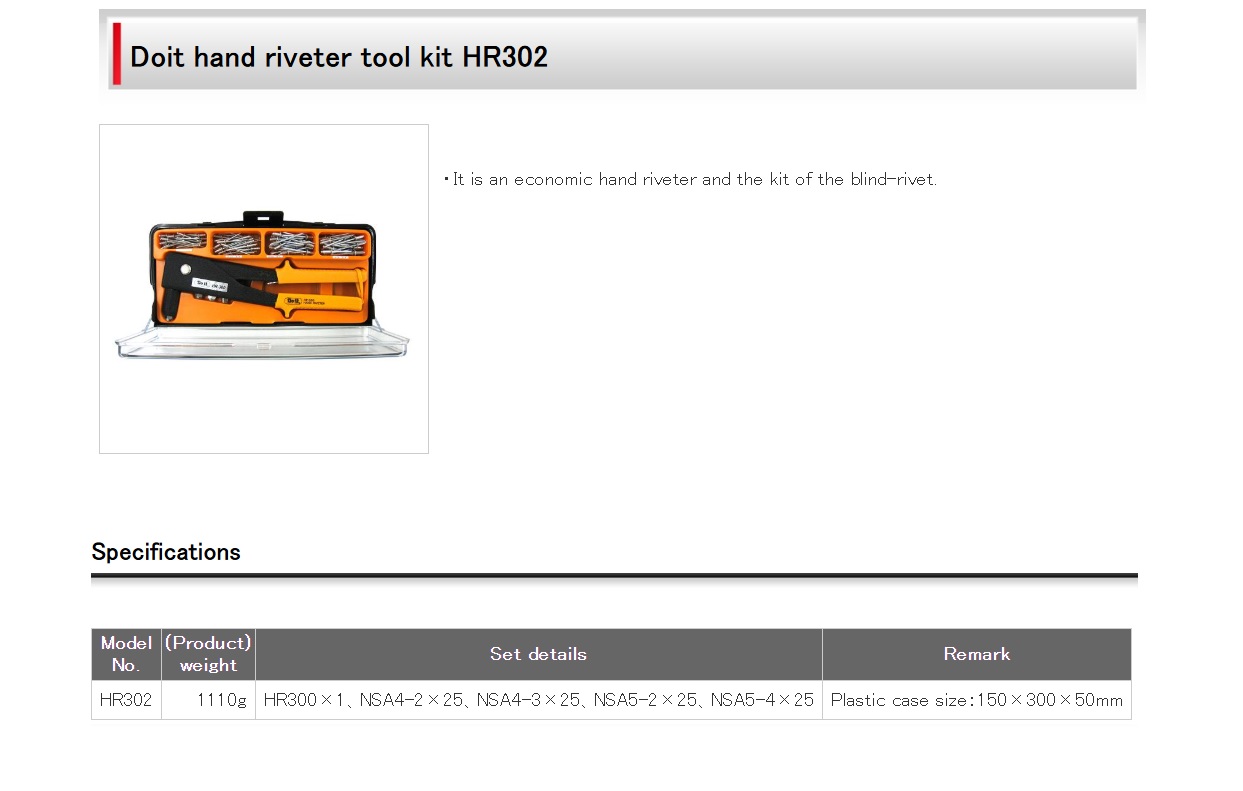

Hand Riveter HR302

Hand Riveter HR302



? It is an economic hand riveter and the kit of the blind-rivet.

Use/Application




Specifications


Model No.     (Product) weight      Set details     Remark
HR302   1110g   HR300×1?NSA4-2×25?NSA4-3×25?NSA5-2×25?NSA5-4×25   Plastic case size?150×300×50mm
