OBISHI CLINOTRONIC PLUS
Code : Stock No: 512P-1C, 512P-1C (AY101PC), 512P-3C (AY103PC), AY112, AY113, AY114, AY115, AY116, AY117
Brand : Obishi
OBISHI CLINOTRONIC PLUS
tock No: 512P-1RG - AY101PRG (512P-1RG), AY103PRG (512P-3RG), AY106PRG (512P-6RG), AY107PRG (512P-7RG), AY108PRG (512P-9RG)
Model: CLINOTRONIC PLUS

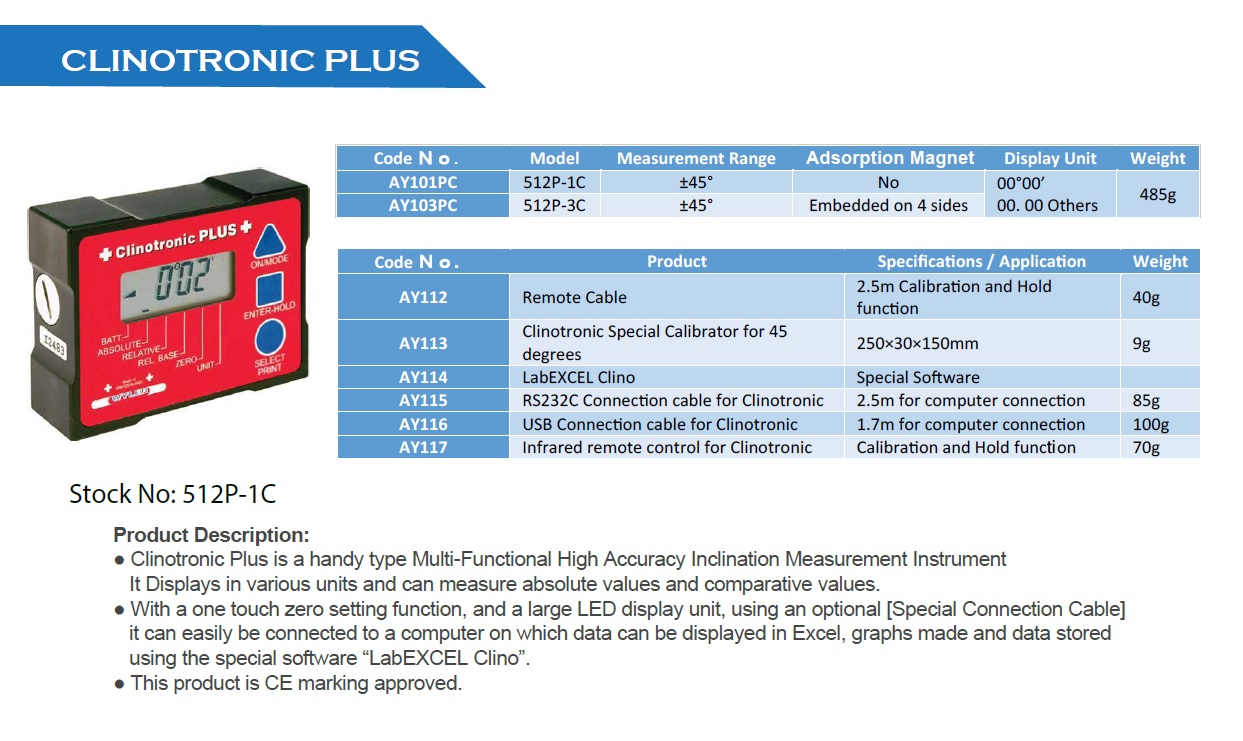

Stock No: 512P-1C
Product Description:
Clinotronic Plus is a handy type Multi-Functional High Accuracy Inclination Measurement Instrument
It Displays in various units and can measure absolute values and comparative values.
With a one touch zero setting function, and a large LED display unit, using an optional [Special Connection Cable] it can easily be connected to a computer on which data can be displayed in Excel, graphs made and data stored
using the special software “LabEXCEL Clino”.
•This product is CE marking approved.
|
 |
|
|
|
Multi-Functional High Accuracy Inclination Measurement Instrument
|
|
512P-1RG
Software Screen
Special Calibrator
|
|
Code ???
|
Model
|
Measurement Range
|
Adsorption Magnet
|
Display Unit
|
Weight
|
|
AY101PC
|
512P-1C
|
±45°
|
No
|
00°00’
00. 00 Others |
485g
|
|
AY103PC
|
512P-3C
|
±45°
|
Embedded on 4 sides
|
|
? Clinotronic Plus Specification
| Resolution |
Depends on the measurement unit |
| Accuracy |
±0°? ±10°1’?+1digit
±10°? ±30°1.5’?+1digit
±30°? ±45°2’?+1digit |
| Data Transmission |
RS485, Asynchronous 7 Data Bits, 2Stop Bits, no parity, 9600bps
Optional special connection cable can be used to connect with a computer |
| Battery Life |
In full operation |
Alkaline Cell Battery ?25 hours ??Note ? |
| Case Housing |
Hard Alumite Treatment |
100×75×30mm |
| Usage Temperature Range |
0??40? |
|
? All models come with a rigid highly portable plastic case.
? The 1 digit Accuracy depends on the selected display unit.
Note: Battery life is not guaranteed as this depends on the use environment.
? Special Software Specification ?Option ?
LabEXCEL Clino is special software for displaying Clinotronic Plus measurement values easily. Data obtained from continous measurement can be displayed on a computer, grapghs can be created using EXCEL and the data can be saved.
| Model |
LabEXCEL Clino |
| O?S |
Windws® Vista, 7 |
| Hard disk |
Required empty space 20MB and above |
| Supply Media |
CD-ROM |
|
? An environment in which Microsoft Excel 2003 is installed is required.
? Computer, printer USB cable and other peripherals are required separately.
? Excel , Windows® are trademarks of Microsoft Corporation in the USA and other countries.
? Special Calibrator ( Option )
Special Calibrator in which gauge pins of 5 degree pitch are embedded at ±50 degrees iterval. It is very convenient for placing the Clinotronic on the pin and performing calibration.
By using Infrared remote control (AY117) or a remote switch (AY112), calibration can be performed in a very short time.
Optional Parts
|
Code ???
|
Product
|
Specifications / Application
|
Weight
|
|
AY112
|
Remote Cable |
2.5m Calibration and Hold function
|
40g
|
|
AY113
|
Clinotronic Special Calibrator for 45 degrees |
250×30×150mm
|
9g
|
|
AY114
|
LabEXCEL Clino |
Special Software
|
|
|
AY115
|
RS232C Connection cable for Clinotronic |
2.5m for computer connection
|
85g
|
|
AY116
|
USB Connection cable for Clinotronic |
1.7m for computer connection
|
100g
|
|
AY117
|
Infrared remote control for Clinotronic |
Calibration and Hold function
|
70g
|
|
?Due to product improvement, specifications and appearance may change without notice.
?For more details, please see the product catalog. |
|
 |
