Code : PH-100A
Brand : Shimpo

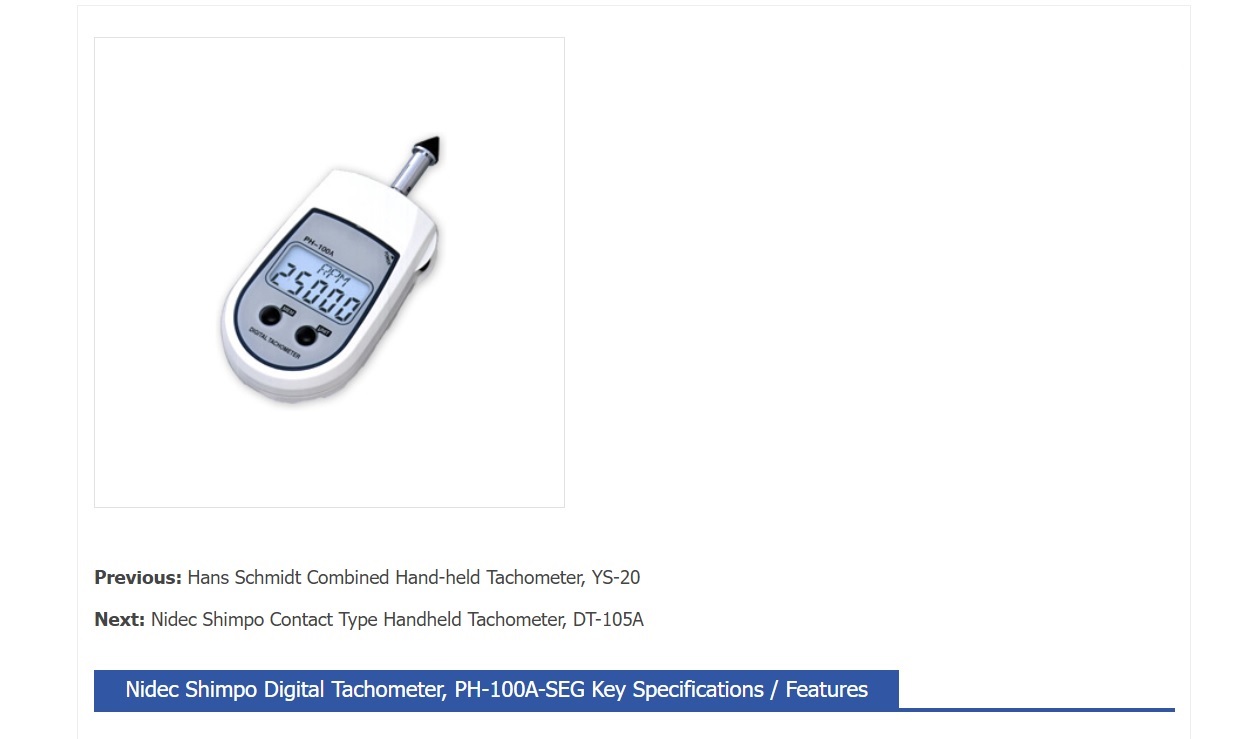

Shimpo Digital Tachometer, PH-100A-SEG Key Specifications / Features
-1.0~25,000rpm
- For rotational speed, surface -
For rotational speed, surface speed, length, total number of revolutions measurement
- Memory function
|

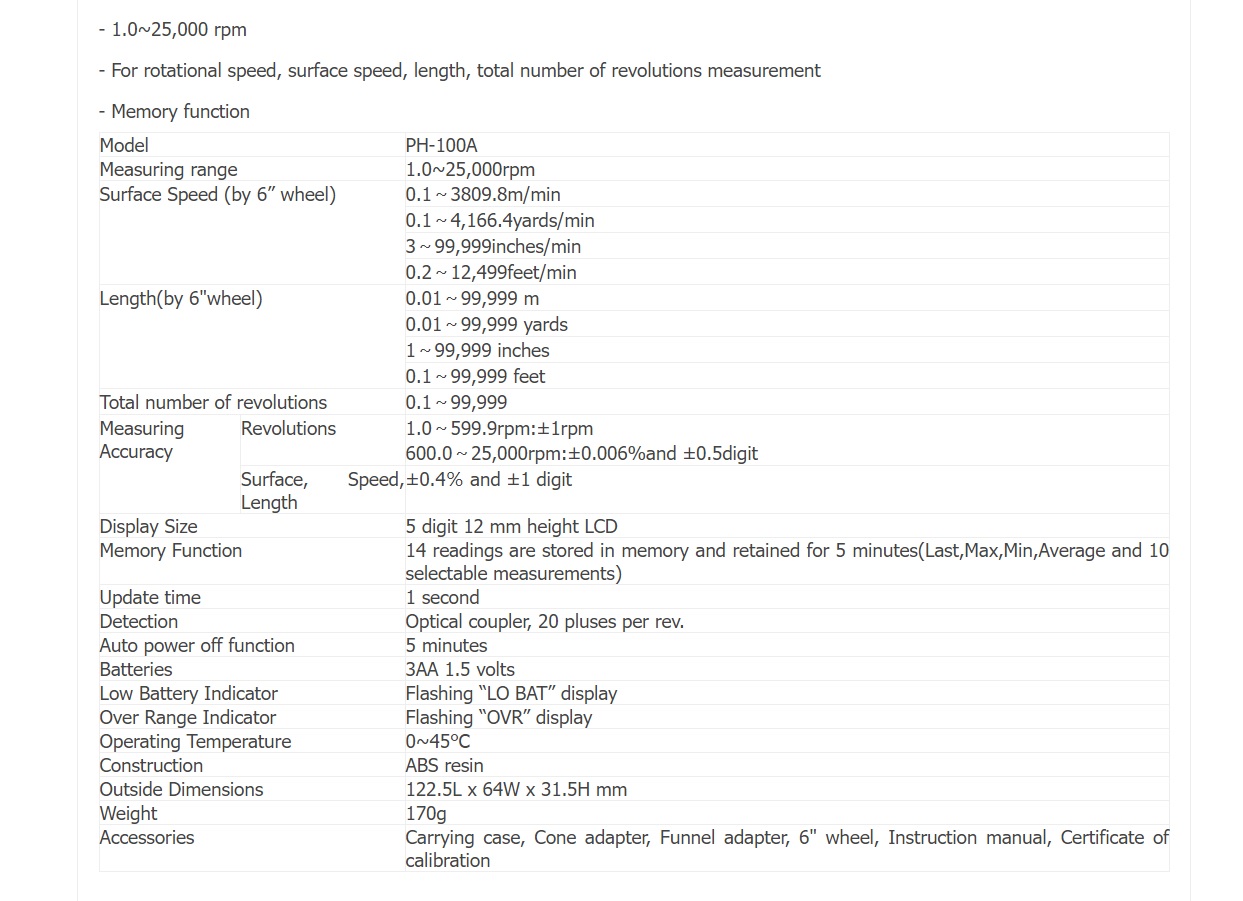

Model |
PH-100A-SEG |
|
|
Measuring range |
1.0~25,000rpm |
|
|
Surface Speed (by 6” wheel) |
0.1～3809.8m/min |
|
|
0.1～4,166.4yards/min |
||
|
3～99,999inches/min |
||
|
0.2～12,499feet/min |
||
|
Length(by 6"wheel) |
0.01～99,999 m |
|
|
0.01～99,999 yards |
||
|
1～99,999 inches |
||
|
0.1～99,999 feet |
||
|
Total number of revolutions |
0.1～99,999 |
|
|
Measuring Accuracy |
Revolutions |
1.0～599.9rpm:±1rpm |
|
Surface, Speed, Length |
±0.4％ and ±1 digit |
|
|
Display Size |
5 digit 12 mm height LCD |
|
|
Memory Function |
14 readings are stored in memory and retained for 5 minutes(Last,Max,Min,Average and 10 selectable measurements) |
|
|
Update time |
1 second |
|
|
Detection |
Optical coupler, 20 pluses per rev. |
|
|
Auto power off function |
5 minutes |
|
|
Batteries |
3AA 1.5 volts |
|
|
Low Battery Indicator |
Flashing “LO BAT” display |
|
|
Over Range Indicator |
Flashing “OVR” display |
|
|
Operating Temperature |
0~45℃ |
|
|
Construction |
ABS resin |
|
|
Outside Dimensions |
122.5L x 64W x 31.5H mm |
|
|
Weight |
170g |
|
|
Accessories |
Carrying case, Cone adapter, Funnel adapter, 6" wheel, Instruction manual, Certificate of calibration |
|
|
|
|
|
