Obishi Sine Base with Centers

Code : Stock No: 310 - Code No. NJ101
Brand : Obishi

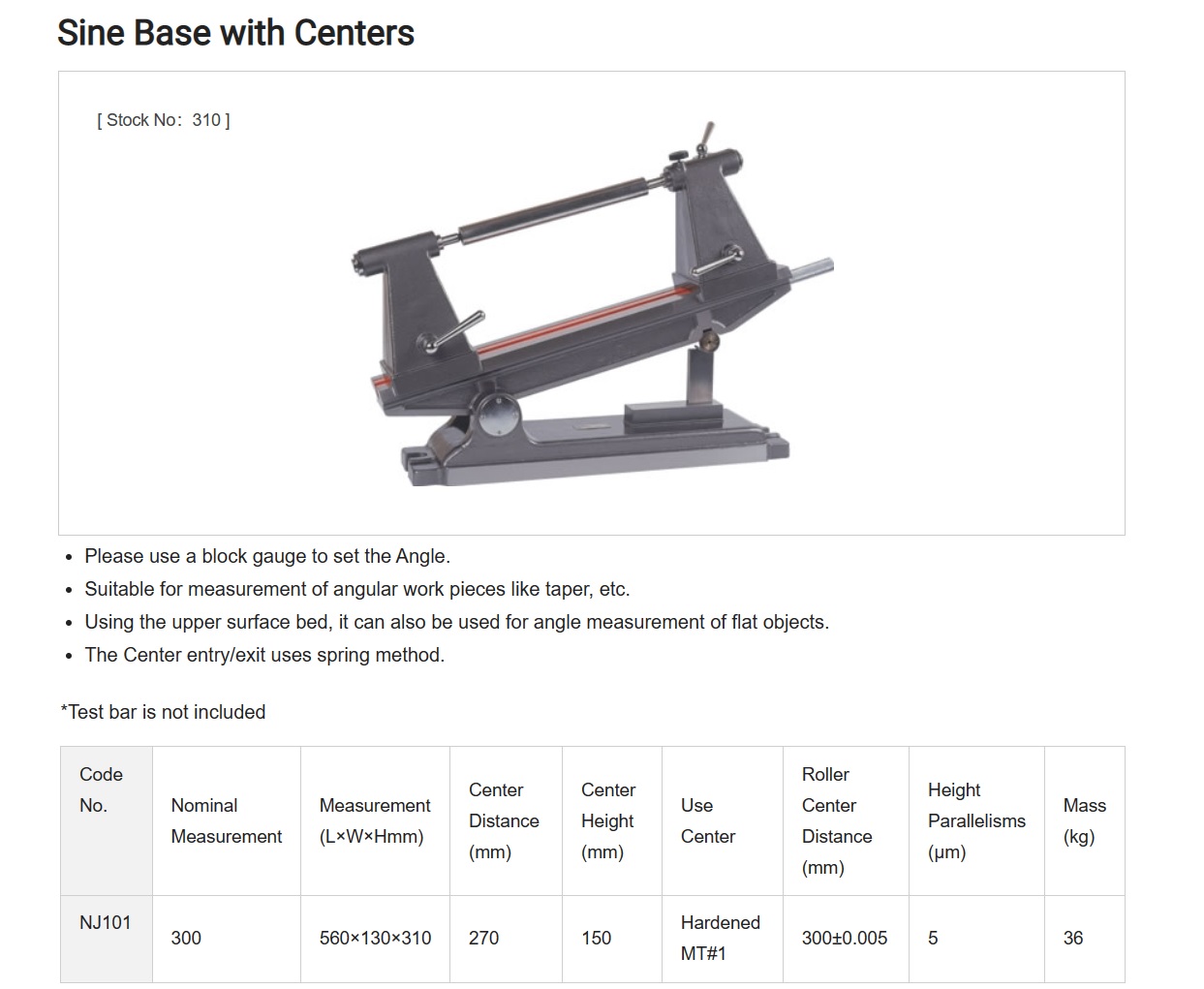

Obishi Sine Base with Centers

Stock No: 310 - Code No. NJ101

Sine Base with Centers Manufactured by Obishi Keiki Seisakusho in Japan

Model: SINE BASE WITH CENTERS

Stock No: 310

Product Description:

  •
    • Please use a block gauge to set the Angle.
    • Suitable for measurment of angular work pieces like taper, etc.
    • Using the upper surface bed, it can also be used for angle measurement of flat objects.
    • The Center entry/exit uses spring method.

?Test bar is not included

Code No. Nominal
Measurement
Measurement
(L×W×Hmm)
Center Distance
(mm)
Center Height(mm) Use Center Roller
Center Distance
(mm)
Height
Parallellism
(μm)
Weight
(kg)
NJ101 300 560×130×310 270 150 Hardened MT#1 300±0.005 5
